Flexible Coupling

Cangzhou Tanso Coupling Co., Ltd.
Flexible Coupling thumbnail-1
Flexible Coupling photo-1
US$ 1 - 100 MOQ: 1 Set
Key Specifications
Get Latest Price
Structure:
Metal Bellows
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Metal Bellows
Flexible or Rigid Flexible
Standard or Nonstandard Standard
Material Stainless Steel
Brand Name TS
Place of Origin Hebei, China
Model Number TS4

flexible coupling.

This Product is radial beam type flexible coupling that is made of high strength aluminum alloy (Al7075-T6)
and one-piece structure.

* Zero backlash
* Complete absorption of eccentricity, angularity, and end-play by
* spring action of radial beam structure.
* High strength aluminum alloy (Al 7075-T6) makes high torsion
* rigidity and torque, and products are available in aluminum
* alloy and stainless steel.
* It can be used in high RPM by accurate concentricity and low
* inertia moment.
* Regular direction and reverse direction are identical and no
* repair is necessary.
* Excellent durability and oil and chemical resistance

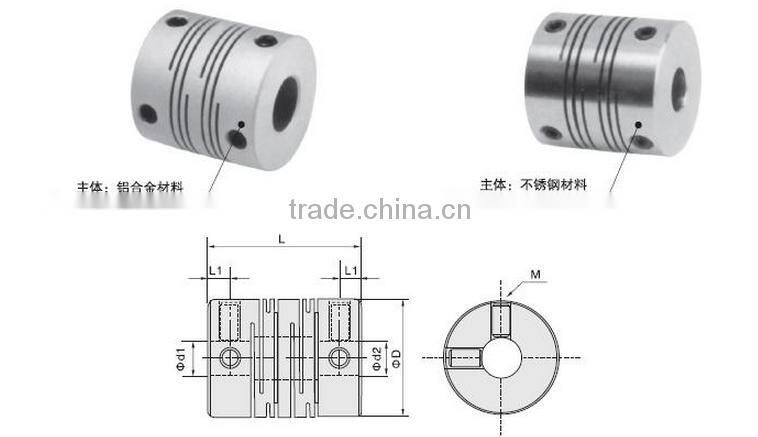

Model

Φ d1Φd2
Bore diameter

ΦD

L

L1

M

Wrench Torque
N·m

TS4-M15
STS4-M15

3 4 5

15.5

21

2.6

M3

0.7

TS4-15
STS4-15

3 4 5

15.5

23

3.1

M3

0.7

TS4-17
STS4-17

4 5 6

17.5

23

3.1

M3

0.7

TS4-19
STS4-19

5 6 6.35 8

19.5

24.5

3.5

M4

1.5

TS4-25
STS4-25

7 10
8 10

25.4

25.4

3.55

M4

1.7

TS4-28
STS4-28

6 8
10 12.7

28.6

28.6

3.60

M5

1.7

TS4-38
STS4-38

8 10 12
12.7 14 15

38.1

38.1

4.15

M5

3.8

TS4-50
STS4-50

12 12.7 14
15 16 19

50.8

50.8

5.25

M6

4.0



Model

Rated Torque
(N·m)

Max.Torque
(N·m)

Max.Rotational Frequency
(rpm)

Moment of inertia
kg·m2

Static Torsioral Stiffness
N m/rad

Parallel misalignment
mm

Angular misalignment

Axial misalignment
mm

Mass
g

TS4-M15

0.2

0.4

13000

3.0×10-3

35

0.1

1.5

±0.15

10

TS4-15

0.2

0.4

13000

3.2×10-3

36

0.1

1.5

±0.15

10

TS4-17

0.3

0.6

12000

6.1×10-3

65

0.1

1.5

±0.25

12

TS4-19

0.4

0.8

10000

8.5×10-3

100

0.1

1.5

±0.25

14

STS4-M15

0.3

0.6

13000

8.7×10-3

70

0.1

1.5

±0.15

28

STS4-15

0.3

0.6

13000

8.9×10-3

72

0.1

1.5

±0.15

30

STS4-17

0.4

0.8

12000

1.5×10-3

180

0.1

1.5

±0.25

34

STS4-19

0.9

1.8

10000

2.0×10-3

205

0.1

1.5

±0.25

40

TS4-25

1.2

2.4

10000

2.6×10-3

170

0.1

1.5

±0.15

26

TS4-28

1.6

3.2

8000

4.9×10-3

260

0.1

1.5

±0.15

42

TS4-38

4.2

8.4

8000

1.9×10-3

330

0.15

1.5

±0.15

76

TS4-50

9.0

18.0

6000

8.9×10-3

560

0.15

1.5

±0.15

128

STS4-25

2.2

4.4

10000

6.8×10-3

320

0.1

1.5

±0.15

74

STS4-28

3.1

6.2

8000

2.22×10-3

790

0.1

1.5

±0.15

118

STS4-38

7.5

15.0

8000

8.2×10-3

980

0.15

1.5

±0.15

212

STS4-50

14.0

28.0

6000

2.1×10-3

1450

0.15

1.5

±0.15

358
