US$ 1 - 100 MOQ: 1 Set
Key Specifications
Get Latest Price
Structure:
Jaw / Spider
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.
Structure Jaw / Spider
Flexible or Rigid Flexible
Standard or Nonstandard Standard
Material Aluminium
Brand Name Tanso
Place of Origin Hebei, China
Model Number TS-P

flexible coupling .



A jaw coupling is a type of general purpose power transmission coupling that also can be used in motion control (servo) applications. It is designed to transmit torque (by connecting two shafts) while damping system vibrations and accommodating misalignment, which protects other components from damage. Jaw couplings are composed of three parts: two metallic hubs and an elastomer insert called an element, but commonly referred to as a "spider". The three parts press fit together with a jaw from each hub fitted alternately with the lobes of the spider. Jaw coupling torque is transmitted through the elastomer lobes in compression.

The elastomer of the spider can be made in different materials and hardness, which allows the user to customize the coupling to best serve their application. Considerations for elastomer selection include ability to dampen vibration, ability to handle misalignment, operational temperature range, speed of equipment, and chemical conditions.

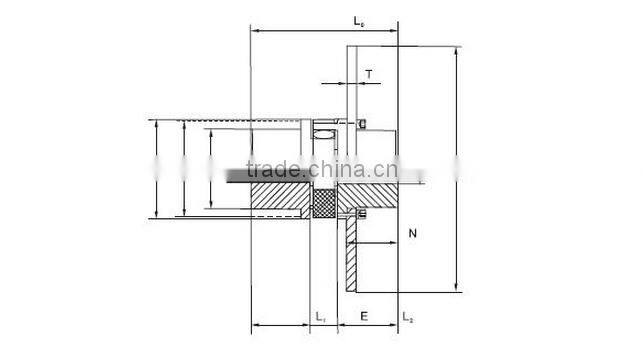

Features of TS-P flexible jaw coupling:

1.Have all the characteristics of the basic model TS-A

2.Apply to occasion with the disc brake package.
