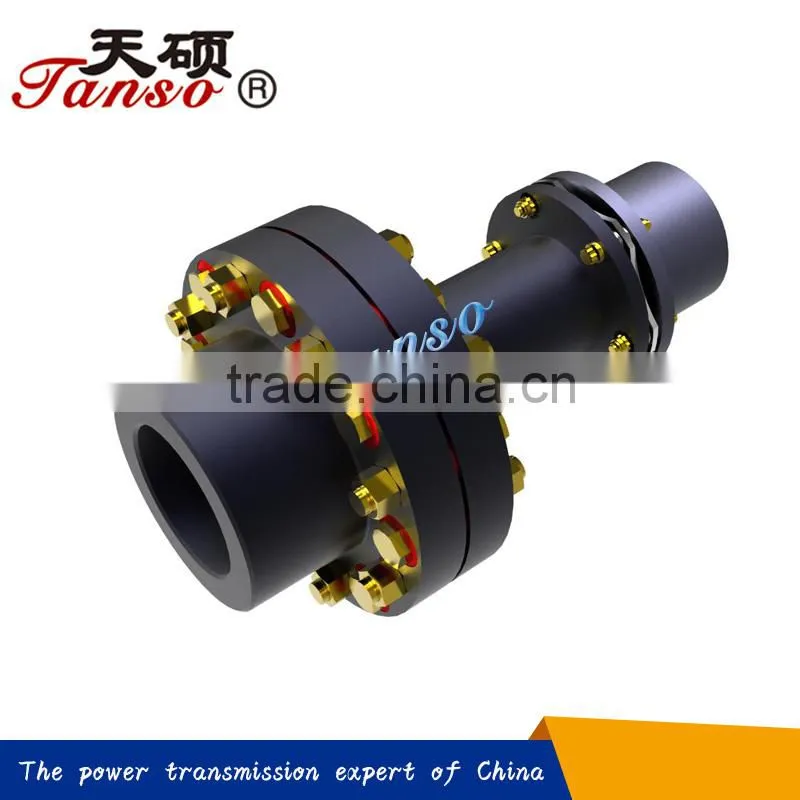

Help CenterTATL High Speed Disc Coupling
Related Products
-
TARS High Speed Diaphragm CouplingUS$ 400 - 2,000MOQ: 1 Set -
Tanso TAL Series High Speed Disc CouplingUS$ 2.5 - 30MOQ: 1 Piece
-
Tanso TAG Series High Speed Large Torque Diaphragm CouplingUS$ 1 - 200MOQ: 1 Set
-
Tanso TAR Series High Torsional Diaphragm CouplingsUS$ 2.5 - 30MOQ: 1 Piece
-
Tanso TAF Series Hotsell Diaphragm Coupling/disc Coupling/coupling ManufacturerUS$ 10 - 900MOQ: 1 Set
Disc coupling: by definition, transmits torque from a driving to a driven bolt tangentially on a common bolt circle. Torque is transmitted between the bolts through a series of thin, stainless steel discs assembled in a pack. Misalignment is accomplished by deforming of the material between the bolts.
A disc coupling is a high performance motion control (Servo) coupling designed to be the torque transmitting element (by connecting two shafts together) while accommodating for shaft misalignment. It is designed to be flexible, while remaining torsionally strong under high torque loads. Typically, disc couplings can handle speeds up to 10,000 RPM.
Advantages of disc coupling
1. Eliminates the need for lubrication and coupling maintenance
2. Coupling can be inspected without disassembly
3. Condition of disc packs can be inspected with a strobe light while the machine is running
4. Note: It is not recommended that couplings be operated without coupling guards.
5. Easy to assess equipment misalignment
6. Torsionally rigid without any backlash
7. No wearing parts
8. Resistance to harsh environments
9. Long life when properly sized and aligned
10. High power density (higher torque for a given outside diameter)
