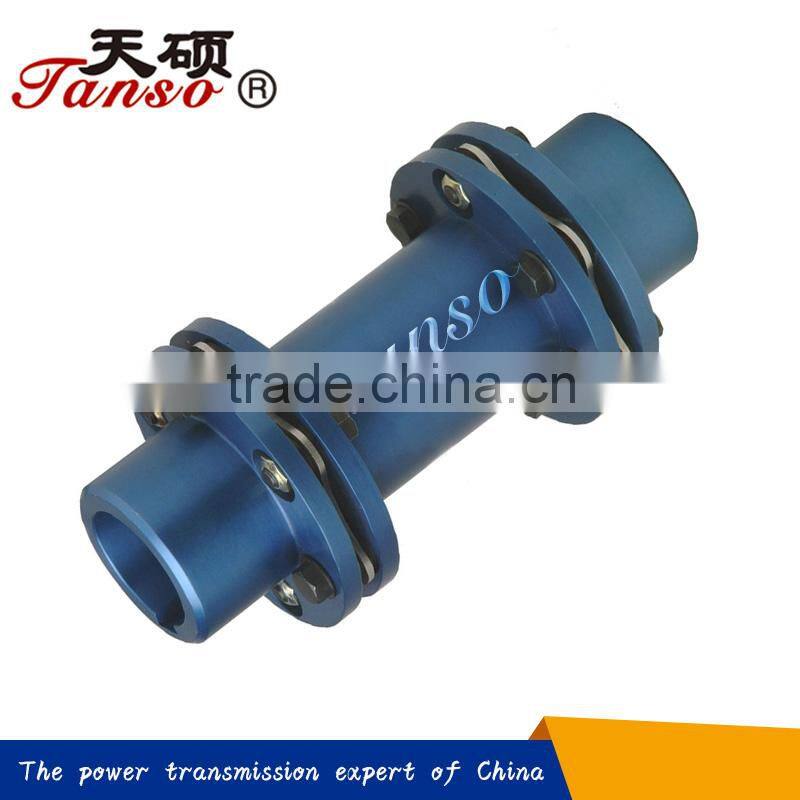

Tanso Flexible Double Disc Coupling

Tanso Flexible Double Disc Coupling thumbnail-1
Tanso Flexible Double Disc Coupling photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Structure:
Disc
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Contact Supplier Request Quote Chat Now
Cangzhou Tanso Coupling Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Disc
Flexible or Rigid Flexible
Standard or Nonstandard Standard
Material Steel
Brand Name Tanso
Place of Origin Hebei, China
Model Number JMIJ

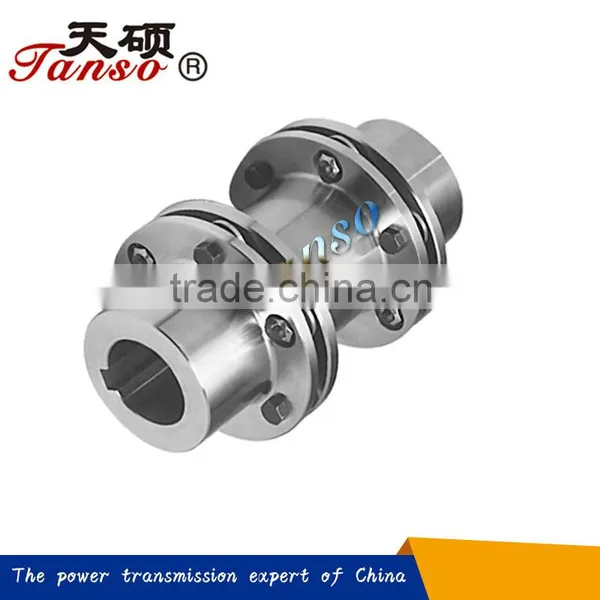

Tanso flexible Double Disc couplingIntroductiong of disc coupling:

Disc coupling: by definition, transmits torque from a driving to a driven bolt tangentially on a common bolt circle. Torque is transmitted between the bolts through a series of thin, stainless steel discs assembled in a pack. Misalignment is accomplished by deforming of the material between the bolts.

A disc coupling is a high performance motion control (Servo) coupling designed to be the torque transmitting element (by connecting two shafts together) while accommodating for shaft misalignment. It is designed to be flexible, while remaining torsionally strong under high torque loads. Typically, disc couplings can handle speeds up to 10,000 RPM.

disc couplings :


Tn /N.m		 Tmax
/N.m
[n]
/r.min -1		 d(H 7 )   D t L2 I/kg.m 2 ≈ m/kg ≈
Y JJ1ZZ1 L
L L L1
JMIJ1 25 80 6000 14 32 - J1 27 Z1 20 35 90 8.8 100 0.0013 1.8
161819 42 30
2022   38
JMIJ2 63 180 5000 1819 42 - 30 45 100 9.5 100 0.002 2.4
202224 52 38
25 62 44
JMIJ3 100 315 5000 202224 52 - 38 50 120 11 120 0.0047 4.1
2528 62 44
30 82 60
JMIJ4 160 500 4500 24 52 - 38 55 130 12.5 120 0.0069 5.4
2528 62 44
303235 82 60
JMIJ5 250 710 4000 28 62 - 44 60 150 14 140 0.0153 8.8
30323538 82 60
40 112 84
JMIJ6 400 1120 3600 323538 82 82 60 65 170 15.5 140 0.0281 13.4
4042454850 112 - 84
JMIJ7 630 1800 3000 4042 112 112 84 70 210 19 150 0.076 22.3
4548505556
60 142 107
JMIJ8 1000 2500 2800 4548 112 112 84 80 240 22.5 180 0.1602 36
505556
60636570 142 107
JMIJ9 1600 4000 2500 5556 112 112 84 85 260 24 220 0.2509 48
606365707175 142   107
80 172 132
JMIJ10 2500 6300 2000 6365707175 142 142 107 90 280 17 250 0.5195 85
80859095 172 - 132
JMIJ11 4000 9000 1800 75 142 142 107 95 300 19.5 290 0.8223 112
80859095 172 172 132
100110 212 - 167
JMIJ12 6300 12500 1600 9095 172   132 120 340 23 300 1.4109 152
