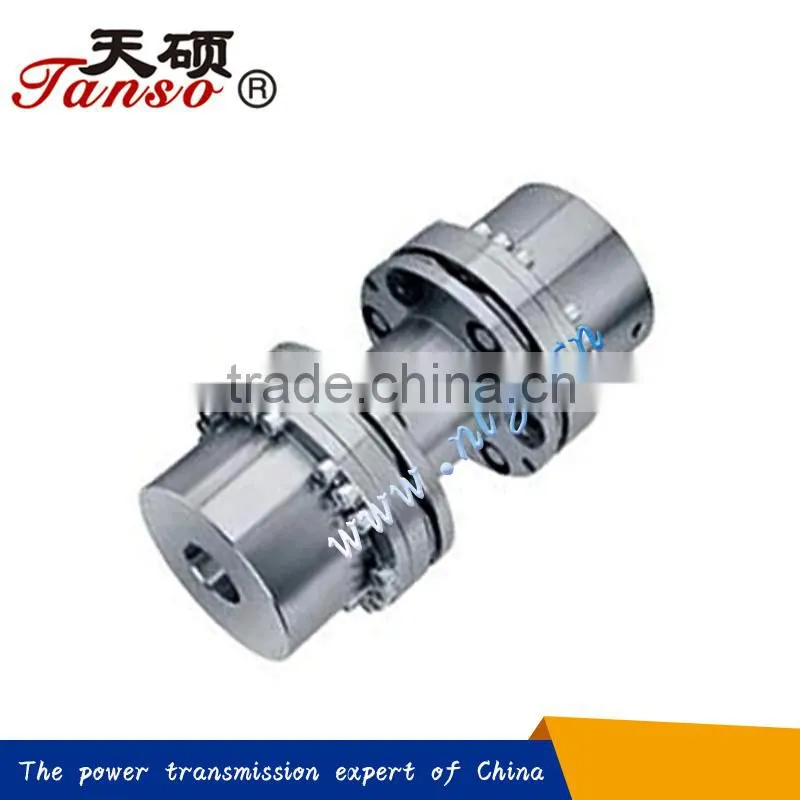

Double Diaphragm Flexible Couplings
US$ 25 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Structure:
Disc
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Structure
Disc
Flexible or Rigid
Flexible
Standard or Nonstandard
Standard
Material
Steel
Brand Name
Tanso
Place of Origin
Hebei, China
Model Number
SJM
Advantages of disc coupling
1. Eliminates the need for lubrication and coupling maintenance
2. Coupling can be inspected without disassembly
3. Condition of disc packs can be inspected with a strobe light while the machine is running
4. Note: It is not recommended that couplings be operated without coupling guards.
5. Easy to assess equipment misalignment
6. Torsionally rigid without any backlash
7. No wearing parts
8. Resistance to harsh environments
9. Long life when properly sized and aligned
10. High power density (higher torque for a given outside diameter)
double disk couplings :
| (N.m) | (r/min) | (mm) | |||||||
| d1, d2 | D | L | ømax | A | C | L0 | |||
| 01 | 33 | 20000 | 19-31 | 68 | 45 | 72 | 6.1 | 89 | 179 |
| 02 | 90 | 20000 | 19-31 | 81 | 45 | 72 | 6.6 | 89 | 179 |
| 03 | 173 | 18000 | 19-42 | 93 | 56 | 100 | 8.4 | 102 | 214 |
| 04 | 245 | 15000 | 20-48 | 104 | 63 | 100 | 11.2 | 127 | 253 |
| 05 | 420 | 13000 | 20-60 | 128 | 70 | 115 | 11.7 | 127 | 267 |
| 06 | 772 | 12000 | 30-70 | 143 | 75 | 155 | 11.7 | 127 | 277 |
| 07 | 1270 | 10000 | 30-80 | 168 | 98 | 170 | 14.0 | 127 | 323 |
| 08 | 2080 | 10000 | 30-85 | 200 | 98 | 185 | 15.0 | 140 | 336 |
| 09 | 3328 | 9000 | 35-95 | 215 | 98 | 215 | 21.0 | 152 | 348 |
| 10 | 4900 | 8000 | 40-105 | 246 | 110 | 230 | 22.6 | 178 | 398 |
| 11 | 6368 | 6300 | 45-115 | 276 | 110 | 263 | 23.8 | 178 | 398 |
| 12 | 8900 | 6300 | 50-115 | 276 | 110 | 263 | 17.5 | 153 | 373 |
