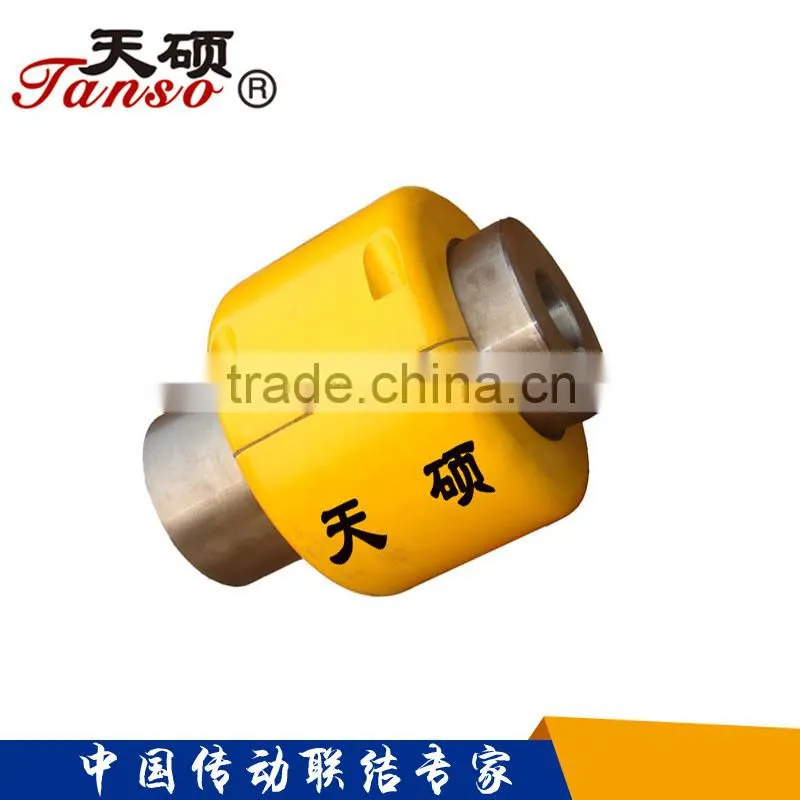

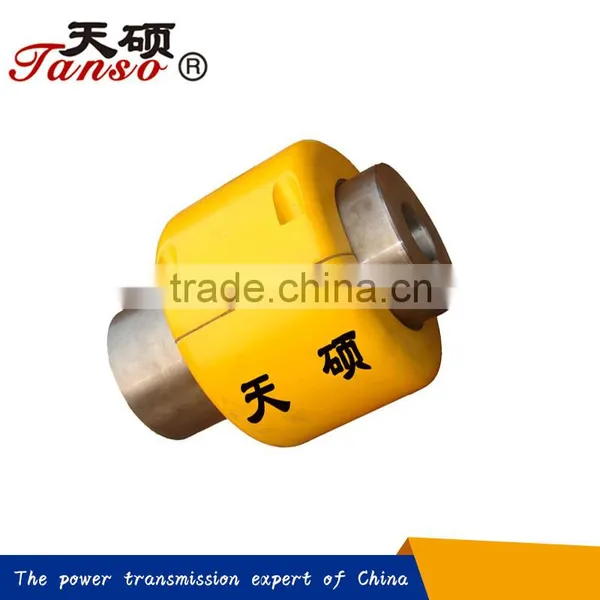

Home > Industrial Equipment & Components > Power Transmission Parts > Shaft Coupling > KC Roller Chain Flexible Coupling
US$ 60 - 200
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Structure:
Roller Chain
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Roller Chain CouplingUS$ 1.9 - 99MOQ: 1 Piece -
KC Roller Chain CouplingUS$ 3 - 10MOQ: 1 Piece
-
KC Roller Chain CouplingUS$ 1 - 100MOQ: 5 Sets
-
KC Chain Coupling/CR Roller Chain Coupling With Cover/chain Coupling ManufacturerUS$ 3 - 100MOQ: 1 Set
-
Kc-4012 Roller Chain CouplingUS$ 50 - 200MOQ: 5 Pieces
Structure
Roller Chain
Flexible or Rigid
Flexible
Standard or Nonstandard
Standard
Material
Steel
Brand Name
TANSO
Place of Origin
Hebei, China
Model Number
KC
Catalog | applicable range of shaft | pilot | A | d | o | L | I | S | B | C | Max anglar (degree) | Bolt | Max Torque (Nm) | Max revolution (rpm) | Moment of inertia (kg.c | Requrie amount of grease(kg) | G(kg) |
| KC-3012 KC-4012 KC-4014 KC-4016 KC-5014 | 12-16 | 12 | 69 | 25 | 45 | 64.8 | 29.8 | 5.2 | 63 | 10.2 | 1° | M6 | 190 | 500 | 3.7 | 0.1 | 0.4 |
| 12-22 | 12 | 77 | 33 | 62 | 79.4 | 36 | 7.4 | 72 | 14.4 | M6 | 249 | 480 | 5.5 | 0.1 | 0.8 | ||
| 12-28 | 12 | 84 | 43 | 69 | 79.4 | 36 | 7.4 | 75 | 14.4 | M6 | 329 | 480 | 9.7 | 0.13 | 1.1 | ||
| 14-32 | 14 | 92 | 48 | 77 | 87.4 | 40 | 7.4 | 75 | 14.4 | M6 | 419 | 480 | 14.4 | 0.17 | 1.4 | ||
| 15-35 | 14 | 101 | 53 | 86 | 99.7 | 45 | 9.7 | 85 | 18.1 | M8 | 620 | 360 | 28 | 0.22 | 2.2 | ||
| KC-5016 | 16-40 | 16 | 111 | 60 | 93 | 99.7 | 45 | 9.7 | 85 | 18.1 | 1° | M8 | 791 | 3600 | 37 | 0.26 | 2.7 |
| KC-5018 | 16-45 | 16 | 122 | 70 | 106 | 99.7 | 45 | 9.7 | 85 | 18.1 | M8 | 979 | 3000 | 56.3 | 0.36 | 3.8 | |
| KC-6018 | 20-56 | 20 | 142 | 85 | 127 | 123.5 | 56 | 11.5 | 105 | 22.8 | M10 | 1810 | 2500 | 137.3 | 0.5 | 6.2 | |
| KC-6020 | 20-60 | 20 | 158 | 98 | 139 | 123.5 | 56 | 11.5 | 105 | 22.8 | M10 | 2210 | 2500 | 210.2 | 0.6 | 7.8 | |
| KC-6022 | 20-71 | 20 | 168 | 110 | 151 | 123.5 | 56 | 11.5 | 117 | 22.8 | M10 | 2610 | 2500 | 295 | 0.7 | 10.4 | |
| KC-8018 | 20-80 | 20 | 190 | 110 | 169 | 141.2 | 63 | 15.2 | 129 | 29.3 | 1° | M12 | 3932 | 2000 | 520 | 0.9 | 12.7 |
| KC-8020 | 20-90 | 20 | 210 | 121 | 185 | 145.2 | 65 | 15.2 | 137 | 29.3 | M12 | 4800 | 2000 | 812.4 | 1.1 | 16 | |
| KC-8022 | 20-100 | 20 | 226 | 140 | 202 | 157.2 | 71 | 15.2 | 137 | 29.3 | M12 | 5640 | 1800 | 1110 | 1.2 | 20.2 | |
| KC-10020 | 25-110 | 25 | 281 | 160 | 233 | 178.8 | 80 | 18.8 | 153 | 35.8 | M12 | 8400 | 1800 | 2440 | 1.8 | 33 | |
| KC-12018 | 35-125 | 35 | 307 | 170 | 256 | 202.7 | 90 | 22.7 | 181 | 45.4 | M12 | 12700 | 1500 | 3940 | 3.2 | 47 | |
| KC-12022 | 35-140 | 35 | 357 | 210 | 304 | 222.7 | 100 | 22.7 | 181 | 45.4 | M12 | 18300 | 1250 | 7810 | 4.4 | 72 | |
| KC-16018 | 63-160 | 53 | 375 | 228 | 340 | 254.1 | 112 | 30.1 | 240 | 58.5 | M16 | 26400 | 1100 | 14530 | 7.2 | 108 | |
| KC-16022 | 80-200 | 70 | 440 | 279 | 405 | 310 | 140 | 30.1 | 245 | 58.5 | M16 | 38100 | 1000 | 32220 | 9.9 | 187 | |
| KC-20018 | 80-205 | 75 | 465 | 289 | 425 | 437.5 | 200 | 37.5 | 285 | 71.6 | M20 | 54100 | 800 | 50980 | 11.8 | 286 | |
| KC-20022 | 100-255 | 90 | 545 | 363 | 526 | 477.5 | 220 | 37.5 | 300 | 71.6 | M20 | 77800 | 600 | 111100 | 15.8 | 440 | |
| KC-24022 | 120-310 | 110 | 650 | 448 | 607 | 650 | 302.5 | 45 | 340 | 87.8 | M20 | 137000 | 600 | 310000 | 21.9 | 869 | |
| KC-24026 | 150-360 | 140 | 745 | 526 | 704 | 700 | 327.5 | 45 | 350 | 87.8 | M20 | 186000 | 500 | 598500 | 28.1 | 1260 |

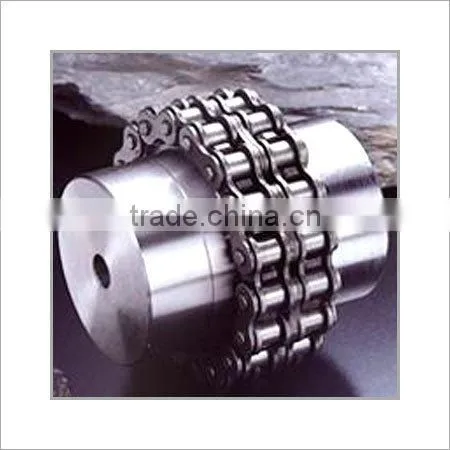

roller chain coupling
