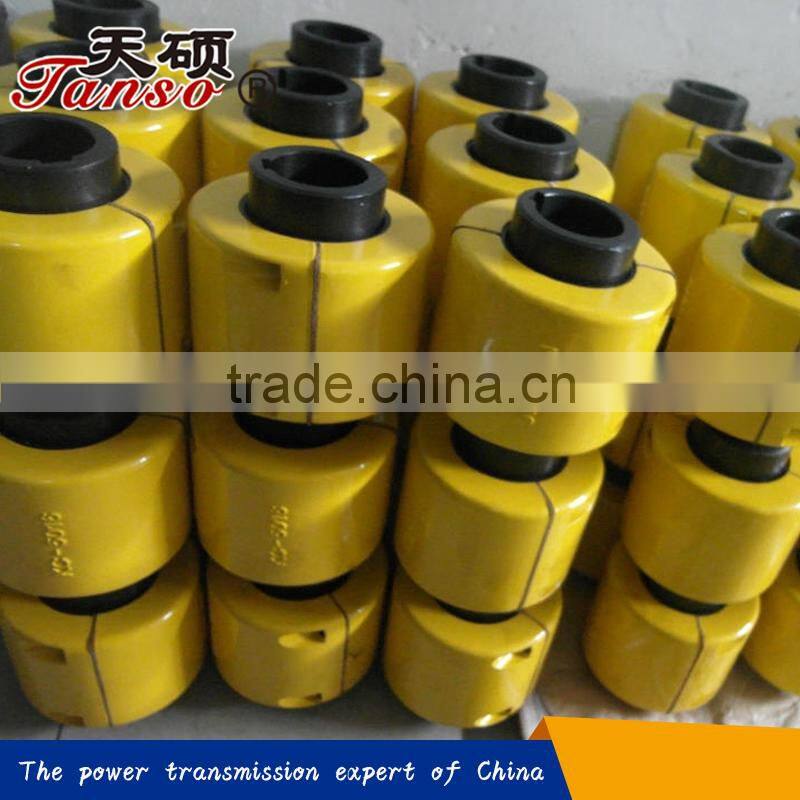

Roller Chain Flexible Coupling/KC Series Roller Coupling Chain/sprockets Tooth Hardened
US$ 60 - 200
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Structure:
Roller Chain
Flexible or Rigid:
Rigid
Standard or Nonstandard:
Standard
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Structure
Roller Chain
Flexible or Rigid
Rigid
Standard or Nonstandard
Standard
Material
Steel
Brand Name
tanso
Place of Origin
Hebei, China
Model Number
KC/GL

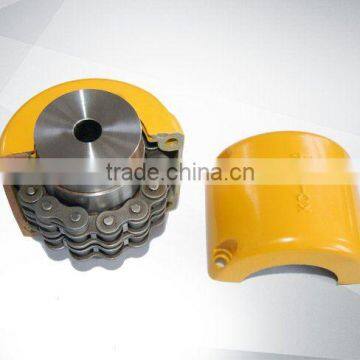

Roller chain coupling consists of a common chain ,two side by side sprockets which have the same number of teeth and a cover.There are following types of roller chain coupling:double roller chain coupling,single roller chain coupling,toothed chain coupling,nylon chain coupling,etc.Double roller chain coupling structure is superior to other types of couplings and widely used.
Features of roller chain coupling:
1.Simple structure,easy essembly and disessembly.
2.Light weight,and long service life
3.Have a certain ability to compensate for installation less precision
4.Suitable for high temperature,wet and dusty industrial environment
5.Can not for high speed,violent vibration
Catalog | applicable range of shaft | pilot | A | d | o | L | I | S | B | C | Max anglar (degree) | Bolt | Max Torque (Nm) | Max revolution (rpm) | Moment of inertia (kg.c | Requrie amount of grease(kg) | G(kg) |
| KC-3012 KC-4012 KC-4014 KC-4016 KC-5014 | 12-16 | 12 | 69 | 25 | 45 | 64.8 | 29.8 | 5.2 | 63 | 10.2 | 1° | M6 | 190 | 500 | 3.7 | 0.1 | 0.4 |
| 12-22 | 12 | 77 | 33 | 62 | 79.4 | 36 | 7.4 | 72 | 14.4 | M6 | 249 | 480 | 5.5 | 0.1 | 0.8 | ||
| 12-28 | 12 | 84 | 43 | 69 | 79.4 | 36 | 7.4 | 75 | 14.4 | M6 | 329 | 480 | 9.7 | 0.13 | 1.1 | ||
| 14-32 | 14 | 92 | 48 | 77 | 87.4 | 40 | 7.4 | 75 | 14.4 | M6 | 419 | 480 | 14.4 | 0.17 | 1.4 | ||
| 15-35 | 14 | 101 | 53 | 86 | 99.7 | 45 | 9.7 | 85 | 18.1 | M8 | 620 | 360 | 28 | 0.22 | 2.2 | ||
| KC-5016 | 16-40 | 16 | 111 | 60 | 93 | 99.7 | 45 | 9.7 | 85 | 18.1 | 1° | M8 | 791 | 3600 | 37 | 0.26 | 2.7 |
| KC-5018 | 16-45 | 16 | 122 | 70 | 106 | 99.7 | 45 | 9.7 | 85 | 18.1 | M8 | 979 | 3000 | 56.3 | 0.36 | 3.8 | |
| KC-6018 | 20-56 | 20 | 142 | 85 | 127 | 123.5 | 56 | 11.5 | 105 | 22.8 | M10 | 1810 | 2500 | 137.3 | 0.5 | 6.2 | |
| KC-6020 | 20-60 | 20 | 158 | 98 | 139 | 123.5 | 56 | 11.5 | 105 | 22.8 | M10 | 2210 | 2500 | 210.2 | 0.6 | 7.8 | |
| KC-6022 | 20-71 | 20 | 168 | 110 | 151 | 123.5 | 56 | 11.5 | 117 | 22.8 | M10 | 2610 | 2500 | 295 | 0.7 | 10.4 | |
| KC-8018 | 20-80 | 20 | 190 | 110 | 169 | 141.2 | 63 | 15.2 | 129 | 29.3 | 1° | M12 | 3932 | 2000 | 520 | 0.9 | 12.7 |
| KC-8020 | 20-90 | 20 | 210 | 121 | 185 | 145.2 | 65 | 15.2 | 137 | 29.3 | M12 | 4800 | 2000 | 812.4 | 1.1 | 16 | |
| KC-8022 | 20-100 | 20 | 226 | 140 | 202 | 157.2 | 71 | 15.2 | 137 | 29.3 | M12 | 5640 | 1800 | 1110 | 1.2 | 20.2 | |
| KC-10020 | 25-110 | 25 | 281 | 160 | 233 | 178.8 | 80 | 18.8 | 153 | 35.8 | M12 | 8400 | 1800 | 2440 | 1.8 | 33 | |
| KC-12018 | 35-125 | 35 | 307 | 170 | 256 | 202.7 | 90 | 22.7 | 181 | 45.4 | M12 | 12700 | 1500 | 3940 | 3.2 | 47 | |
| KC-12022 | 35-140 | 35 | 357 | 210 | 304 | 222.7 | 100 | 22.7 | 181 | 45.4 | M12 | 18300 | 1250 | 7810 | 4.4 | 72 | |
| KC-16018 | 63-160 | 53 | 375 | 228 | 340 | 254.1 | 112 | 30.1 | 240 | 58.5 | M16 | 26400 | 1100 | 14530 | 7.2 | 108 | |
| KC-16022 | 80-200 | 70 | 440 | 279 | 405 | 310 | 140 | 30.1 | 245 | 58.5 | M16 | 38100 | 1000 | 32220 | 9.9 | 187 | |
| KC-20018 | 80-205 | 75 | 465 | 289 | 425 | 437.5 | 200 | 37.5 | 285 | 71.6 | M20 | 54100 | 800 | 50980 | 11.8 | 286 | |
| KC-20022 | 100-255 | 90 | 545 | 363 | 526 | 477.5 | 220 | 37.5 | 300 | 71.6 | M20 | 77800 | 600 | 111100 | 15.8 | 440 | |
| KC-24022 | 120-310 | 110 | 650 | 448 | 607 | 650 | 302.5 | 45 | 340 | 87.8 | M20 | 137000 | 600 | 310000 | 21.9 | 869 | |
| KC-24026 | 150-360 | 140 | 745 | 526 | 704 | 700 | 327.5 | 45 | 350 | 87.8 | M20 | 186000 | 500 | 598500 | 28.1 | 1260 |
