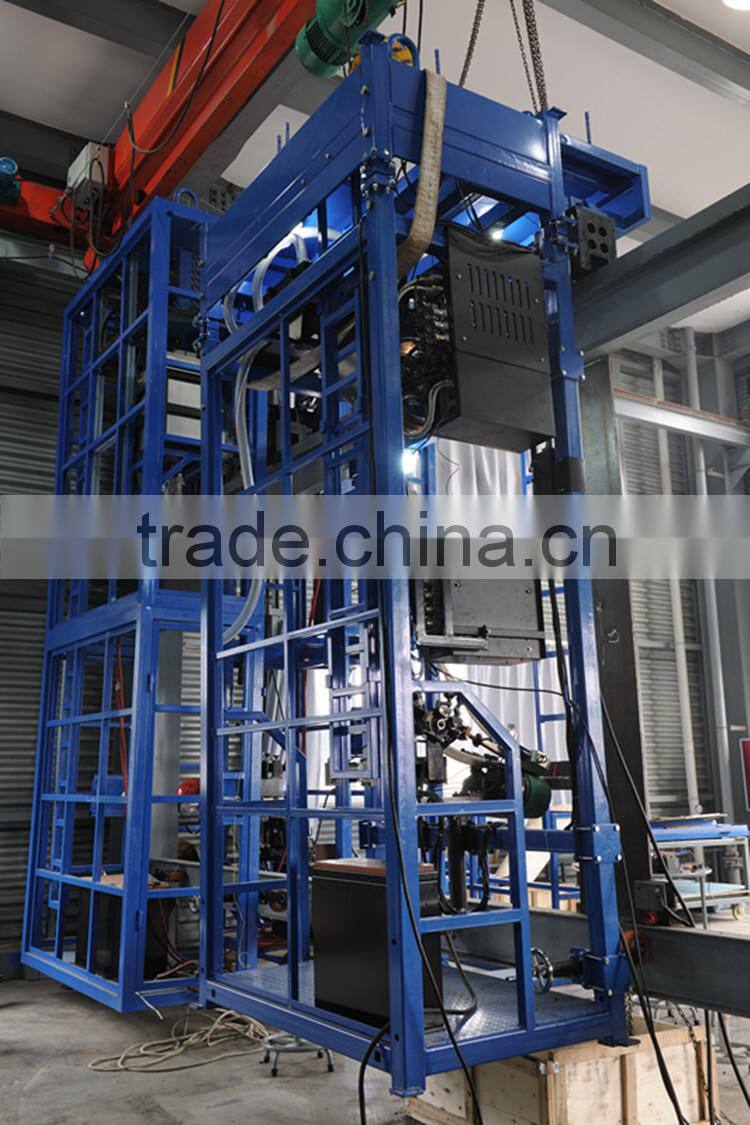

Help CenterXionggu S-810 Automatic Welding Machine for Pipe Fabrication
Related Products
-
Xionggu S-810 3D Video of Automatic Welding MachineUS$ 1 - 2MOQ: 1 Set -
Xionggu for Large Storage Tanks Welding Equipment SAWNegotiableMOQ: 1 Set
-
Xionggu Intelligent Horizontal Welding System for Large Storage TankNegotiableMOQ: 1 Set
-
Xionggu S-810 High Quility Internal or External Seam Welding Machine for 4.5m TankNegotiableMOQ: 1 Set
-
Chengdu Xionggu S-810 Intelligent Submerged Arc Welding Robot SystemNegotiableMOQ: 1 Set

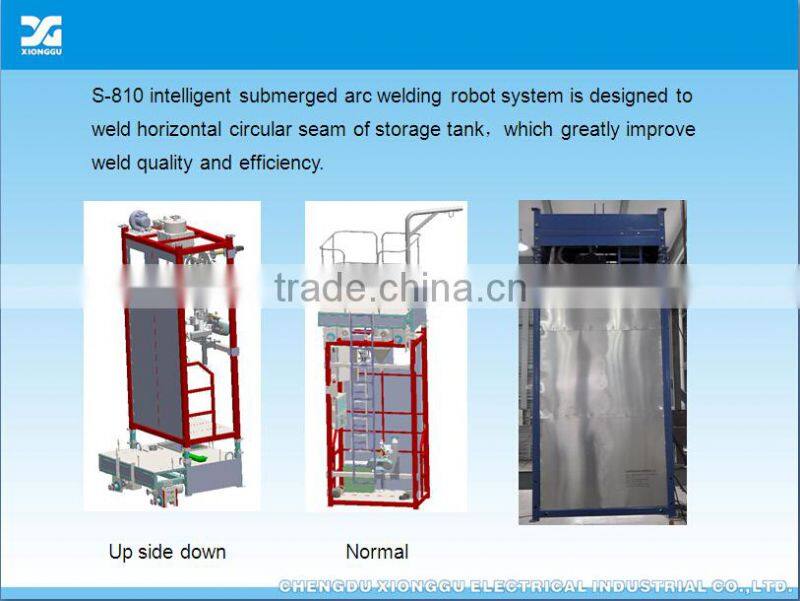

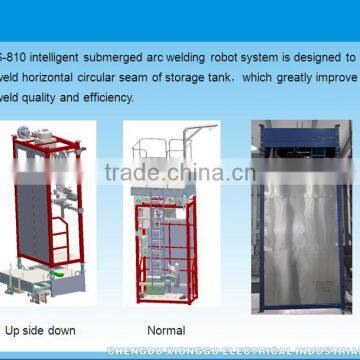

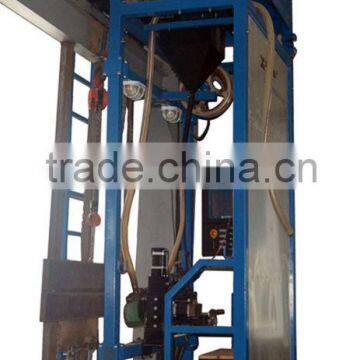

S-810 intelligent submerged arc welding robot system is designed to weld horizontal circular seam of storage tank,which greatly improve weld quality and efficiency.
Processes:SAW (CC/CV)
Working conditions: Ambient temperature -40~55℃;Altitude 4000m.
IP Rating: IP23

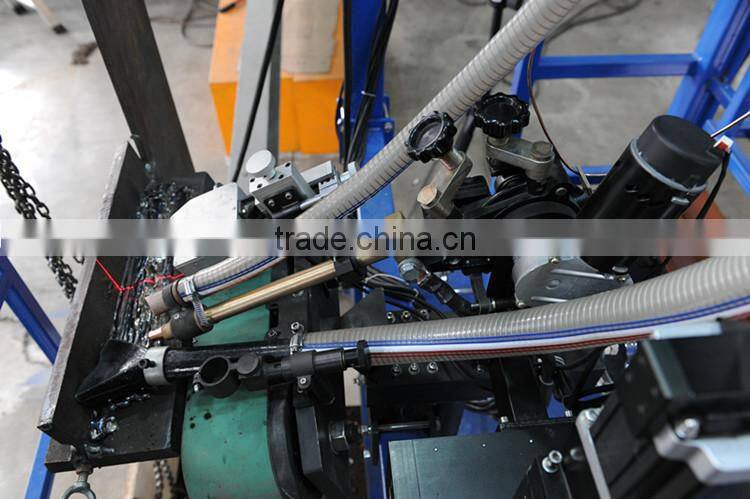

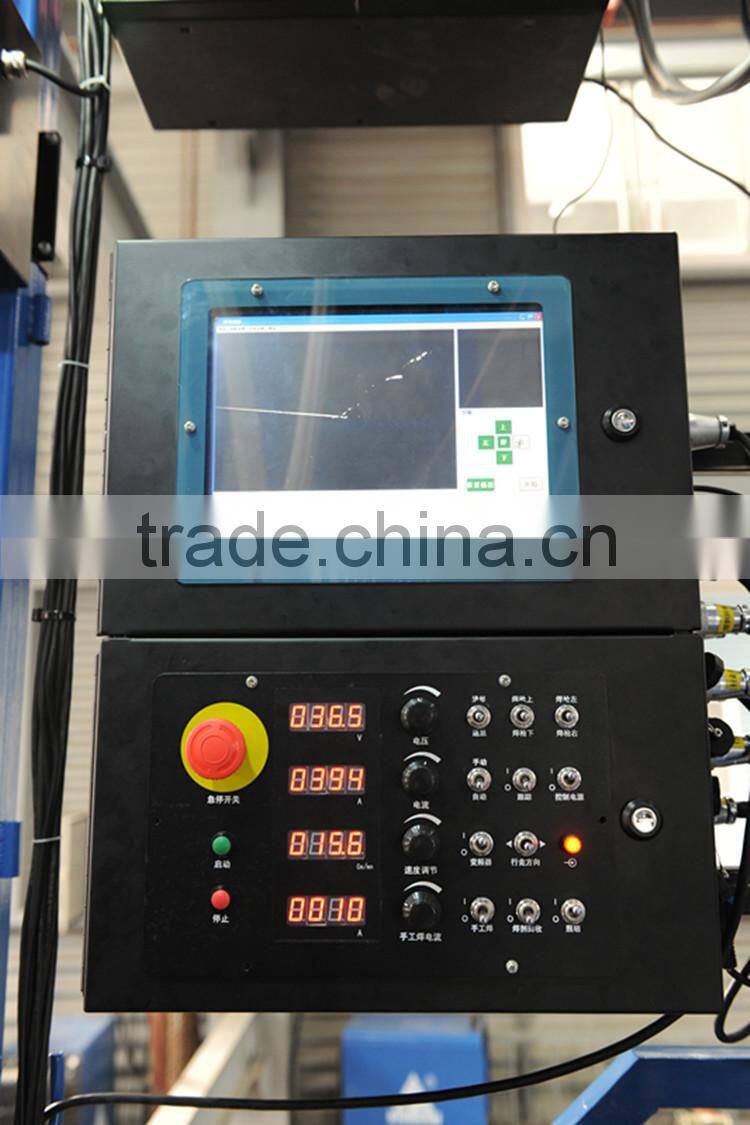

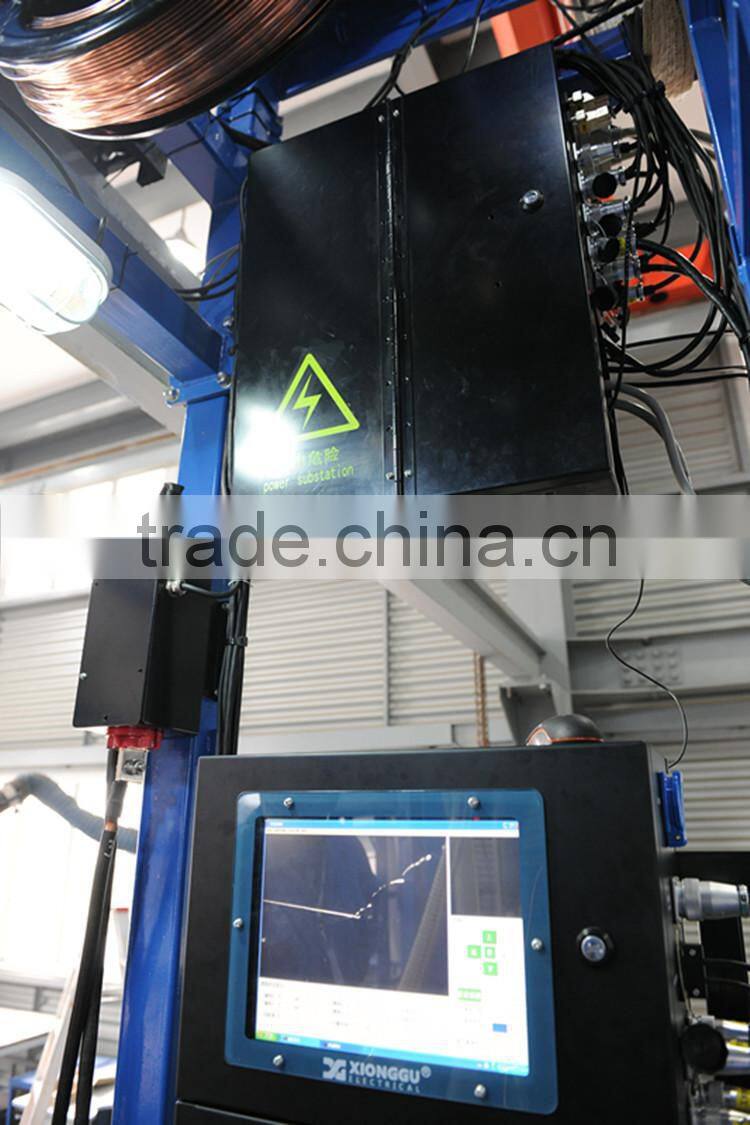

Accessories: Self-propelled system, Welding device, Flux recovery system , Intelligent control system,SAW power source. Laser welding seam tracking system is optional.
Features:

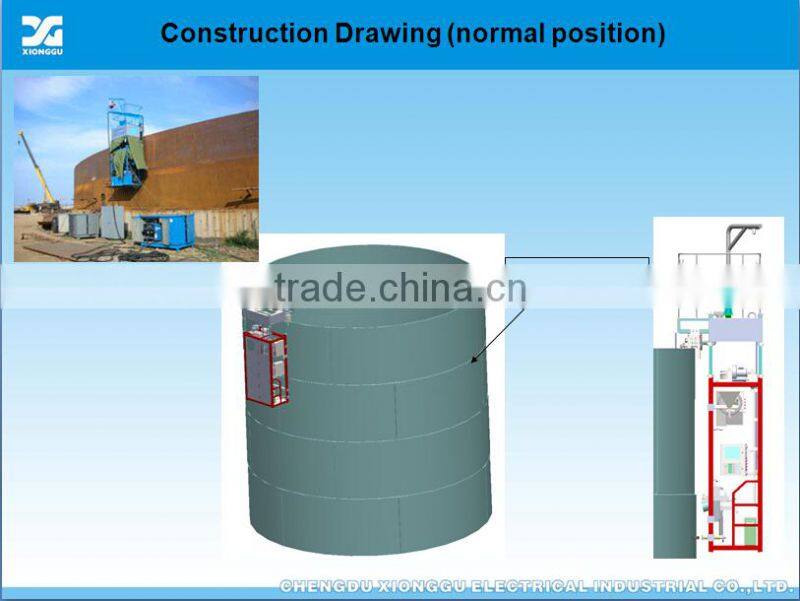

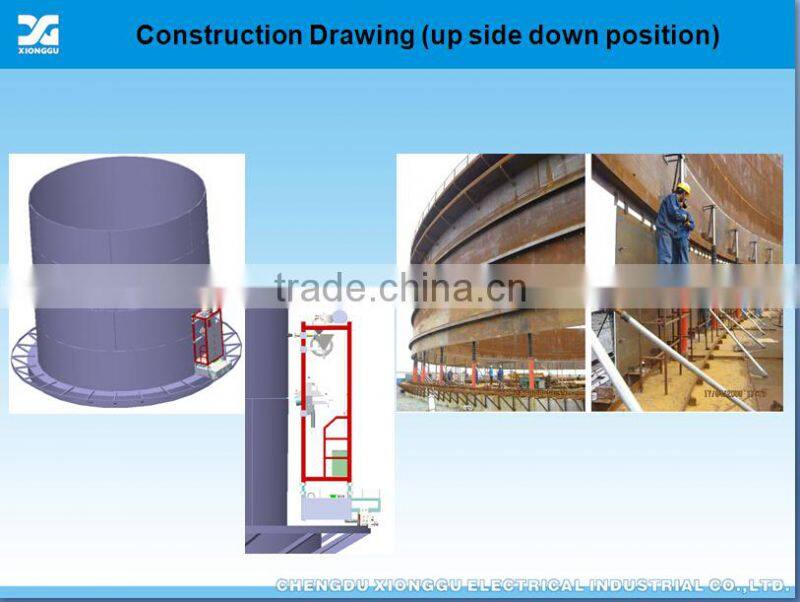

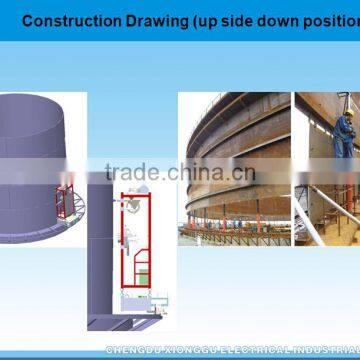

Apply to internal or external circumferential seam welding of large storage tanks;
Tank diameter≥4.5m,the thickness 8mm-45mm;
Width of tank is 1.8m-3.2m.
Main Technical Parameters
Model |
S-810 |
Product ID |
4405000000 |
Rated Output Current / Voltage |
1250A/44V |
Tracking Precision |
±0.2mm |
Diameter of Wire |
Φ3.0mm-Φ6.0mm |
Weight |
1200kg |
Dimensions(W×D×H) |
1000mm×1200mm×2500mm |
