Alibaba express TM-700UVF UV curing machine
UV Curing Machine TM-700UVF be fit to UV curing drying ,for plastic,Paper ,pvc, PP Sheets, wooden floor board ,UV POLISHING , PVC,PET , PCB after printing UV printing, electronic product UV sparying , UV pritning, packing products UV drying .
UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics
Paremeter
1. Model NO.TM-700UVF
2. UV Drying products:700*100*2000mm
3. Conveyor belt size:L2000* W700MM
4. UV Lamp power:2PCS*3KW /380V
5. Total wattage:7.5KW
6. Wind fan wattage: 500W/380V
7. motor wattage:1000W/1P/380V
8. Conveyor speed:0~10m/min
9. Speed change ways:Continue
10. UV Machine Dimension:L*W*H2020*900*1350
| odel number | TM-500UVF | TM-600UVF | TM-700UVF | TM-800UVF | TM-900UVF | TM-1200UVF |
| max product width | 500mm | 600mm | 700mm | 800mm | 900mm | 1200mm |
| max product length | 2000mm | 2000mm | 2000mm | 3000mm | 3000mm | 3000mm |
| UV Process shine area | 500*2000mm | 600×2000mm | 700×2000mm | 800*3000mm | 900*3000mm | 1200*3000mm |
| conveyer speed: | 0-10m/min | 0-10m/min | 0-10m/min | 0-10m/min | 0-10m/min | 0-10m/min |
| UV Lamp power | 3KW ×2PCS/ | 3KW ×2 PCS/ | 3KW ×2 PCS/ | 5KW*2pcs | 5.6KW*2PCS | 5.6KW*2 PCS |
| UV Machine Dimension: | 2020×550×1200mm | 2020*650*1200mm | 2020*750*1200mm | 3020*850*1200mm | 3020*950*1200mm | 3020*1250*1200m |

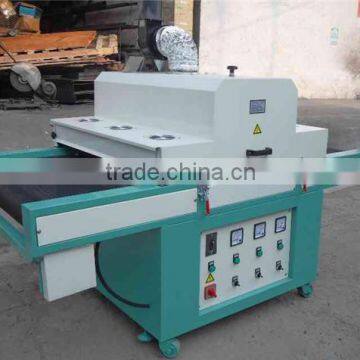

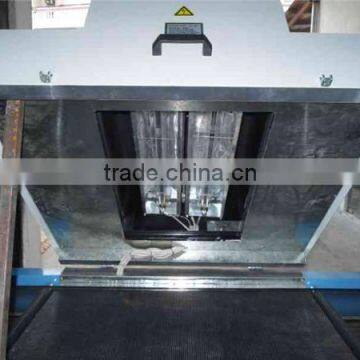

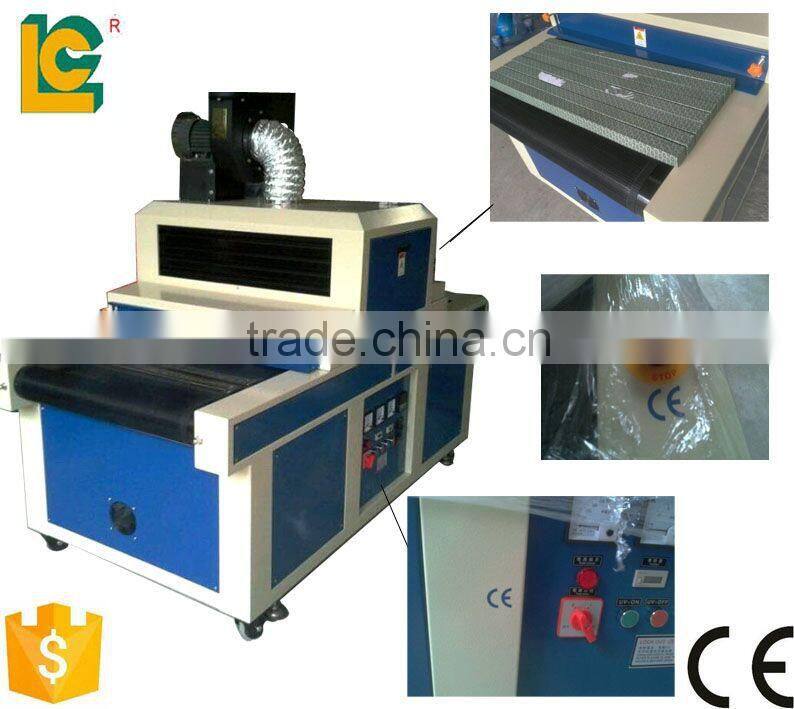

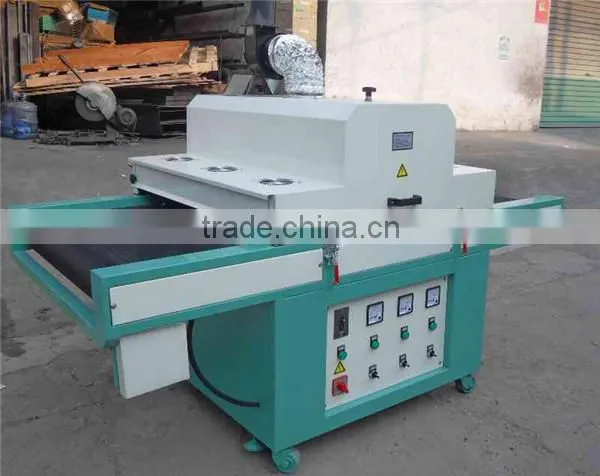

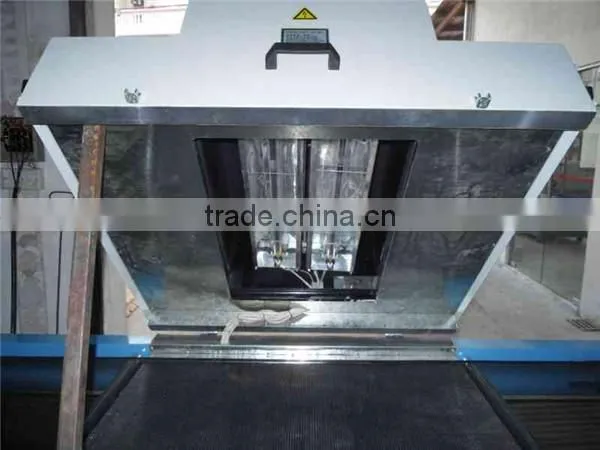

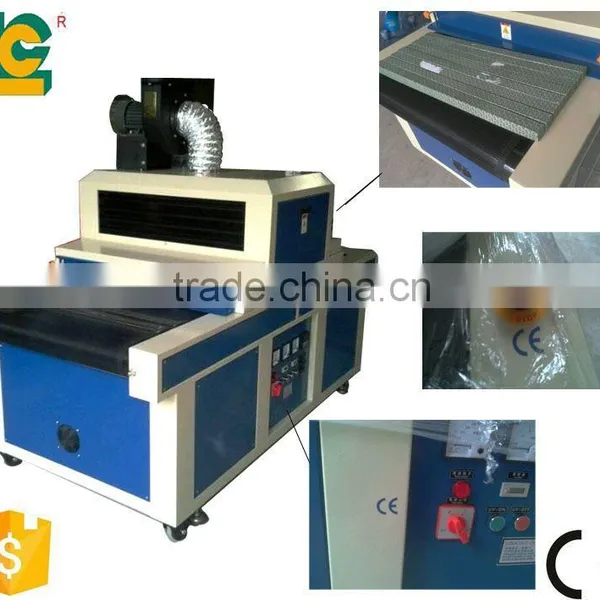

Machine pics
LUEN CHEONG printing equipment LTD was topmanufacturing in pad printer, silk screen printer, hot foil stamping machine, UV Curing machines & for 25 years.
We passed ISO-9001-2000 certification in 2001 and we are a member of SGIA and all of our industrial printers had passed EURO'S CE standard.And we had
we are the gold membership of Alibaba and got a huge credit all the world .
There are customers from 100 countries to visit our factory and we had a good cooperation.
Cooperative Partners:
We do business with companies and customers all over the world. Please feel free to contact us.
Our Company Sales Team
16 hours online services
8:00 am--12:00pm (Monday- Saturday)
24 hours phone call services (Monday- Sunday)
In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.
Company Purpose: The best quality, leading technology, and provide the best product and service for our customers.
Alibaba express TM-700UVF UV curing machine
As the picture bellow, we pack goods with high standard ways to ensure the goods not damaged on the way of transportation.
Shipping Cooperators:
You can choose any shipping way as follow:
1.Keep the machine cleaning
2. Refence the outside drawing of work piece to make holder and model.
3. Washing the part of slide weekly, and feeding the lubricating oil.
4. Deal with the water in the filter regual, for protect the pneumatic system transfer.
5.the size of Pad Plate must fit for the size of Inkwell
6. Pay attention to the choice of pad:
The hardness of pad includes the “soft”, “medium” and “hard”. If prints fine design, you should choose the hard pad, while prints on accidented surface, use the soft pad, furthermore, the volume and shape of pad should be similar with size of the design and surface shape of the work piece.
7. Usage of ink:
According to different kinds of work pieces, such as plastic, glass or metal, etc. you should choose different inks, and the ink should be stirred before pouring into the ink cup.
8. When operation of the machine is paused, you should let the ink scraping system go on working in order to prevent the ink from air-drying.
9. During printing, you should infuse thinner into the inkwell according to different air-dry speed of the inks in order to keep the proper viscosity of the ink. After infusing the thinner, stir the ink immediately. If the pad is stained, clean it with the cleanser.
10. When the printing finished, need to wash the steel plate and pad.
11.Infuse lubricant once per week
Workshop:
Certificate
