Description

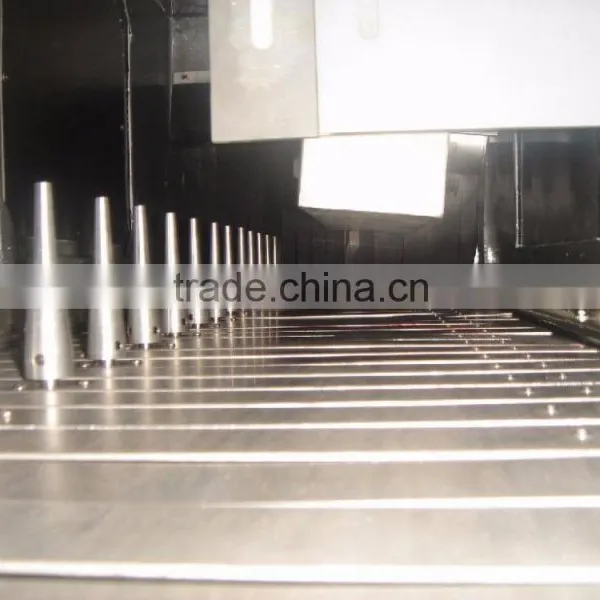

LC-4000UVS2 UV Curing  machine is mainly used for the curing of printed UV ink on various surfaces such as bottles and cylindrical articles. By adjusting its lighting angle, it can also be used in the UV Ink printing cure of flat substrate, Stainless steel conveyer to resist High Temperature. Stepless speed adjustment to match with diffrent bottles. Suitable for bottles made by plastics, Metal, Glass Etc.

1 .UV  drying for round  bottle and  plane products.
2. Cylinder products increased the effect of light -
3.  UV Drying of products according to size, material, adjust the speed conveyor belt
4. Ventilation system installed at the top, so as to extend lamp life
5. A closed-end structure
6. Aesthetic appearance, apply a wide range, solid-effective
7. Reliable, safe and easy to operate   .

parameter
1. Max UV curing   round bottle  high :320mm
2. Max  UV curing Products width  :  400mm
3. UV Curing  bottle diameter : 25-100mm
4. Curing size of workpiece: Cylinder  products :320X400mm
5. Conveyor speed:0~10m/min ;
6. (United Kingdom)UV lamp power:4KW
7. UV Drying products  speed:1800~3000PCS/HR
8. Total power:5KW
9. Machine dimension: L:2200mm W:600mm H:1700mm

Free Fitting :
1 pcs UV lsmp(4KW)

Testing Please provide:

1. 380V power supply.
2. 5-7 bar compress air.
