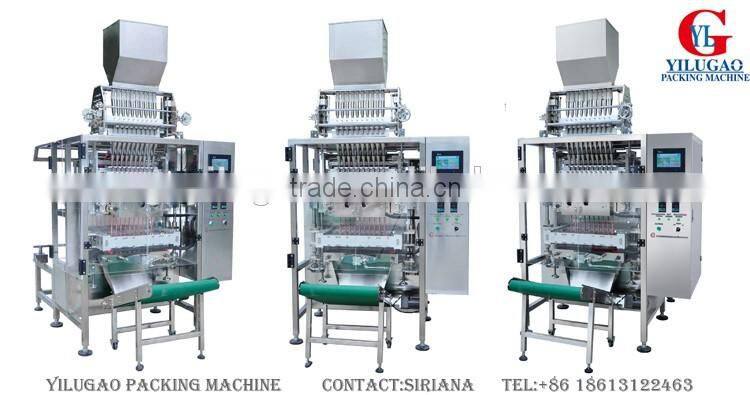

multi-lane back seal granule packing machine
- 0 per Month
- HUANG PU
- T/T
You May Like
Product Details
| Condition | New | Application | Beverage, Chemical, Food, Other, Medical, Beverage, Chemical, Food, Machinery & Hardware, Medical | |
| Packaging Type | Bags, Pouch, Other, Bags, Pouch, cartons | Packaging Material | Paper, Plastic, Other, Paper, Plastic, paper | |
| Automatic Grade | Other, Automatic, Automatic | Driven Type | Other, Pneumatic, electric | |
| Voltage | 380V | Power | 3.5kw | |
| Place of Origin | Guangdong, China | Brand Name | YLG | |
| Model Number | DXD-480KB-12 | Dimension(L*W*H) | L1600*W1400*H1500 Mm | |
| Weight | 800KG | Certification | CE Certification | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
I.: Main feature:
This model adopts advanced Mitsubishi PLC control system and easy to maintain and operate. It can automatically finish the process, such as filling, measurement, bag making, sealing, cutting, date coding, counting.
II.: Specifications:
Packaging type | Plastic stick shape bag/ back side sealing; |
Driven Type | Pneumatic |
Measurement accuracy | <= +- 1% |
Lanes quantity | 4 lanes according to the film width. |
Machine made of | SUS 304 (for parts contacted material) |
Packaging material | Laminated roll film |
Electric voltage | 380V |
Measurement device | Volumetric cups of groups |
Machine size(estimated) | According to the detailed design. |
Date coding | Ribbon printer(for chosen) |
III.: Description:
1. Sealing type: back sealing packing method/ stick shape.
2. Operation: packing running data and adjustment are directly displayed on the display. The user can directly
operate it on the displayer.
3. Function: making bag, metering, filling, sealing, cutting, counting and printing batch number.
4. Body material: 304 stainless steel.
5. Filling type: measurement volumetric cups
6. This machine can finish measuring, pulling, feeding, forming, cutting automatically.
7. Chinese-English operating screen display, easy operation and maintenance.
8. Mitsubishi PLC control system insure steady working conditions, and available to adjust any parameter without stopping the machine.
9. Adopt step motor to pull film, more accurate.
10. Independent temperature control system, precision±1 degree.
11. Independent control of horizontal / longitudinal temperature, to ensure a good fit of various kinds of complex film.
12. Automatic alarm protects system, to save the waste into minimum limited.

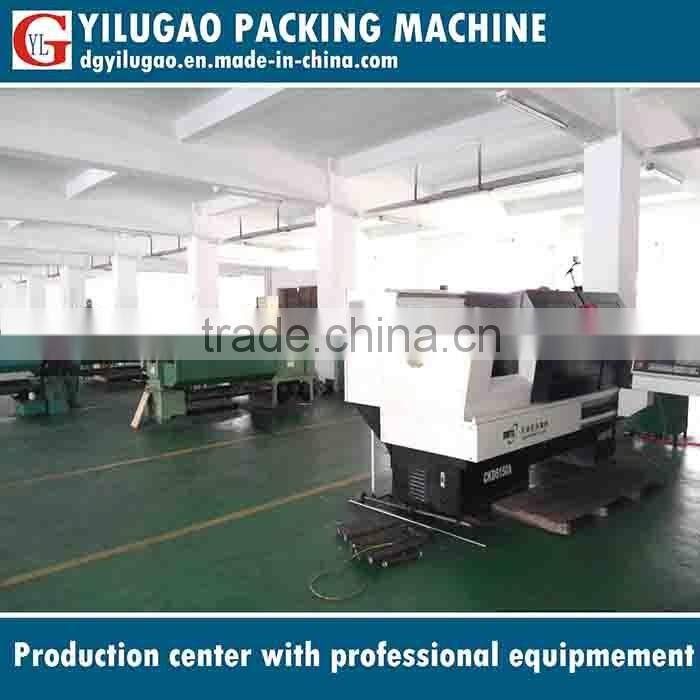

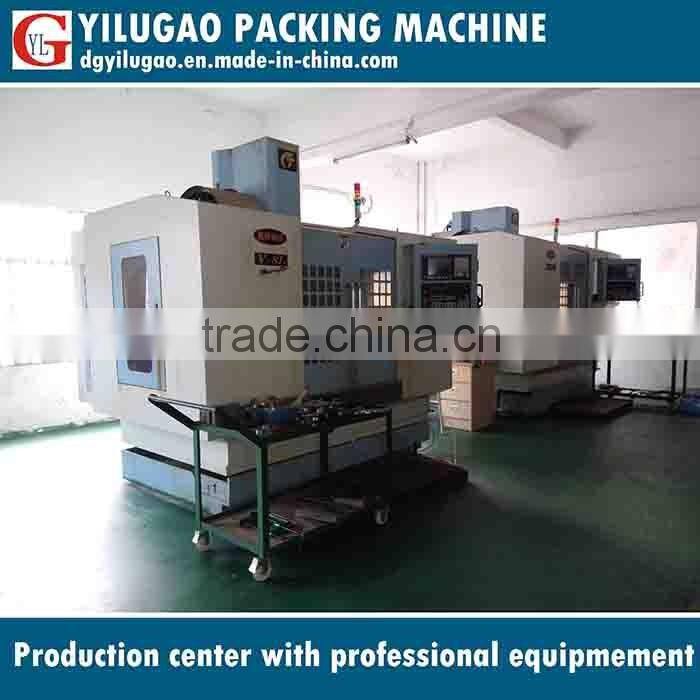

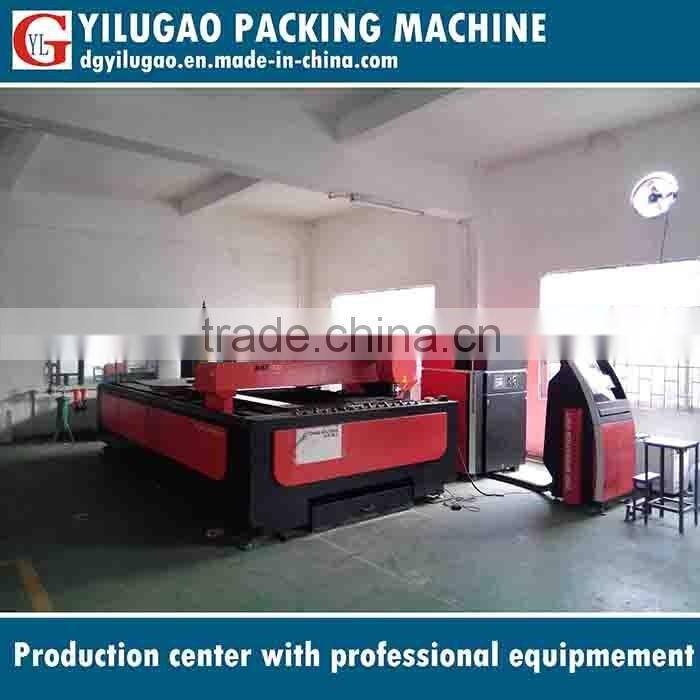

Guangzhou Yilugao Packaging Machinery Co., Ltd. is a comprehensive enterprise that combines research and development, production, marketing and service together. It has a strong R&D group; And our leader engineer has over 30 year rice experience. We are the first enterprise which to manufacture multi-lane 3-side sealing packing machine in China.
