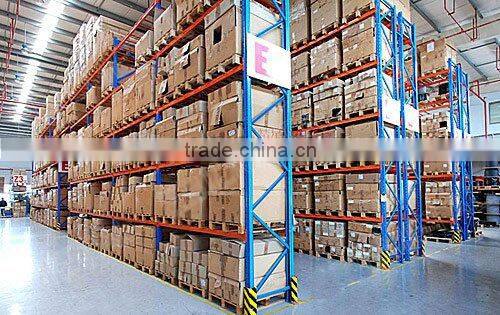

Heavy Duty Storage Selective Pallet Rack

Specifications

Selective Pallet Rack
cost effective storage system
direct access to all pallets
height adjustable
Type: pallet rack

Selective Pallet Rack  (Heavy Duty Beam Rack)



Selective Pallet Rack is a cost effective storage system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.



We ensure the most productive pallet racking solution is provided whether working from your plans or developing a cost-effective layout that is just right for your needs. You are assured of the best designed, most efficient and safest racking.



Features:

.  Pallets can be located, accessed and moved individually.

.  Rapid handling almost all types of palletized goods.

.  Fully utilizes vertical space

.  The loading capacity per level of such rack may reach 5000kg

.  Strength and rigidity prevents compression damage to goods.

.  Bottom level of pallets can be stored on the floor, lowering structure costs.

.  Durable powder coated finish, clean appearance, fire proof

.  Height of level can be adjusted by 75mm or 76.2mm



Beams are divided into Box welded beams and Step beams
Section size of box beams include: K80, K90, K100, K110, K120, K140, K150, K160
Section size of step beams include:  P80, P100, P120, P135, P150

Section size of upright include: 80 90 100 120 140 160
Pallet support bar:  regular type and cut-in adjustable types



                                 Selective Pallet Rack, 5 level, single row strengthen with bracing



We also supply accessories like collumn guard, barrier, decking panel, adjustable base plate, wire mesh  plate, truck rail etc, and other material handling equipment for warehouse storage.



Please inform us the following information for a quick quotation:

1) layout of your warehouse

2) storage requirement on the cargo(temperature etc)

3) dimension and weight of the pallet(packed with cargo)

4) How many levels you want and loading capacity of each level

5) How many pallet of cargo you need to storage

6) Parameter of your forklift( to decide the width of aisle between racking)
