Help CenterHeavy Duty Rack,pallet Rack,storage Rack,racking
Related Products
Specifications
rack:Delicately manufacturedScientiffically structured
Competive price
Heavy duty rack,pallet rack,storage rack,racking :
Pallet racking is easily utilized with just standard fork- and hand trucks. Pallet racking is an ideal starting point for all your warehouse and storage needs. Adjustable pallet racking systems come in many different styles, but it is important to get the basics right. For safe and efficient operation, pallet racking systems must be designed to fit and function with both the handling equipment and the load. Pallet racking systems may have to work with counterbalance trucks, reach trucks, narrow aisle trucks or automated handling equipment.
Selective Pallet Racking is a cost effective storage system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
We ensure the most productive pallet racking solution is provided whether working from your plans or developing a cost-effective layout that is just right for your needs. You are assured of the best designed, most efficient and safest racking.
Features:
. Pallets can be located, accessed and moved individually.
. Rapid handling almost all types of palletized goods
. Fully utilizes vertical space
. The loading capacity per level of such rack may reach 5000kg
. Strength and rigidity prevents compression damage to goods.
. Bottom level of pallets can be stored on the floor, lowering structure costs.
. Durable powder coated finish, clean appearance, fire proof
. Height of level can be adjusted by 75mm or 76.2mm
Beams are divided into Box welded beams and Step beams
Section size of box beams include: K80, K90, K100, K110, K120, K140, K150, K160
Section size of step beams include: P80, P100, P120, P135, P150
Section size of upright include: 80 90 100 120 140 160
Pallet support bar: regular type and cut-in adjustable types

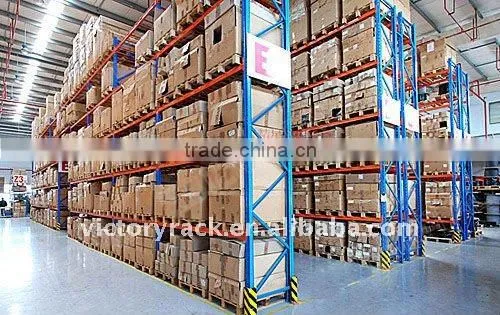

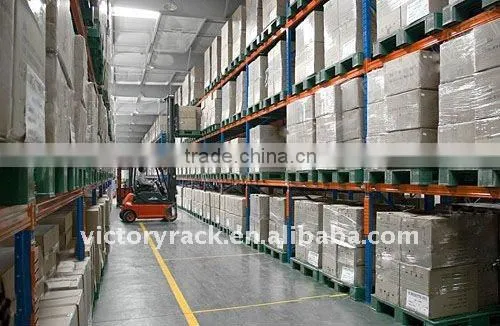

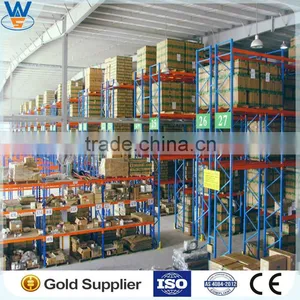

DETAILED PHOTOS FOR REFERENCE:
We also supply accessories like collumn guard, barrier, decking panel, adjustable base plate, wire mesh plate, truck rail etc, and other material handling equipment for warehouse storage.
ISO & CE passed:
Company Introduction:
Nanjing Victory Storage Equipment Manufacturing Co., Ltd. is engaged in the plan, design, manufacture, installation and consulting service of racking equipment and other material handling equipment. We are a member of China's Logistics Association, and are well-known for providing series of automated logistics systems, solutions and management software.
We have series of rolling lines for uprights, beams, floor...
Nanjing Victory Storage Equipment Manufacturing Co., Ltd. is engaged in the plan, design, manufacture, installation and consulting service of racking equipment and other material handling equipment. We are a member of China's Logistics Association, and are well-known for providing series of automated logistics systems, solutions and management software.
Our production base is located at Jiangning Industrial Zone and has the whole sets of production systems. We have series of rolling lines for uprights, beams, floor decking and steel profiles, which are designed and developed by our own technicians. Our automatic stamping line is from Taiwan area. Our company adopts automatic powder coating line from Europe, and develops Slot Chemical Bath pretreatment line by our company. Taking advantage of long-term cooperation with Baosteel Group on coil steel, we adopt assembly line from slitting, punching and set size cutting to extruding. Our manufacturing quality and cost are strictly controlled.
Our company adopts Computer-aided design (CAD) system to plan and design your warehouse storage system by our talented and experienced team of designers.
We strictly comply with ISO9001:2000 and CE certificate, and our pursuit is "advanced management mode, constantly absorbing advanced technology in the line, and study & develop new technology on steel structure". Our company always keeps the leadership in logistics line.
Main Products :
1) Heavy duty pallet racks, drive-in racks,
2) Cantilever, push-back and carton flow racks
3) Racking support mezzanine, steel platform, mould slid racks, Auto 4s shop racks
4) Light-duty and medium-duty shelves
5) Automatic storage and retrieval systems
6) Pallets, cages, stacking racks, containers, pallet jacks, scissor lift, logistics caters, etc.
7) Metal profile and metal puncture parts
