Selective Pallet Rack,storage rack,warehouse rack

Specifications

Selective Pallet Rack:
Cost effective storage racking
100% access to all pallets
Powder coated
Type: pallet racking

Selective Pallet Racking (Heavy Duty Beam Racking)



Selective Pallet Racking is a cost effective storage system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.



We ensure the most productive pallet racking solution is provided whether working from your plans or developing a cost-effective layout that is just right for your needs. You are assured of the best designed, most efficient and safest racking.



Features:

. Pallets can be located, accessed and moved individually.

. Rapid handling almost all types of palletized goods

. Fully utilize vertical space

. The loading capacity per level of such rack may reach 5000kg . Strength and rigidity prevents compression damage to goods.

. Bottom level of pallets can be stored on the floor, lowering structure costs.

. Durable powder coated finish, clean appearance, fire proof.

. Height of level can be adjusted by 75mm or 76.2mm.



Beams are divided into Box welded beams and Step beams

Section size of box beams include: K80, K90, K100, K110, K120, K140, K150, K160

Section size of step beams include: PK80, PK100, PK120, PK135, PK150

Section size of upright include: 80 90 100 120 140 160

Pallet support bar: regular type and cut-in adjustable types

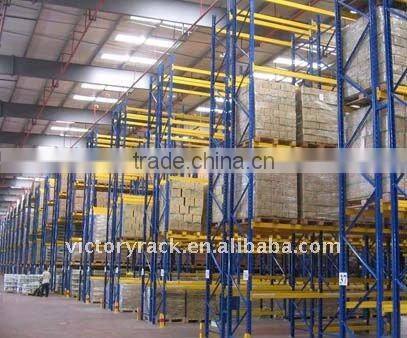

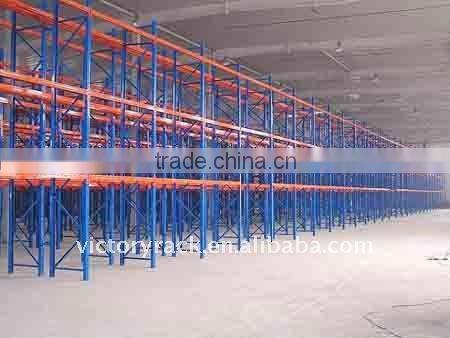

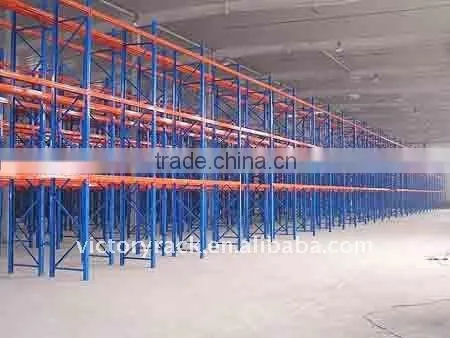

                            Selective Pallet Racking



                                Selective Pallet Racking

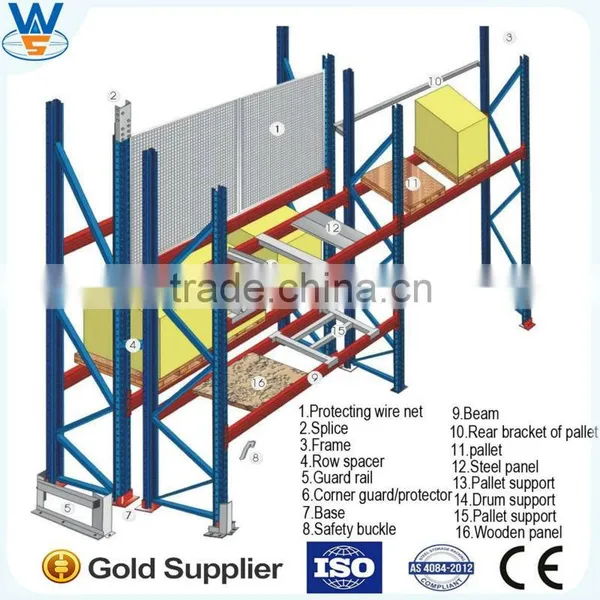

We also supply accessories like collumn guard, barrier, decking panel, adjustable base plate, wire mesh plate, truck rail etc, and other material handling equipment for warehouse storage.



Please inform us the following information for a quick quotation:

1) layout of your warehouse

2) storage requirement on the cargo(temperature etc)

3) dimension and weight of the pallet(packed with cargo)

4) How many levels you want and loading capacity of each level

5) How many pallet of cargo you need to storage.

6) Parameter of your forklift( to decide the width of aisle between racking).



Company Introduction:



Nanjing Victory Storage Equipment Manufacturing Co., Ltd. is engaged in the plan, design, manufacture, installation and consulting service of racking equipment and other material handling equipment. We are a member of China's Logistics Association, and are well-known for providing series of automated logistics systems, solutions and management software.

We have series of rolling lines for uprights, beams, floo...

Nanjing Victory Storage Equipment Manufacturing Co., Ltd. is engaged in the plan, design, manufacture, installation and consulting service of racking equipment and other material handling equipment. We are a member of China's Logistics Association, and are well-known for providing series of automated logistics systems, solutions and management software.

Our production base is located at Xiaozhuang Industrial Zone and has the whole sets of production systems. We have series of rolling lines for uprights, beams, floor decking and steel profiles, which are designed and developed by our own technicians. Our automatic stamping line is from Taiwan area. Our company adopts automatic powder coating line from Europe, and develops Slot Chemical Bath pretreatment line by our company. Taking advantage of long-term cooperation with Baosteel Group on coil steel, we adopt assembly line from slitting, punching and set size cutting to extruding. Our manufacturing quality and cost are strictly controlled.

Our company adopts Computer-aided design (CAD) system to plan and design your warehouse storage system by our talented and experienced team of designers.

We strictly comply with ISO9001:2000, and our pursuit is "advanced management mode, constantly absorbing advanced technology in the line, and study & develop new technology on steel structure". Our company always keeps the leadership in logistics line.

Main Products :

1) Heavy duty pallet racks, drive-in racks,
2) Cantilever, push-back and carton flow racks
3) Racking support mezzanine, steel platform, mould slid racks, Auto 4s shop racks
4) Light-duty and medium-duty shelves
5) Automatic storage and retrieval systems
6) Pallets, cages, stacking racks, containers, pallet jacks, scissor lift, logistics caters, etc.
7) Metal profile and metal puncture parts
