Product Advantage:
² Save power, can cool down the temperature high efficiency.
² Clear & simple construction, reduce maintenance procedures and costs
² Industrial/commercial places could install & apply easily
² 18000-30000cmh airflow, suitable for 100~150sqm
² Down discharge type for roof, window and wall installation
² Suitable for big building , support 15~20m single ducting

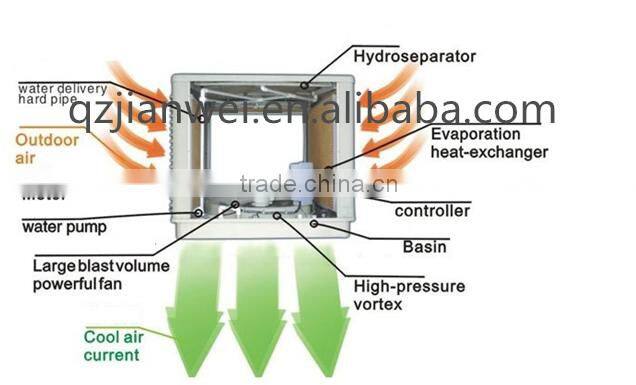

Work Principle:
Evaporative air cooler produces effective cooling by combining the natural process water
evaporation with a simple, reliable air moving system. Fresh outside air is filtered through
the saturated evaporative media, cooled by evaporation, and circulated by a blower.
Parameters:
| Air Cooler | Model | EAC-18 | EAC-20 | EAC-25 | EAC-30 |
| Airflow | 18000CBM/H | 20000CBM/H | 25000CBM/H | 30000CBM/H | |
| Fan | Type | Axial Fan | |||
| Blade Material | plastics blades or plastics with iron blades | ||||
| Blade Quantity | 3pcs | 3pcs | 3pcs | 3pcs | |
| Blade Diameter | 580mm | 580mm | 580mm | 580mm | |
| Fan Speed | 1 | 1 | 1 | 1 | |
| Motor | Motor Rotational Speed | 1400rpm | 1400rpm | 1400rpm | 1400rpm |
| IP Class | IP55 | IP55 | IP55 | IP55 | |
| Power | 1.1kw | 1.5kw | 2.2kw | 3kw | |
| Voltage | 380v/220v | 380v/220v | 380v/220v | 380v/220v | |
| Herz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | |
| Cabinet | Noise Level | 56-71db | 56-71db | 56-71db | 56-71db |
| Available Air Discharge | Bottom/Side/Upper | ||||
| Evaporative Efficiency | 80%-95% | 80%-95% | 80%-95% | 80%-95% | |
| Water Consumption | 20-25kg/hr | 20-25kg/hr | 20-25kg/hr | 20-25kg/hr | |
| Cooling Pad Type | 7090/5090 | 7090/5090 | 7090/5090 | 7090/5090 | |
| Cooling Pad Size | 770*670*100mm(Width*Heigh*Thickness) | ||||
| Duct Diameter | 620mm | ||||
| Duct Size | 670*670mm | ||||
| Dimension | 1100*1100*950mm | ||||
Qingzhou Jianwei Electric co., LTD. Is located in qingzhou city with the beautiful scenery , the site of factory is located in yi wang fu north road of qingzhou economic development zone , traffic is convenient, the geographical position is superior.The main products range is distribution box and fan series.
Our company main products are: series fan fan, suction fan, livestock greenhouse, wet curtain cooling fan, fan paper, tunnel ventilation window, automatic coal-fired hot air blower and its supporting products.
Since its establishment, Qingzhou jianwei electric co.,ltd professional committed to the national energy conservation and environmental protection enterprise, has a high-quality professional skilled staff team, rich professional knowledge and targeted product design, and fully meet the different needs of users.
Qingzhou Jianwei electric co., LTD. manufacture first-class products, create high-quality goods of environmental engineering as the goal, in the process of development, continuous learning innovation, forge ahead, with products professional knowledge as the guide, to serve the customer as the center, for the general customers to create a good economic benefit.
