Alibaba express Bottle can Flat/cylinder Heat Transfer Machine TC-300K
This hot stamping machine is fit for stamping on the surface of plane and round objects .With fast speed and low energy consumption.Mainly applied to the field of craft,fabric handbag,leather,paper and plastic.
Function
1.With the crank design,which has powerful stamping pressure and little consumption of air pressure.
2.Worktable is adjustable in front-back,left-right direction and revolvable,which ensures the quick and safe operation.
3.Stamping pressure,temperature and time are adjustable.
4.Automatic foil feeding and rolling with adjustable function.
5.Height of the stamping head is adjustable.
Parameter:
1.Modle: TC-300K
2.Hot stamping plane plate size: 250*200mm
3.Cylinder size: 100mm
4.Wattage: 3000w
5.Air Pressure:5-7bar
6.Controlled temperature: 400 degrees at room temperature
7. Machine Dimensions(L*W*H)-1600*1000*2100m
8.Machine Weight:380KG
Fittings with machine
1. one foot stamping foil or heat trnasfer film;
2. Cylindrical silicon roller one pcs;
3. cylinder jig one set
4. tool box one set

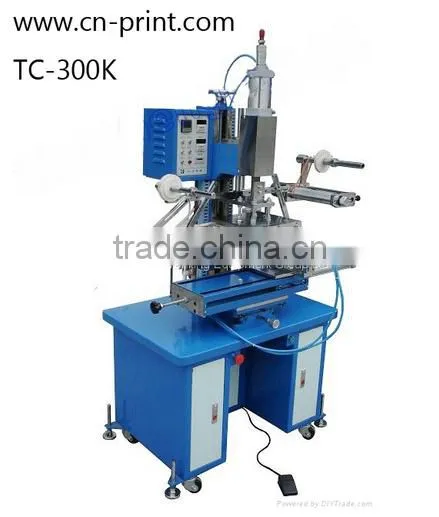

Machine pics

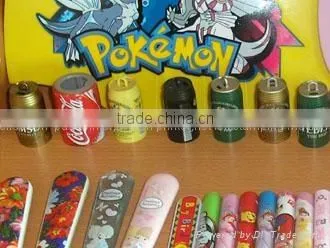

Sample of printer
LUEN CHEONG printing equipment LTD was topmanufacturing in pad printer, silk screen printer, hot foil stamping machine, UV Curing machines & for 25 years.
We passed ISO-9001-2000 certification in 2001 and we are a member of SGIA and all of our industrial printers had passed EURO'S CE standard.And we had
we are the gold membership of Alibaba and got a huge credit all the world .
There are customers from over 100 countries to visit our factory and we had a good cooperation.
Cooperative Partners:
We do business with companies and customers all over the world. Please feel free to contact us.
Our Company Sales Team
16 hours online services
8:00 am--12:00pm (Monday- Saturday)
24 hours phone call services (Monday- Sunday)
In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.
Company Purpose: The best quality, leading technology, and provide the best product and service for our customers.
Alibaba express Bottle can Flat/cylinder Heat Transfer Machine TC-300K
As the picture bellow, we pack goods with high standard ways to ensure the goods not damaged on the way of transportation.
Shipping Cooperators:
You can choose any shipping way as follow:
1.Keep the machine cleaning
2. Refence the outside drawing of work piece to make holder and model.
3. Washing the part of slide weekly, and feeding the lubricating oil.
4. Deal with the water in the filter regual, for protect the pneumatic system transfer.
5.the size of Pad Plate must fit for the size of Inkwell
6. Pay attention to the choice of pad:
The hardness of pad includes the “soft”, “medium” and “hard”. If prints fine design, you should choose the hard pad, while prints on accidented surface, use the soft pad, furthermore, the volume and shape of pad should be similar with size of the design and surface shape of the work piece.
7. Usage of ink:
According to different kinds of work pieces, such as plastic, glass or metal, etc. you should choose different inks, and the ink should be stirred before pouring into the ink cup.
8. When operation of the machine is paused, you should let the ink scraping system go on working in order to prevent the ink from air-drying.
9. During printing, you should infuse thinner into the inkwell according to different air-dry speed of the inks in order to keep the proper viscosity of the ink. After infusing the thinner, stir the ink immediately. If the pad is stained, clean it with the cleanser.
10. When the printing finished, need to wash the steel plate and pad.
11.Infuse lubricant once per week

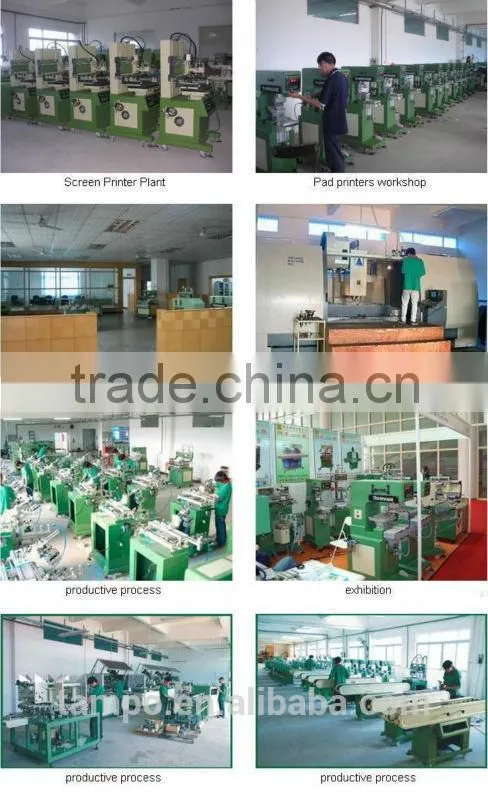

Workshop:

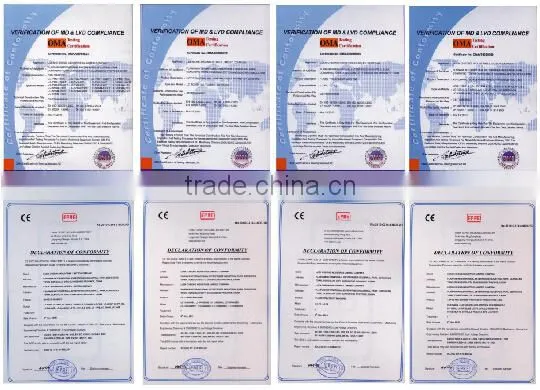

Certificates:
