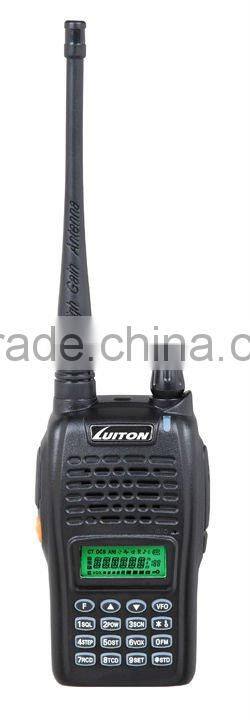

LT-560 Repeater Function Walkie Talkie Supplier

Built-in FM radio

computer/manual programmable

50 groups of CTCSS /104+1 groups of DCS

Repeater function

VOX function

Battery indicator; Lower battery warning

Multi-Scan function

Keypad lockout

Checking current battery voltage

High/low power select (1 to 5W)

Reverse frequency

Power on message editable

LCD & keypad backlit display

Adjustable squelch level

12.5kHz/25kHz compatibility

Emergency alarm function

Channel name editable

TOT , Step, backlight can be set.

Model NO.

LT-560

LT-560

General

Frequency Band

VHF

UHF

Frequency Range

136-174MHz

400-470MHz

Channel Capacity

128

Operating Voltage

7.2V DC ±15%

Antenna Impedance

50Ω

Channel Spacing

12.5kHz/25kHz

Working Temperature

-30 °C - +60 °C

Frequency Stability

±2.5 ppm

Size (Without Antenna)

104(W)mmx62(L)mmx36mm(D)

Weight(With Battery)

250g

Battery

1500 mAh (Li-ion)

Transmitter

RF Power Output

5W/4W

Modulation Type

F3E

Modulation Distortion

< 5%(300-3000Hz)

Max Freq Deviation

< 5kHz(1000Hz When 100%)

FM Noise

<=-45dB

Receiver

Sensitivity(12Db SINAD)

0.16μV

Selectivity

55dB

Adjacent Channel Selectivity

>=70dB

Noise Respond

>=60dB

FM Noise

30dB/40dB

Modulation Type

8K/16KF3E

Audio Power Output

500mW When Distortion Less Than 10%

Audio Distortion

< 5%

Operating Bandwidth

±3.5kHz/3.75kHz

Standby Current

< 12mA
