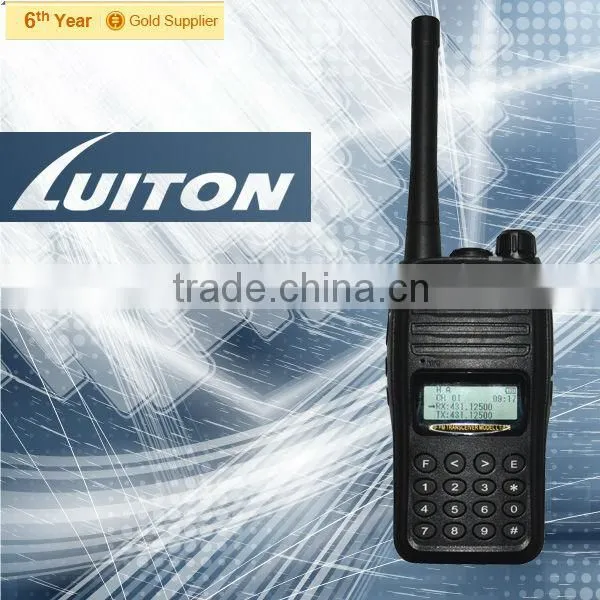

LUITON LT-870 Voice Recorder Two Way Radio

LUITON LT-870 Voice Recorder Two Way Radio thumbnail-1
LUITON LT-870 Voice Recorder Two Way Radio photo-1
US$ 60 - 70 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
LUITON two way radio
Model Number:
LT-870 two way radio
Contact Supplier Request Quote Chat Now
Quanzhou Bond Telecom Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name LUITON two way radio
Model Number LT-870 two way radio
Type Handheld
Dimensions 61*39*124mm
Frequency Range VHF:136-174MHz UHF:400-470MHz/350-390MHz
Storage Channel 99
Talk Range 3-5km

Specifications

LUITON LT-870 Voice Recorder two way radio
Warranty:1 year
Delivery time: 3days after TT



LUITON LT-870 Voice Recorder two way radio





  • Monitor
  • Voice Recorder, record time up to 585 hours
  • Scanning
  • VOX
  • PC programming
  • Squelch level 0-9
  • Time-out timer (TOT)
  • Wide/narrow band switch
  • Low battery alarm
  • Busy channel lock out
  • Automatic power save
  • CTCSS/DCS and STE
  • LED flashlight
  • Battery voltage indication
  • Noise suppression

LUITON LT-870 Voice Recorder two way radio

General

Frequency range

VHF:136-174MHz   UHF:400-470MHz/350-390MHz

Channels

99

Channel space

25 KHz /12.5 KHz

Operating temperature range

-20°C~+60°C

Antenna impedance

50Ω

Power supply

DC7.4V(±20%)

Battery capacity

2500mAh(Li-ion)

Frequency stability

≤±2.5 ppm

Dimension

 61×39×124mm

Weight

 248g(including the battery pack)

Transmitter

Transmitting power

Hi: 7W   Lo:1W

Modulated mode

16KΦF3E(width)/8K50F3E(narrow)

Spurious emissions

≤-36dBm

FM noise

≤-40dB

Audio distortion

≤5%

Adjacent-channel power

≥55 dB(width)/55 dB(narrow)

Maximum frequency deviation

≤5KHz(width)/2.5KHz(narrow)

Receiver

Sensitivity (at 12dB SINARD)

≤0.2μV(Width)/ 0.25μV (narrow)

Adjacent channel selectivity

≥60dB(width)/ 50dB (narrow)

Intermodulation rejection ratio

≥60dB(width)/ 50dB (narrow)

Anti interfere of spurious wave

≥60dB(width)/ 50dB (narrow)

SNR

≥45dB(width)/ 40dB (narrow)

Audio output power

0.5W

Audio distortion

≤5%

Note:All specifications above are subject to change without notice



Rated Audio Distortion

≤5%









 LUITON LT-870 Voice Recorder two way radioLUITON LT-870 Voice Recorder two way radioLUITON LT-870 Voice Recorder two way radioLUITON LT-870 Voice Recorder two way radioLUITON LT-870 Voice Recorder two way radio

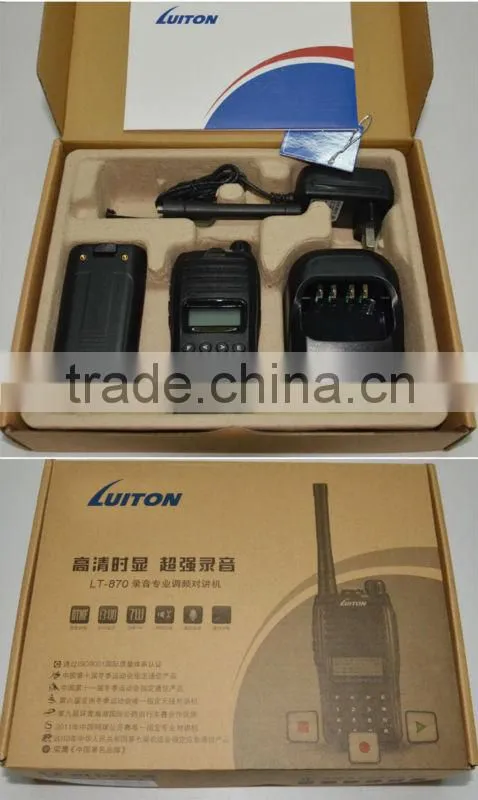

1x LT-870 two way radio(100% brand new)

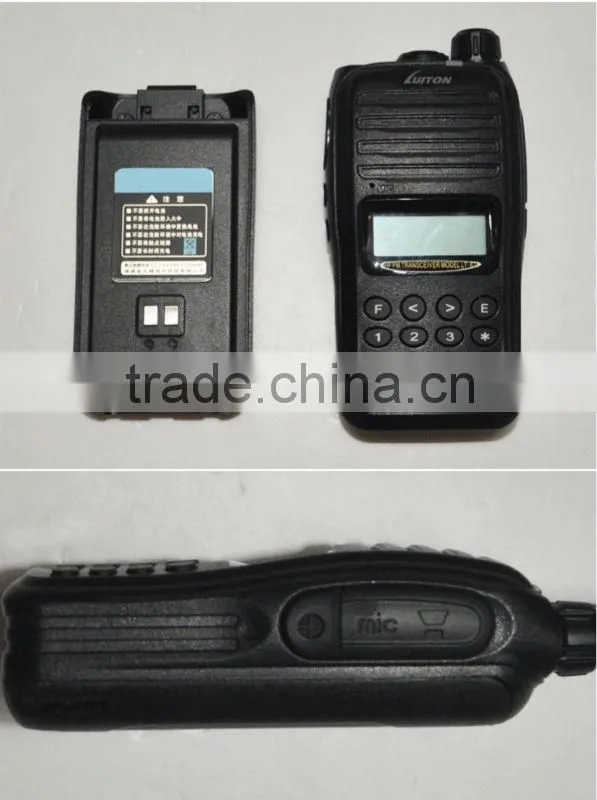

1x battery unit



1x Antenna



1x Belt Clip



1x User’s Manual



1X Power adapter
