LT-770 hi Low Power Selectable Handsfree Two Way Radio

LT-770 hi Low Power Selectable Handsfree Two Way Radio thumbnail-1
LT-770 hi Low Power Selectable Handsfree Two Way Radio photo-1
US$ 40 - 45 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
LUITON Transceiver
Model Number:
LT-770 Interphone
Contact Supplier Request Quote Chat Now
Quanzhou Bond Telecom Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name LUITON Transceiver
Model Number LT-770 Interphone
Type Handheld
Dimensions 104*62*36MM
Frequency Range 136-174/245-246/400-470MHz
Storage Channel 99 Channels
Talk Range 5KM

Specifications

LT-770 handsfree two way radio
CTCSS/DCS
FM Radio, 99 Channels
Warranty: 1 year
Delivery time: 3days after T/T

LT-770 hi low power selectable handsfree two way radio



LT-770 two way radio/ walkie talkie/ transceiver / interphone



LT-770 hi low power selectable handsfree two way radio

Built-in FM radio

Computer / manual program

Built-in 50 groups of CTCSS and 104+1 groups of DCS

Repeater function

Battery indicator

High sensitivity receiver

Scan function

Keypad lockout

Signal strength indicator

High/low power select (1 to 5W)

Standby time: 120 hours

Lower battery warning

LCD & keypad backlit display

Adjustable squelch level

12.5kHz  / 25kHz compatibility

Emergency alarm function



LT-770 hi low power selectable handsfree two way radio

Technical specifications

Model NO.

LT-770V

LT-770U

General

Frequency Band

VHF

UHF

Frequency Range

136-174MHz

400-470MHz

Channel Capacity

99

Operating Voltage

7.2V DC ±15%

Antenna Impedance

50Ω

Channel Spacing

12.5kHz/25kHz

Working Temperature

-30 °C - +60 °C

Frequency Stability

±2.5 ppm

Size (Without Antenna)

104(W)mmx62(L)mmx36mm(D)

Weight(With Battery)

250g

Battery

1500 mAh(Li-ion)

Transmitter

RF Power Output

5W/4W

Modulation Type

F3E

Modulation Distortion

< 5%(300-3000Hz)

Max Freq Deviation

< 5kHz(1000Hz When 100%)

FM Noise

<=-45dB

Receiver

Sensitivity(12Db SINAD)

0.16μV

Selectivity

55dB

Adjacent Channel Selecivity

>=70dB

Noise Respond

>=60dB

FM Noise

30dB/40dB

Modulation Type

8K/16KF3E

Audio Power Output

500mW When Distortion Less Than 10%

Audio Distortion

< 5%

Operating Bandwidth

±3.5kHz/3.75kHz

Standby Current

< 12mA



LT-770 hi low power selectable handsfree two way radio

LT-770 hi low power selectable handsfree two way radioLT-770 hi low power selectable handsfree two way radioLT-770 hi low power selectable handsfree two way radio

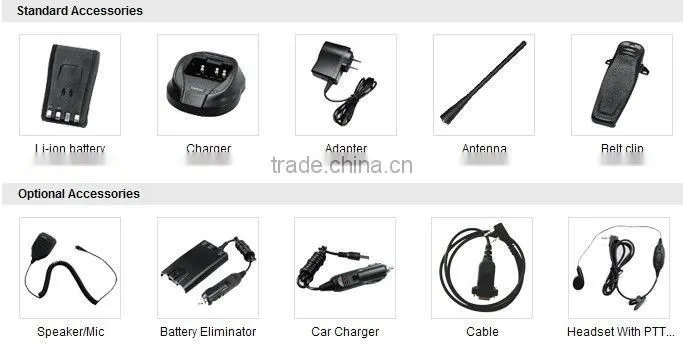

LT-770 hi low power selectable handsfree two way radio

1pc radio body

1pc battery

1pc antenna

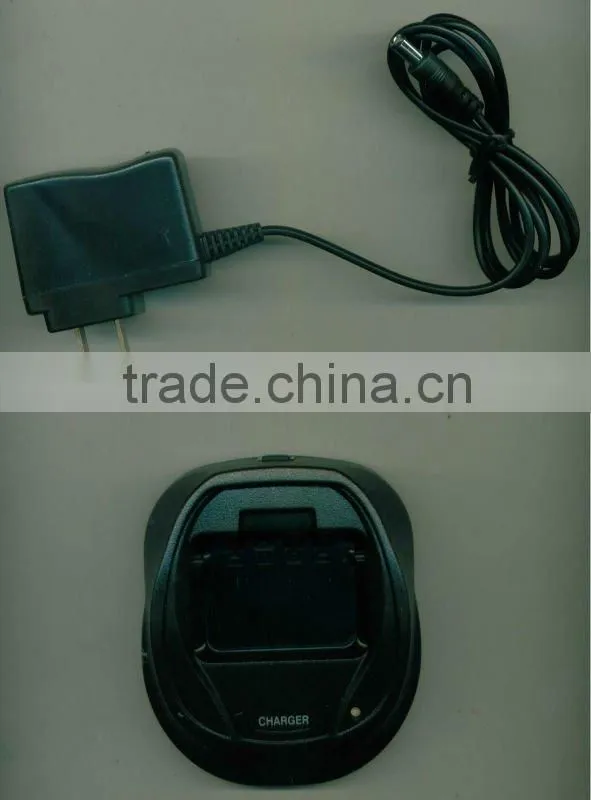

1pc charger+adapter

1pc belt

1pc manual

1pc gift box
