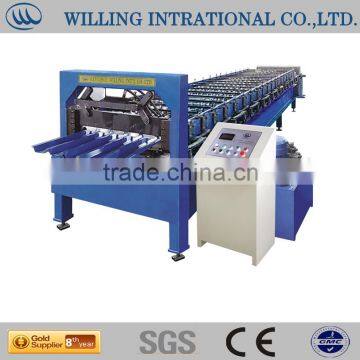

Wave Shape Corrugated Metal Roofing Sheet Roll Forming Machine

 ZheJiang Willing Technology Co., Ltd. is located in Tongxiang economic development zone, which is about 1 hours far from Shanghai.

IBR ROOF FORMING MACHINE

2014 hot sale roof roll forming machine  good quality

 1.Technical parameter:

Material to be rolled                  PPGI or GI

Thickness:                                 0.2-0.7mm

Coil width:                               1000mm

Effective width:                         836mm

Material tension grade               550Mpa

Voltage:                                  380V, 3ph, 50hz

Main motor power:                    4kw

Hydraulic power:                       3kw

Roller:                                     about 17 groups.

Lengths:                                   a ny length can be cutted automatically

Cutting way:                            automatic cutting to length and hydraulic cutting

Driving system:                        chain transmission

Forming speed:                        About 10-12m/min

Machine size:                          About 7500*1500*1300mm (L*W*H)

Machine weight:                       About 6.5 tons

2. Components of machine:

1.Roller Material: high grade No.45 forged steel, Coating with hard chrome.

2.Active Shaft Material: high grade No.45 carbon wrought steel, improved the integrated

   mechanic feature of the shaft.

3.Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.

4.Other Elements: from famous suppliers in China.

5.Cutter Blade: Cr12 mould steel with quenched treatment.

3. Process flow:

Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table

4. Details of the machine and wall panel

 1.Manual decoiler

        1> Inner diameter:450-550mm

        2>Outer diameter: 1500mm

        3>Coil width:1250m

        4>capacity: 5T

2. Forming device

3.Hydraulic cutting

  1>automatic forming, high level safety factor.

  2>easy to control, hydraulic cutting after forming

4.Control system (touch screen and text screen for choice)

       1>Screen:Delta touch screen

       2>PLC: Delta

            3>automatic length and quantity measurement

       4>cutting to length and stop when required quantity is achieved.

5. Usage of  wall panel:

The  roll forming machines can produce various of steel roof and wall panel, it is a new    building materials ,the products are widely used as the roof and wall of factory, warehouse,    garage, gymnasium, exhibition center, cinema, theatre, etc.
