LUITON LT-278 40 channels AM/FM cb radio china

Specifications

LUITON LT-278 40 channels AM/FM cb radio china
1.40 AM/FM channels
2.RSSI indication
3.RF gain control
4.Warranty:1 year

 Features of LT-278  AM/FM cb radio china



Item Name: LUITON LT-278 40 channels AM/FM cb radio china

1. 4W RF power
2. 40 AM/FM channels
3. Channel 9 and channel 19 switch
4. Mode AM/FM switch
5. RSSI indication (4 PCS LED indication)
6. 2 Digit channel indicator
7. RF gain control
8. Volume with power ON/OFF control
9. TX/RX LED indicator

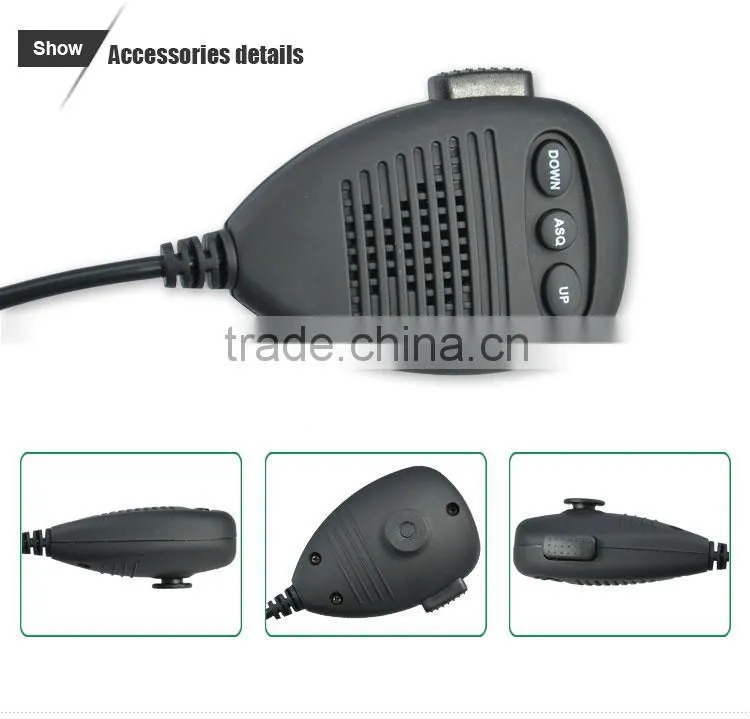

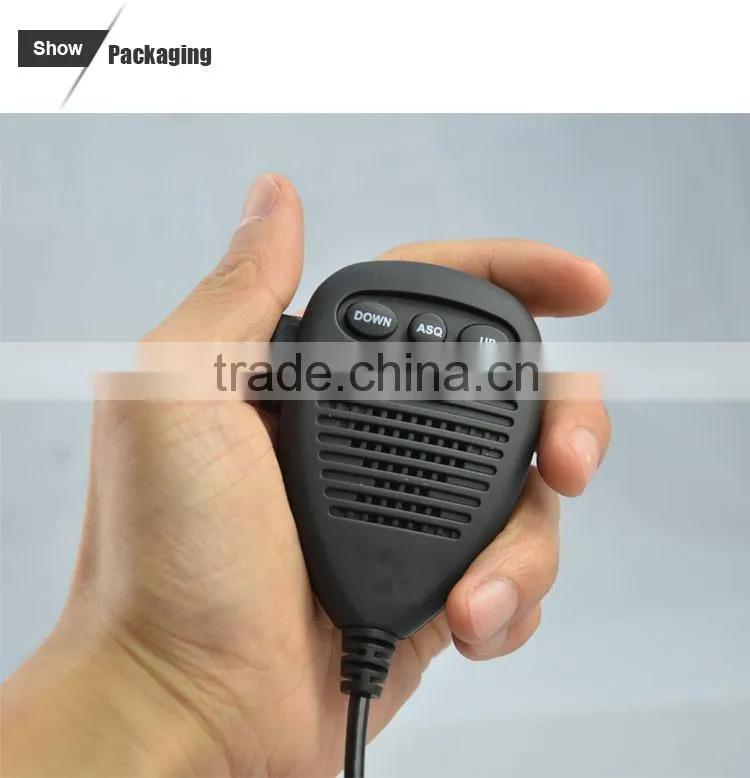

10. Up/Down microphone
11. Front microphone plug
12. Jack for external speaker
13. Manual Squelch
14. ANT  Connetor
15. FREQ. expanding (A, B, C, D, E, F, POLAND and NZ band)



Technical Specifications of  LT-278  AM/FM cb radio china



GENERAL
Channels	40 AM/FM
Frequency range	25.615 - 28.305 MHz
Frequency control	P.L.L.
Operating temperature	-10°/+55°C
DC input voltage	13.8Vdc ±15%
Size	115 (L) x 38 (A) x 150 (P) mm
Weight	0.8 kg
RECEIVER
System	CPU controlled Double conversion super
IF	1° 10.7 MHz / 2° 450 KHz
Sensitivity	-120dBm for 12dB SINAD (FM)
	-107dBm for 12dB SINAD (AM)
Audio output	@10% THD 2.5W at 8 ohm
Audio distortion	<8% at 1 KHz
Image rejection	65dB
Adjacent channel	85dB
Signal ise ratio	45dB
Current drain	220mA (stand-by)
TRANSMITTER
System	CPU controlled P.L.L. synthesizer
Maximum RF power	4W at 13.8Vdc
Modulation	85% to 90% (AM)
	1.8 KHz ±0.2 KHz (FM)
ANT impedance	50 ohm unbalanced
Current drain	1000mA (at no modulation)

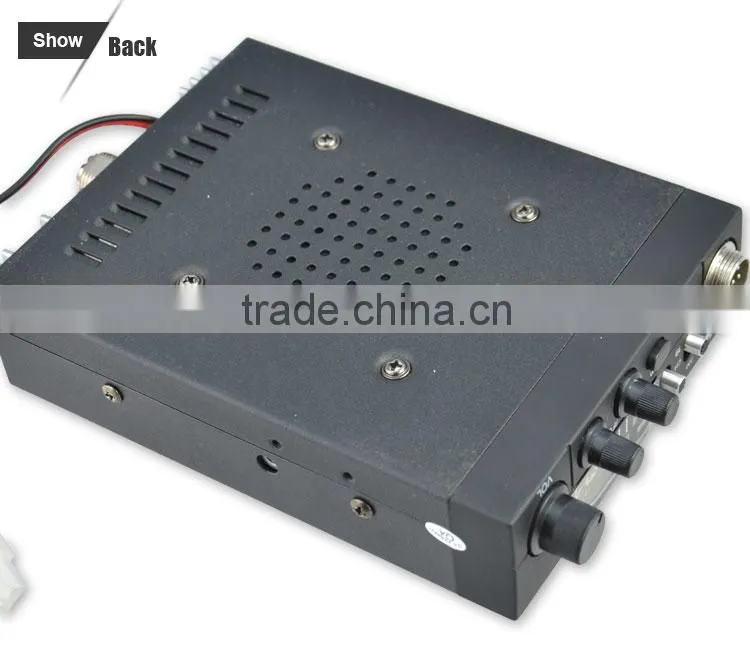

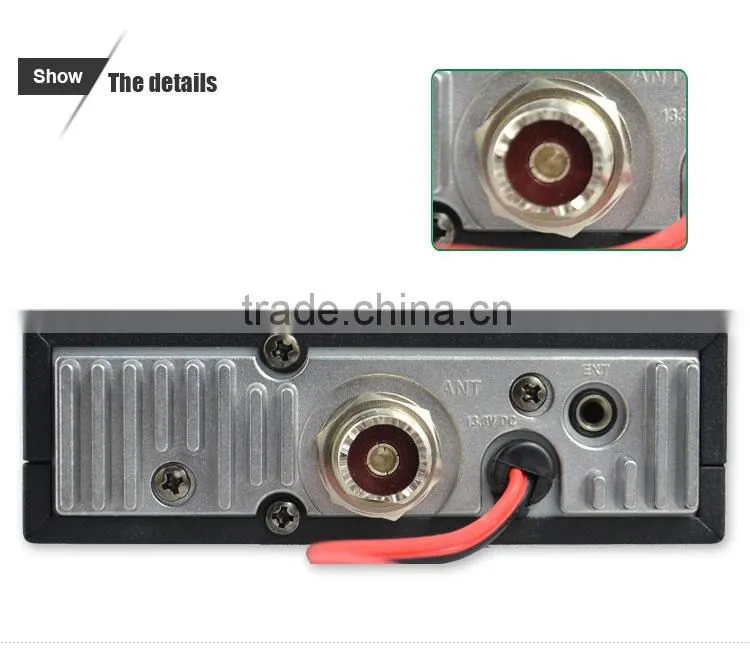

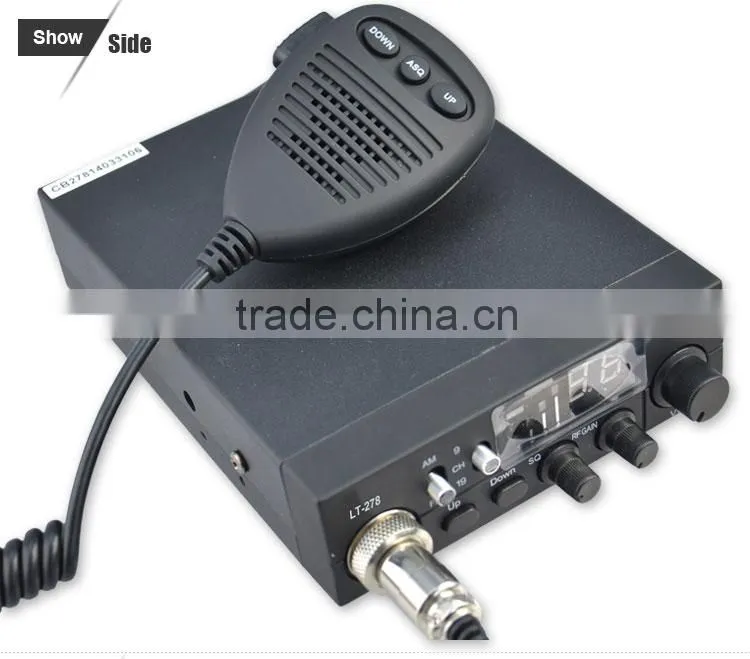

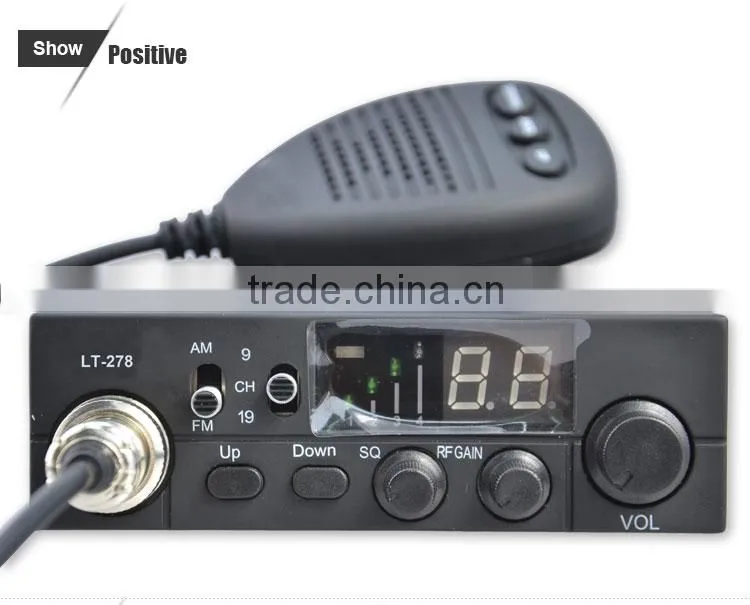

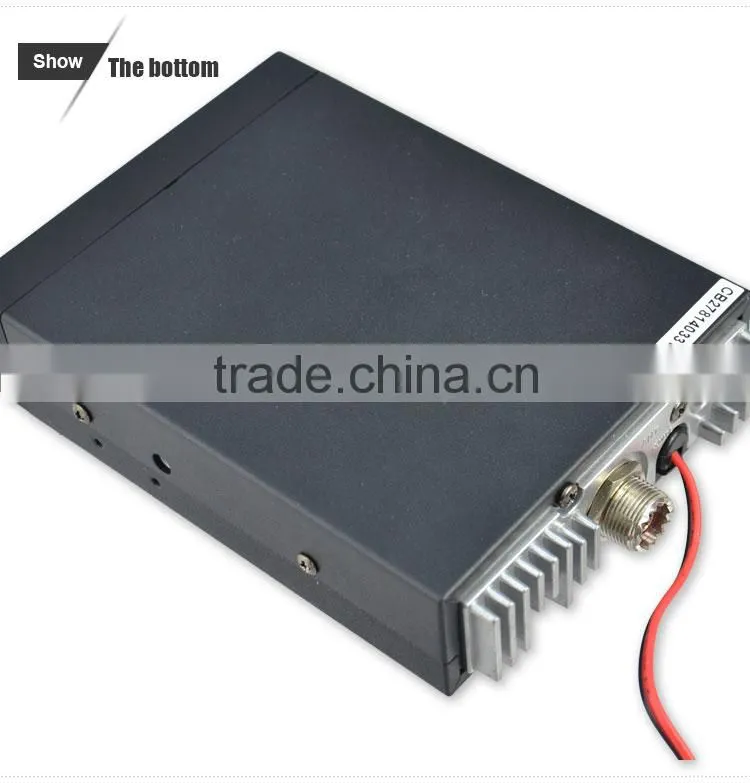

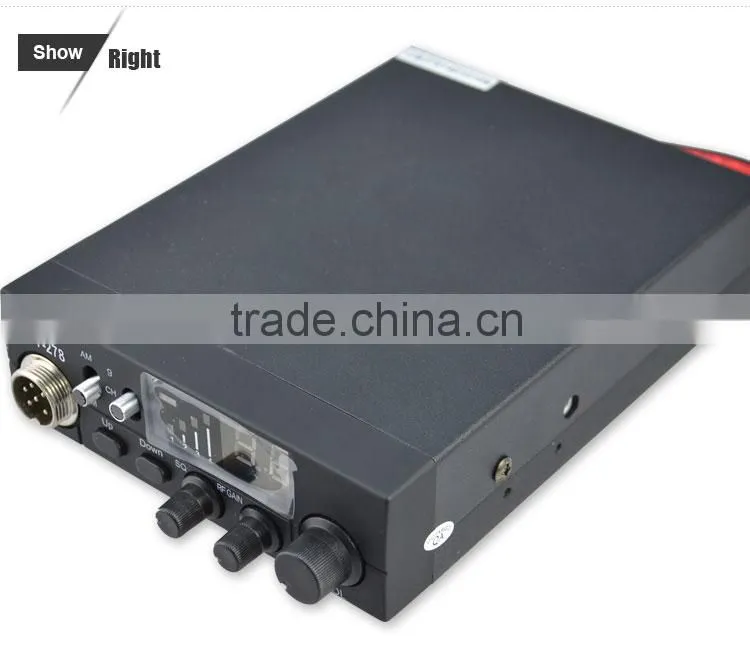

Photos of  LT-278 AM/FM cb radio china

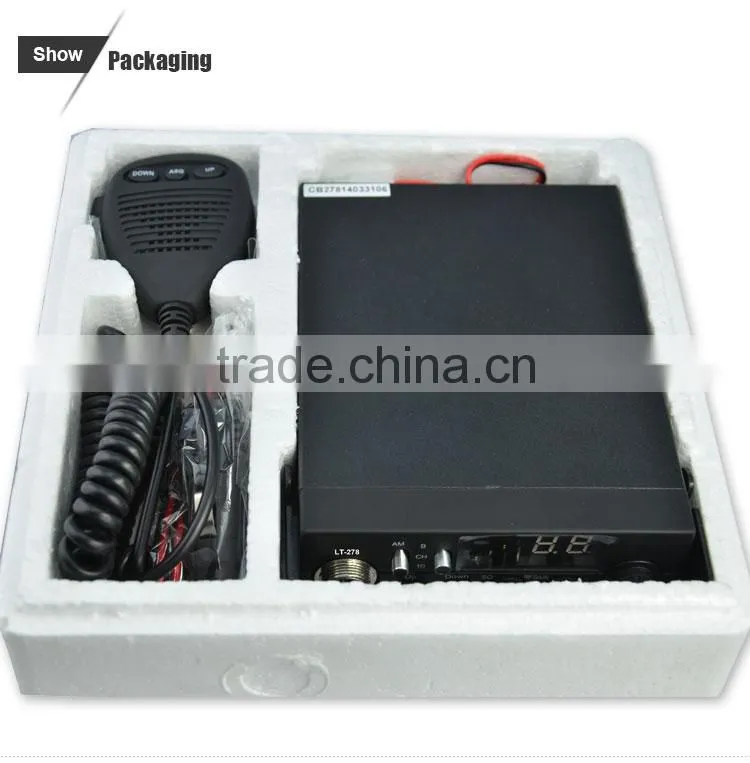

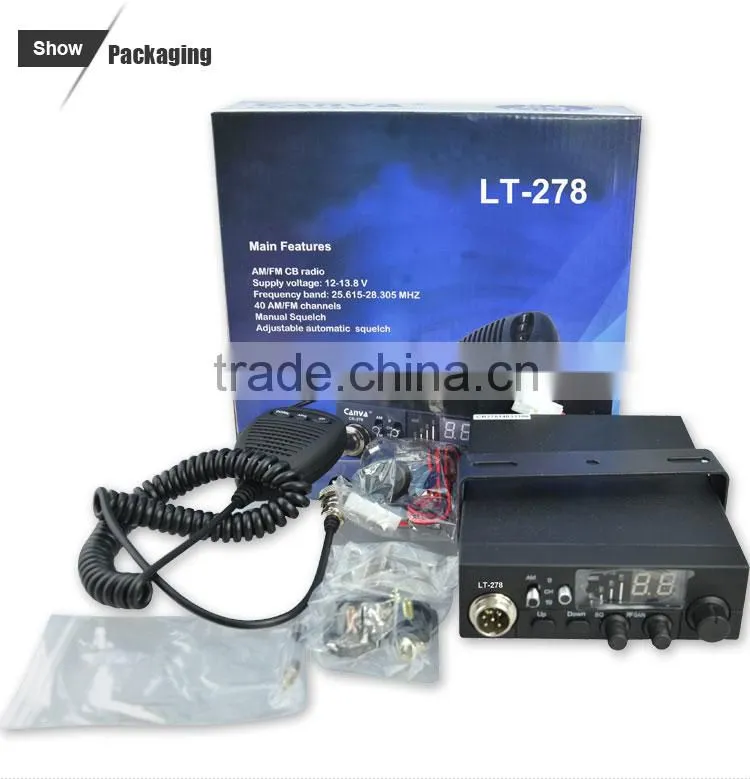

  packing including:

• 1x LT-278 radio body
• 1x Mobile Mounting Bracket
• 1x DC Power Cable

• 1x Manual
