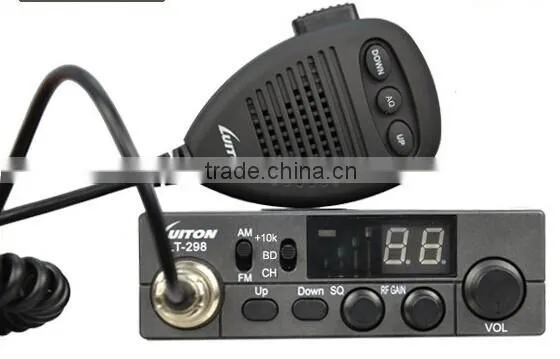

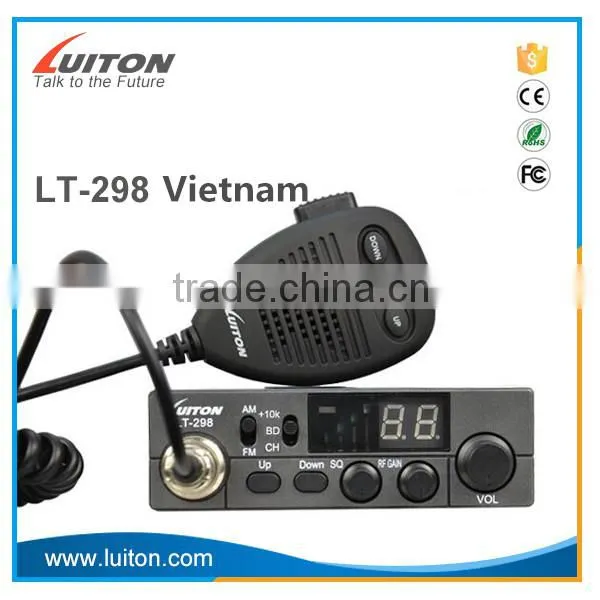

Vietnam LT-298 hf Transmitter 10 Meter cb Radio

Vietnam LT-298 hf Transmitter 10 Meter cb Radio thumbnail-1
Vietnam LT-298 hf Transmitter 10 Meter cb Radio photo-1
US$ 28 - 35 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
LUITON LT-298 10 meter cb radio
Model Number:
LT-298 10 meter cb radio
Contact Supplier Request Quote Chat Now
Quanzhou Bond Telecom Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name LUITON LT-298 10 meter cb radio
Model Number LT-298 10 meter cb radio
Type Vehicle Mouted
Dimensions 115 *38 * 150mm
Frequency Range 26.065-28.755MHz
Storage Channel 240 AM/FM
Talk Range 10KM
Product Description



Features of LT-298 10 meter cb radio

Stable quality as LEGEND II;

8W RF power

240 AM/FM channels

+10KHz switch

AM/FM switchable

26.065-28.755MHz(A,B,C,D,E,F)

Change BAND/CH display by AQ key

With adjustable ASQ

RSSI indication (4-digit LED indication)

2 Digit channel indication

RF gain control

Volume with power ON/OFF control

TX/RX LED indication

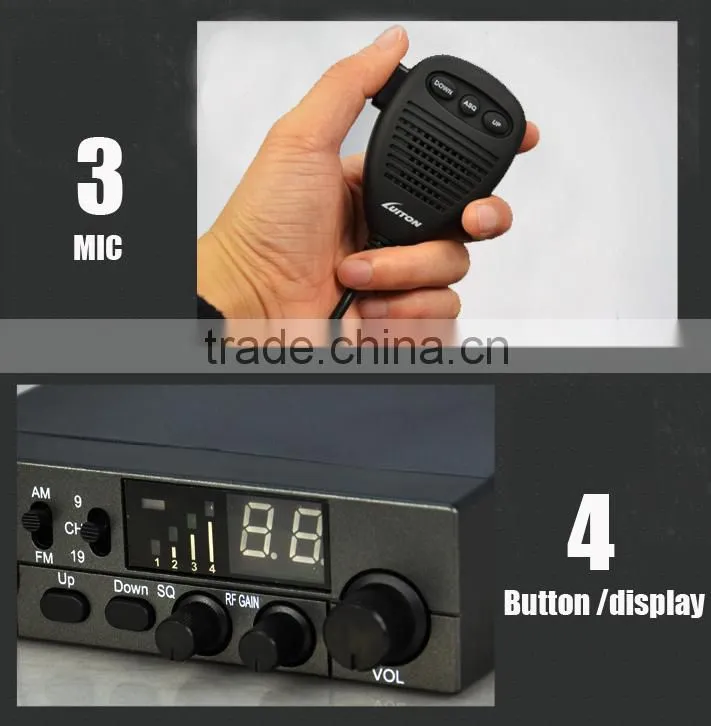

Up/Down microphone

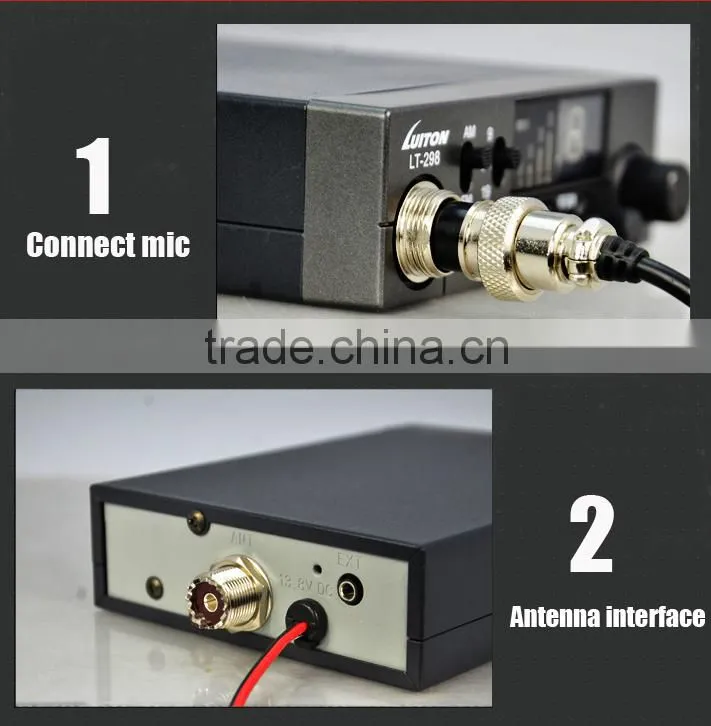

Front microphone plug

Jack for external speaker

Manual Squelch

ANT Connector

Specifications of LT-298 10 meter cb radio

General
Channels

240 AM/FM

Frequency range

26.065 – 28.755MHz
Frequency control    P.L.L.
Frequency Tolerance ±0.005%
Operating temperature   -20°/+55°C
DC input voltage     13.8Vdc ±15%

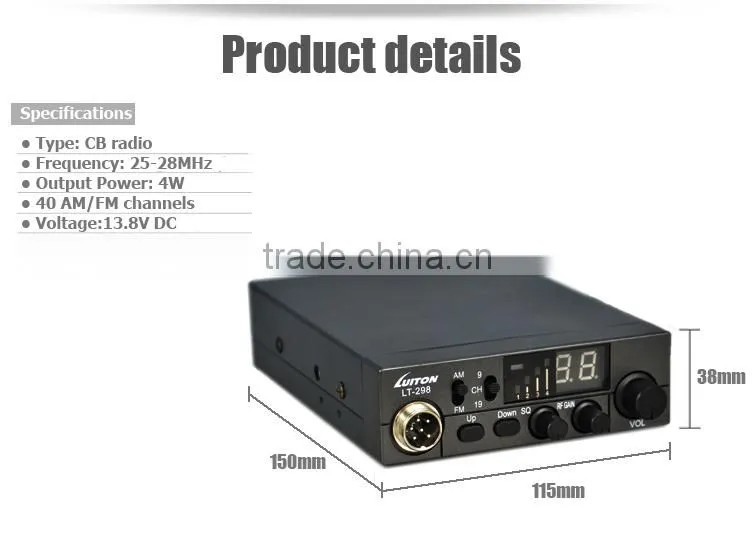

Dimensions (H × W × D) 115mm×38mm×150mm
Weight  0.8 kg
Transmitter
System      CPU controlled Double conversion super
IF   1° 10.7 MHz / 2° 450 KHz
Sensitivity                    -120dBm for 12dB SINAD (FM)
 -107dBm for 12dB SINAD (AM)
Audio output  @10% THD 2.5W at 8 ohm
Audio distortion     <8% at 1 KHz
Image rejection     65dB
Adjacent channel 85dB
Signal ise ratio   45dB
Current drain     220mA (stand-by)
 Receiver
System    CPU controlled P.L.L. synthesizer
Maximum RF power  8W at 13.2Vdc
Modulation        85% to 90% (AM)
2KHz ±0.2 KHz (FM)
ANT impedance   50 ohm unbalanced
Current drain      1500mA (at no modulation)
