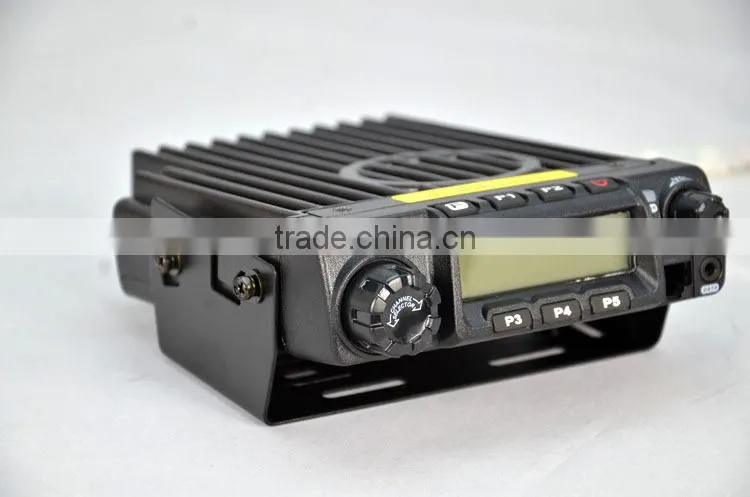

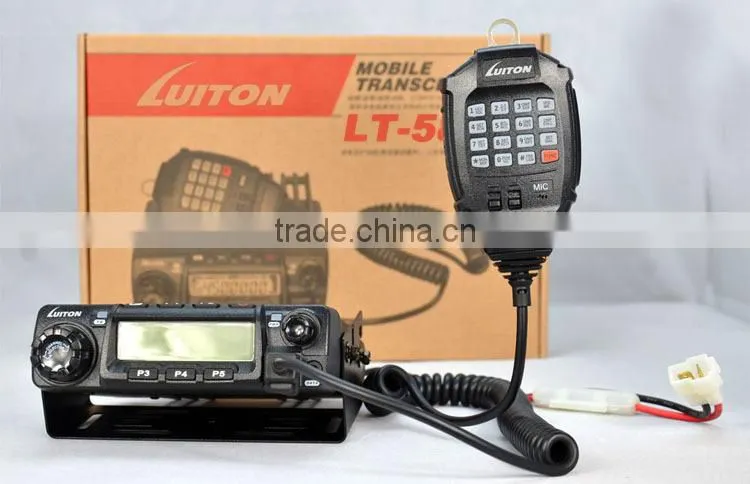

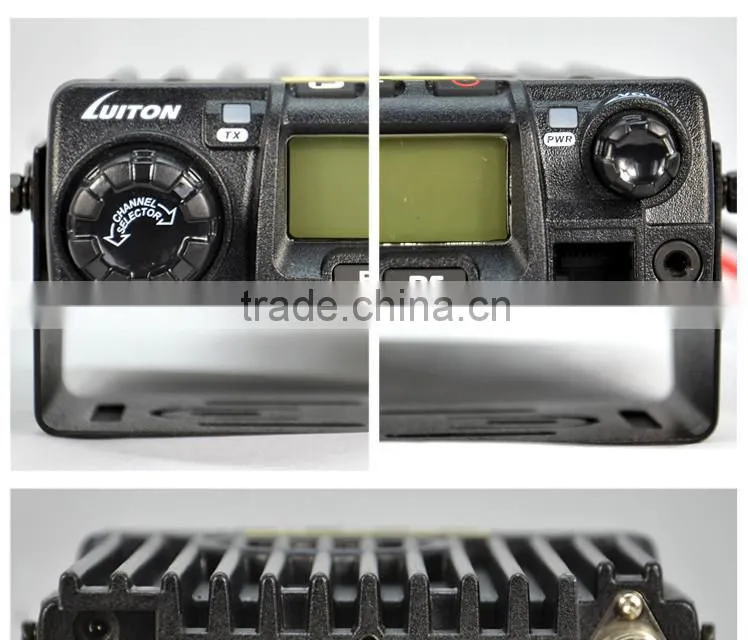

fm radio mobile phone transceiver LT-580 60W transmitter and receiver

FOB Price

USD $100 - $123 / Piece

10 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	luiton transmitter and receiver
Model Number	LT-580 transmitter and receiver	Type	Vehicle Mouted
Dimensions	14519047MM	Frequency Range	136-174/245-246/400-490MHz
Storage Channel	200 Channels	Talk Range	30KM

^{Frequency Range: VHF: 136-174MHz/245-245.9875MHz (220-260MHz) UHF: 400-480MHz}
^{Output Power: VHF: 25W/60W UHF: 45W/25W}
^{1750Hz Tone}
^{CTCSS/DCS setting & scanning}
^{0-9 SQL grade setting}
^{Frequency/Channel scanning}
^{High/Low power selectable}
^{Voice Compander}
^{Repeater offset shift}
^{Keypad lock function}
^{Contact book}
^{Battery voltage display}
^{DTMF/2 tone/5 tone}
^{ANI ID}
^{Remote kill/ stun/ activate/ revive}
^{Emergency alarm}
^{Wide/Narrow band setting}
^{TX inhibit}
^{Busy Channel Lock-Out}
^{Channel name editing}
^{Reverse frequency}
^{Talk around}
^{Scrambler (Optional)}
^{Voice prompt}
^{Time-out Timer}
^{Auto Power off}
^{VFO step setting:5/6.25/10/12.5/20/25/50KHz}

General
Frequenvy Range	136-174/245-246/400-490MHz
Channel Capacity	200 channels
Channel Spacing	5/6.25/8.33/10/12.5/15/20/25/30/50KHz
Freruency Stability	2.5ppm
Operating Temperature	-20°C ~ + 60°C
Operating Voltage	13.8V DC ± 15%
Dimension(HxWxD)	145mm x190mm x47mm
Weight(with bracket)	1200g
Receiver
Reference Sensitivity	0.25V / 0.35V
Operating Bandwidth	60dB@ 12.5KHz /70dB@ 25KHz
Adjacent Channel Selectivity	60dB@ 12.5KHz 70dB@ 25KHz
Inter-modulation Rejection	≥60dB/ ≥65dB
Spurious Response Rejection	≥70dB
Rated Audio Response	+1-+3dB
Rated Audio Distortion	<5%
FM Hum&Noise	≥40dB@25KHz /≥45KHz @ 12.5KHz
Transmitter
RF Power	45W/25W(UHF)/60W/25W(VHF)
Frequency Modulation	11kΦF3E / 16kΦF3E
Modulation Distortion	<5%
FM Noise	≥36dB@ 25KHz /≥40KHz @ 12.5KHz
Adjacent Channel Power	≥60dB@ 12.5KHz /≥70KHz @ 25KHz
Audio Response	+1-+3dB
Audio Distortion	<5%

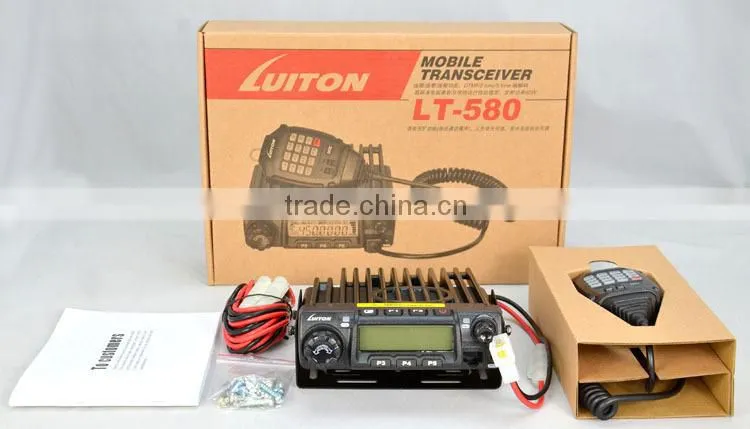

Packaging & Shipping
