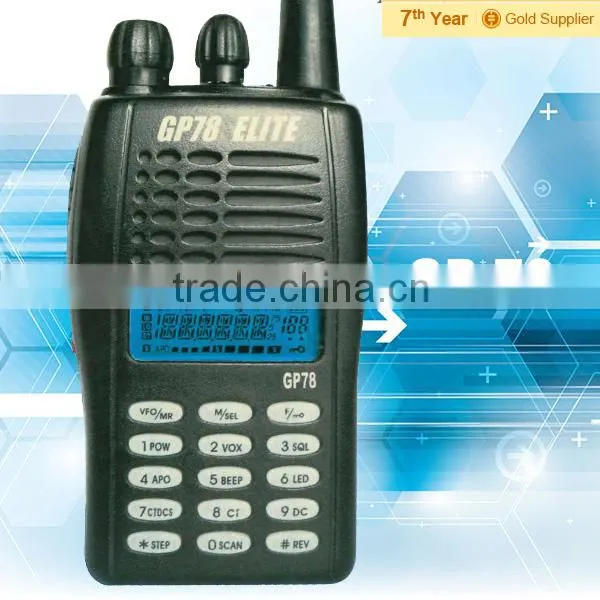

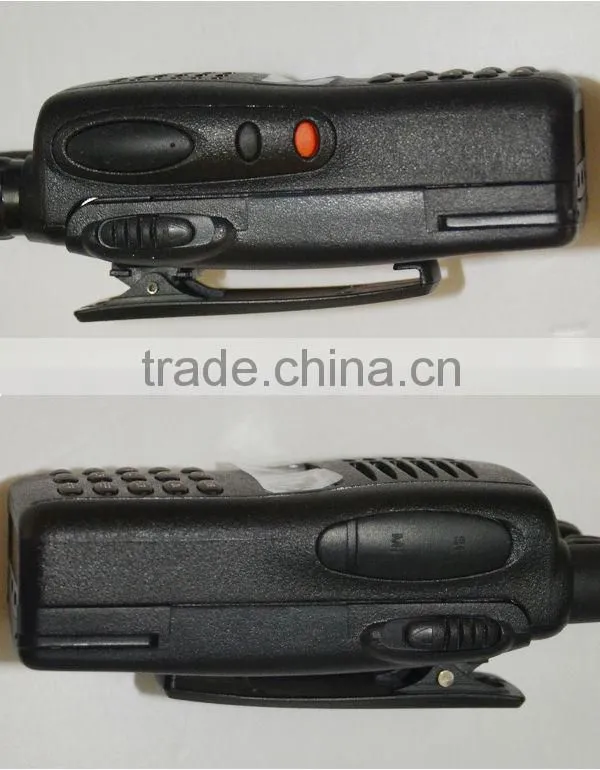

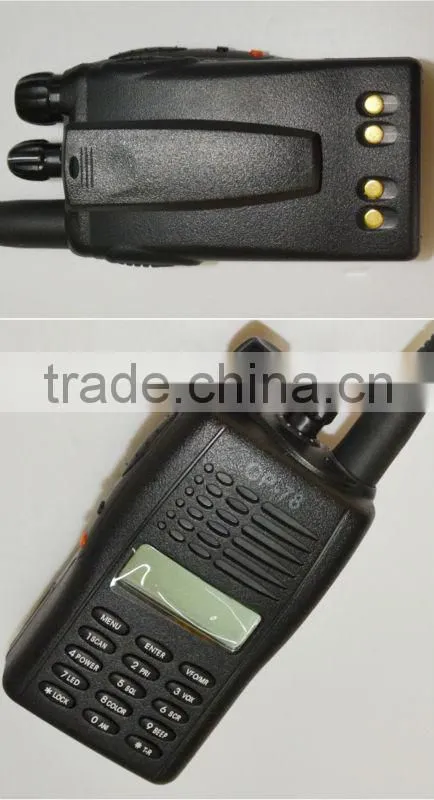

Quanzhou amateur radio fm GP-78 Elite 199 channels

Specifications

Handheld Quanzhou amateur radio fm
Number of Channel 199
Frequency Spacing 5.6.25.10.12.5.25kHz
Warranty 1year





Quanzhou amateur radio Feature:



1,Output power VHF5W/UHF4W

2,199groups for memory channels

3,Channel step (5/6.25/10/12.5/25KHZ)

4,VOX function

5,CTCSS/DCS

6,Multifunction scan

7,Three color for LCD to adjust

Range (V)                  137~173MHz

Frequency Range (U)                  400~470MHz

Number of Channel                   199

CTCSS                             50  CTCSS

                                   105  DCS

Frequency Spacing                  5.6.25.10.12.5.25KHz

Modulation                         FM

Mode of Operation                   Simplex or Semi-duplex

Antenna Impedance                  50Ω

Operating Voltage                    DC7.2V

Current Consumption                 Cathode darth-plate

Operating Temperature                -1~+55

Output power                       ≤5W

Spurious emissions                   ≤-65dB

Current Consumption                 ≤1.6A(transmit 4W)

Maximum Deviation                  ≤±5KHz

Sensitivity Adjust                    2~20mV

Frequency Stability                   ±5ppm

Usable Sensitivity                     0.2μv

Audio Output                       ≥0.5w

Audio Distortion                    ≤10%

Audio Frequency Response            300~3000Hz

Occupied Bandwidth                 ≤16KHz

We will not advance,if changing the technique specification.

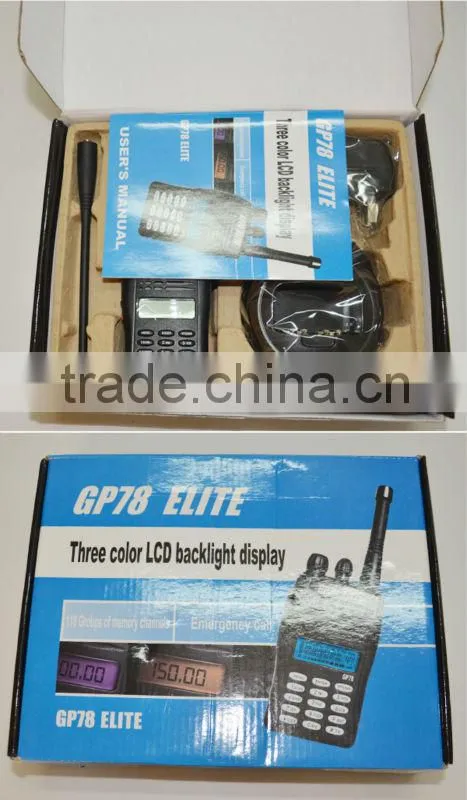

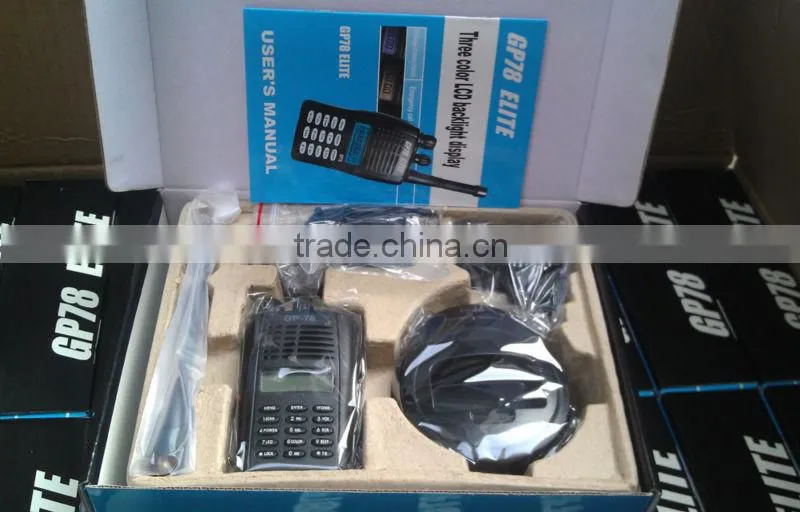

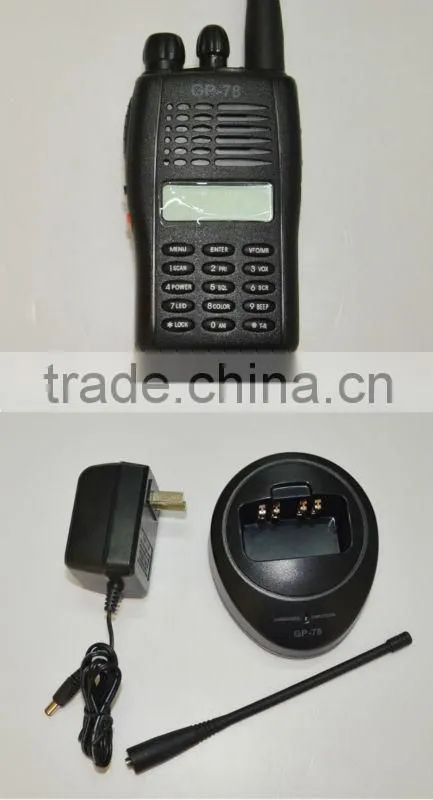

• 1x Quanzhou amateur radio fm GP-78 Elite (100% brand new)
• 1x  1500mAh Li-Ion battery unit
• 1x Antenna
• 1x Belt Clip
• 1x User’s Manual
• 1X Power adapter

Condition, Payment and Shipping:



1 We glad to ship to World Wide.

2 Please make payment by Paypal, Western union, bank wire transfer (T/T) after confirm the order.

3 Transportation: DHL, FedEX, UPS, TNT or EMS, HongKong post airmail. By air & by sea.

4 Item will be shipped out within 3-7 working days upon receipt of the payment. (Excluding Saturday, Sundays & China Holidays)

5 Shipment may arrive within 3–16 days. Actual delivery days would be different for varies countries.

6 We do single and combine shipment.



Payment Policy:

We could only accept payment by Western Union/TT/PayPal in this stage.

Warranty Service:

We 100% Guarantee your Satisfaction

1 Please report us if there are any problem, we will solve it ASAP.

2 This items comes with 1 YEAR

Equivalent replacements can be provided with shipment of your next order if the products are broken for inartificial factors within 1 YEAR; however photos are needed for us to find the factors of damaging them.

3 Shipping and handling fees are not refundable for return or exchange items.
