Flash Torch and fm Radio Uv-6r Dual Band Radio Vhf Uhf

Flash Torch and fm Radio Uv-6r Dual Band Radio Vhf Uhf thumbnail-1
Flash Torch and fm Radio Uv-6r Dual Band Radio Vhf Uhf photo-1
US$ 30 - 40 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
LUITON dual band radio vhf uhf
Model Number:
UV-6R dual band radio vhf uhf
Contact Supplier Request Quote Chat Now
Quanzhou Bond Telecom Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name LUITON dual band radio vhf uhf
Model Number UV-6R dual band radio vhf uhf
Type Handheld
Dimensions 110 * 58 * 32mm
Frequency Range VHF136-174MHz and UHF 400-480MHz
Storage Channel 128 channels
Talk Range 3-5KM

Specifications

Flash torch and fm radio uv-6r dual band radio vhf uhf
-136-174MHz & 400-480MHz
-VOX/FM Radio Built-in
-Flash torch
-5w





Product Description

Features of  Flash torch and fm radio uv-6r dual band radio vhf uhf :



Dual band,dual display

5Watts power output,128 channels

Flash torch

FM radio

VOX

Big LCD,voice prompt

Emergency alarms

High/Low Power Switchable

Auto Battery Save

Busy Channel Lockout

CTCSS-50/CDCSS-105

Humanized menu

TOT (Time-out timer)

ending sound silence

With/narrow Bandwidth

Selected call

Keypad lock

PC Programmable



  Technical Specifications of   Flash torch and fm radio uv-6r dual band radio vhf uhf :





General

Frequency Range

136-174MHz & 400-480MHz (dual band)

Channel No.

128

Channel Spacing

2.5/5/6.25/12.5/20/25KHz

Voltage

DC7.2V

Battery

1500mAh(Li-Ion)

Frequency Stabilization

±2.5ppm

Operating Temperature Range

-20°C~+55°C

Antenna Impedance

50Ω

Working Mode

Simplex for same/different channel

Dimension(without antenna)

110 * 58 * 32mm

Transmitter

RF Power Output

4W/1W

Modulation Type(Wide/Narrow)

16KØF3E  / 11KØF3E

 Spurious power

≤7.5uW

Maximum Frequency Deviation

≤5KHz/≤2.5KHz

Adjacent channel  power

≤-65dB/≤-60dB

Signal to Noise Ratio(Wide/Narrow)

≥-45dB/≥-40dB

Frequency Deviation

0.7 ± 0.1KHz/ 0.4 ± 0.1KHz

Modulation sensitivity

8-12mV

TX Current

≤1.4A

 Receiver

Sensitivity

-122dBm(12dB SINAD)

Audio Power

1W

Audio distortion

<10%

 Intermodulation(Wide/Marrow)

≥65dB/≥60dB

Adjacent channel selectivity(Wide/Narrow)

≥65dB/≥60dB

Clutter rejection

≥65dB

RX Current

≤380mA

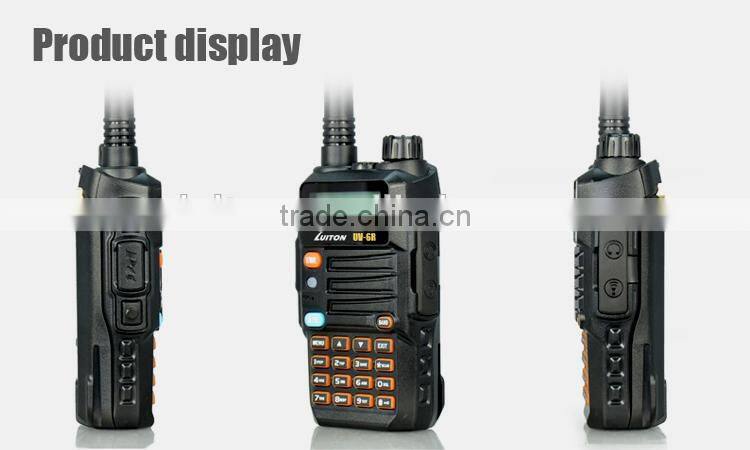

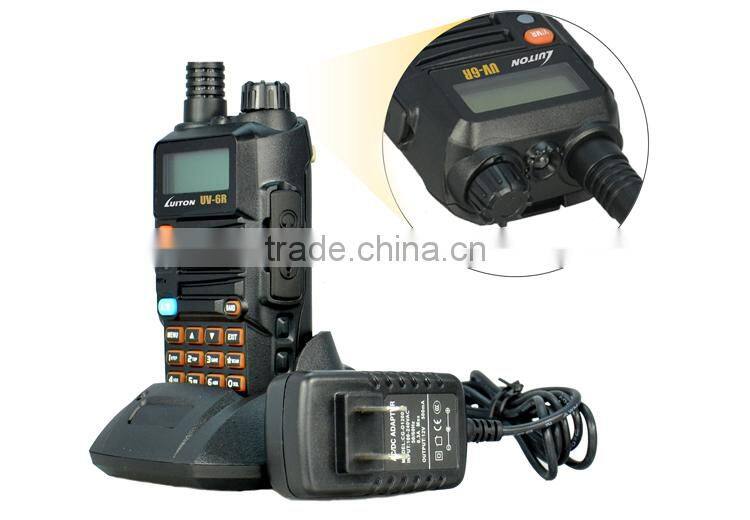

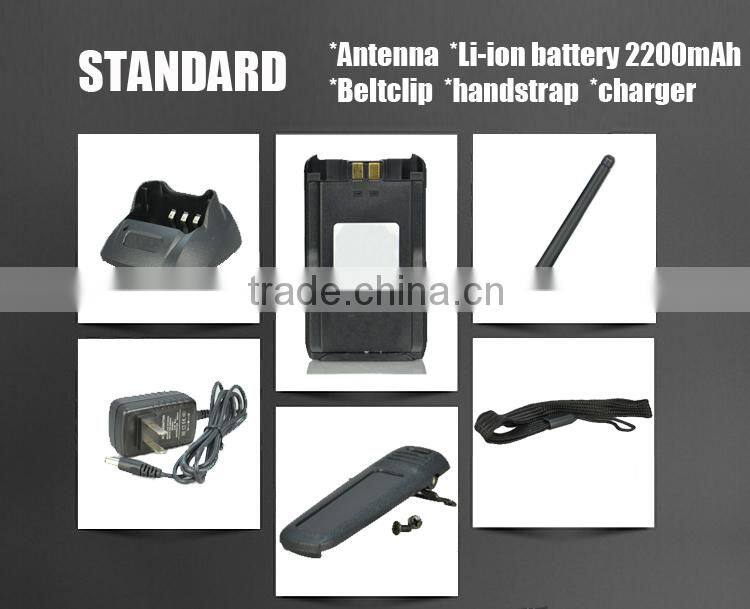

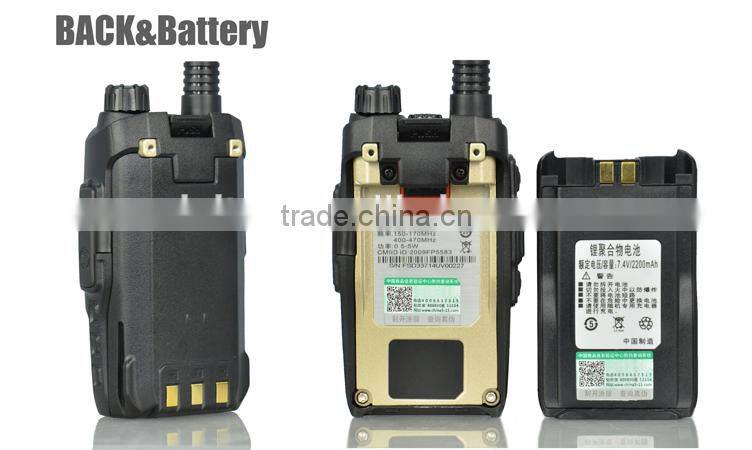

  Photos of   Flash torch and fm radio uv-6r dual band radio vhf uhf :



 Flash torch and fm radio uv-6r dual band radio vhf uhfFlash torch and fm radio uv-6r dual band radio vhf uhfFlash torch and fm radio uv-6r dual band radio vhf uhfFlash torch and fm radio uv-6r dual band radio vhf uhfFlash torch and fm radio uv-6r dual band radio vhf uhf



Packaging & Shipping



Flash torch and fm radio uv-6r dual band radio vhf uhf


Our Services

Flash torch and fm radio uv-6r dual band radio vhf uhf
