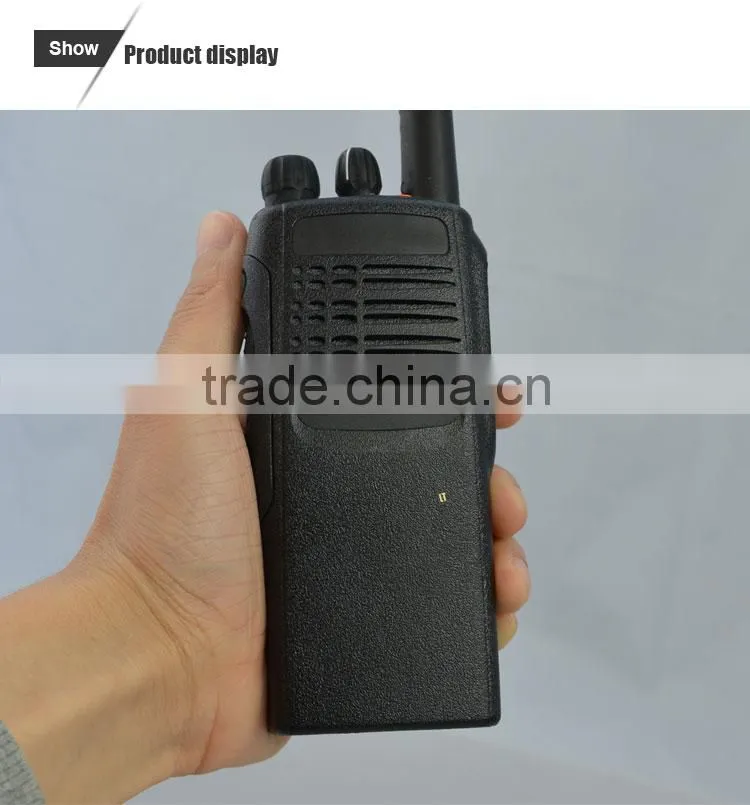

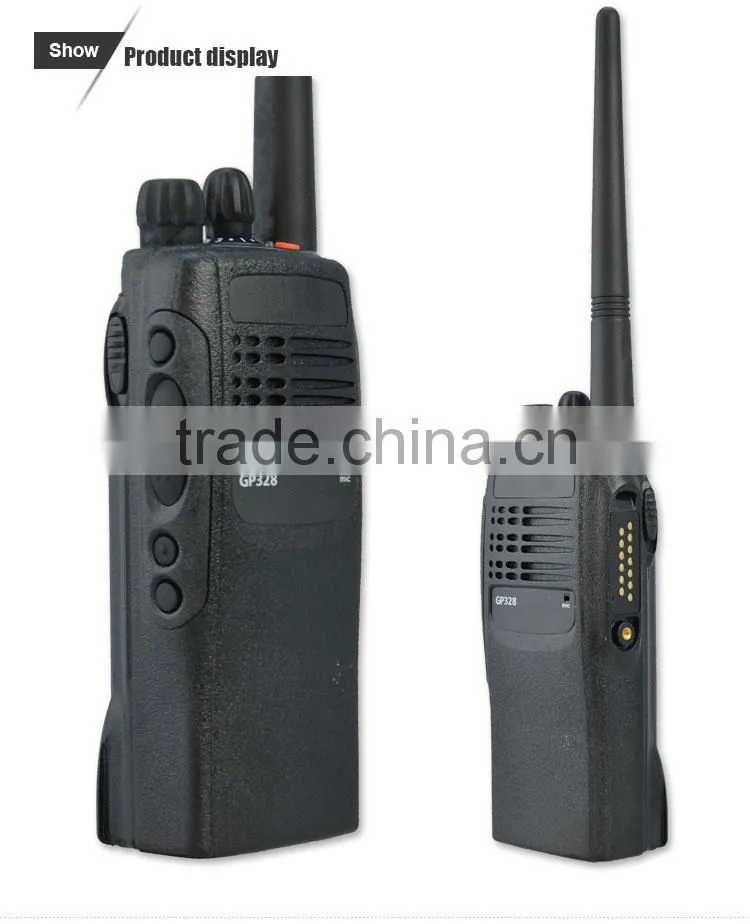

GP-328 Handheld Professional Two Way Radio
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
LUITON professional two way radio
Model Number:
GP-328 professional two way radio
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LT-004 Luiton Uhf Handheld HamradioNegotiableMOQ: 500 Pieces -
LT-25W LUITON 25W/10W/5W Tri-power Optional Police Handheld Two Way RadioUS$ 59 - 65MOQ: 10 Pieces
-
Amateur Radio Vhf TH-F5 Uhf Transmitter and ReceiverUS$ 28 - 38MOQ: 100 Pieces
-
Quanzhou LT-20 Walkie TalkieUS$ 30 - 35MOQ: 100 Pieces
-
NEW Luiton Lt-8w High Power 7w Dual Band 2 Way RadioUS$ 27 - 37MOQ: 100 Pieces
Place of Origin
Fujian, China
Brand Name
LUITON professional two way radio
Model Number
GP-328 professional two way radio
Type
Handheld

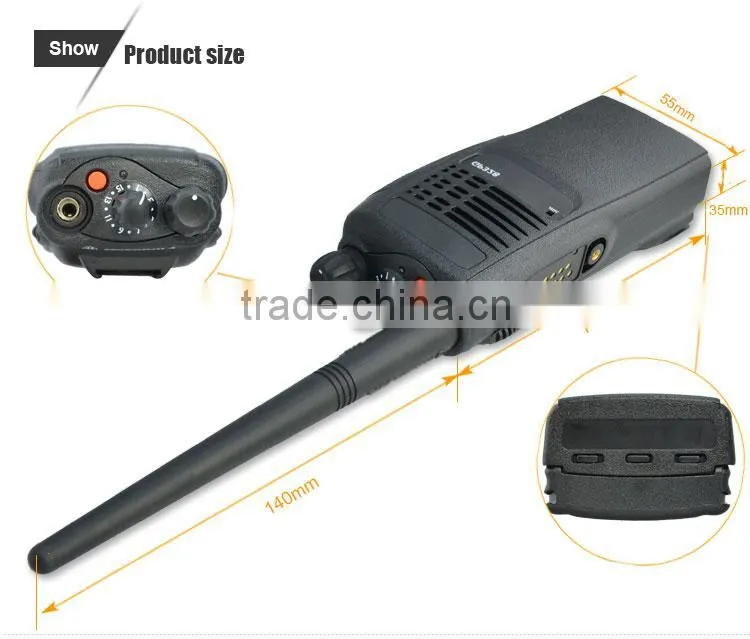

Dimensions
137mm x 57.5mm x 37.5mm
Frequency Range
VHFor UHF
Storage Channel
16 channels
Talk Range
3-5KM
Specifications
GP-328 handheld professional two way radio1.Frequency:vhf or uhf
2.16 channels
3.Ouput power:5W
4.VOX,TOT
Product Description

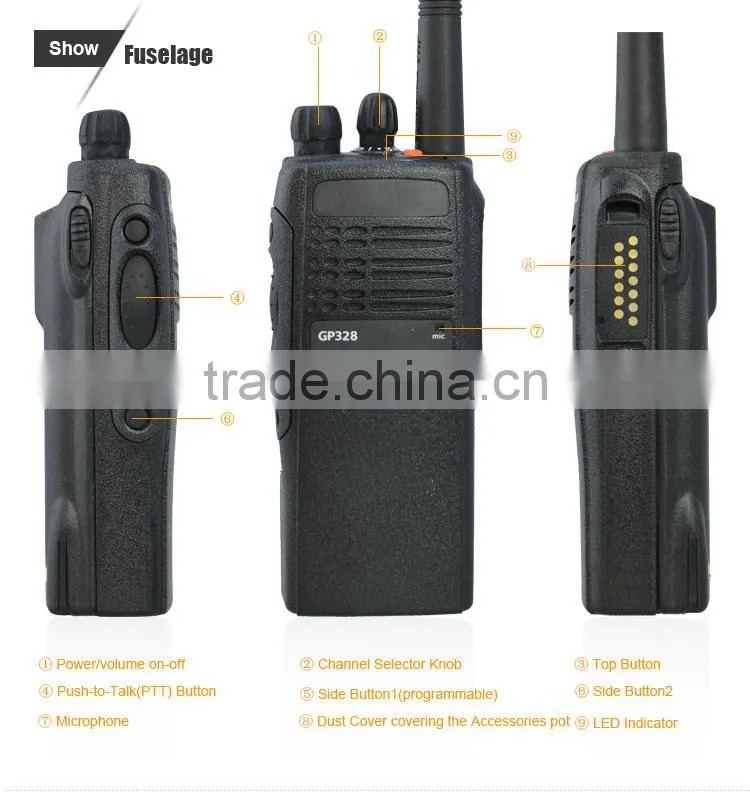

Features GP-328 handheld professional two way radio
- X-PAND™ Audio Technology
- Emergency Siren
- Switchable RF Power Level
- Programmable Channel Spacing 12.5 / 25 kHz mode
- Repeater/Talkaround Enable/Disable
- Internal Voice Operated Transmission(VOX)

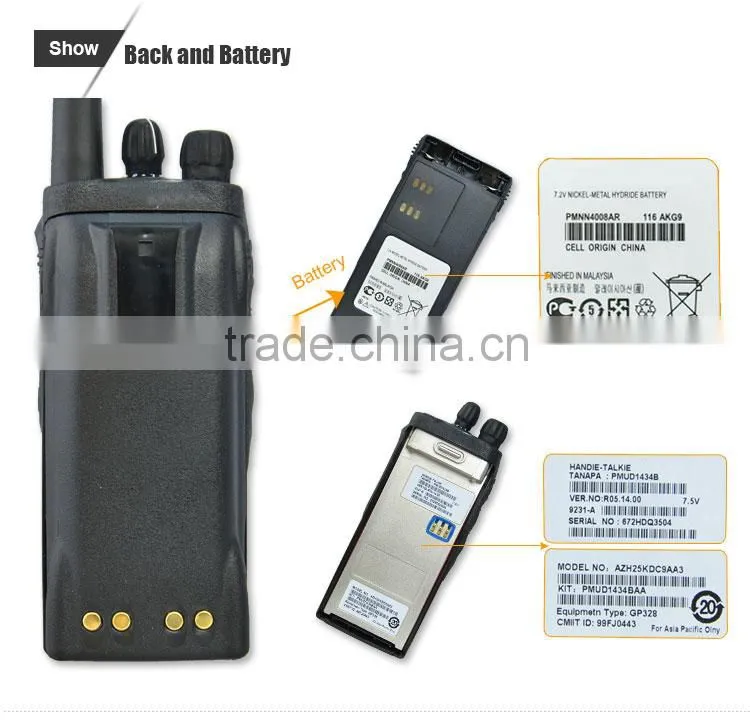

- NiCD Battery or the lightweight Lithium Ion battery
- Tight / Normal Squelch
- Battery Strength Indicator:Tri-colour LED Battery Gauge with early warning on low battery strength.
- Name & Tone Tagging:Tone tagging only with capability to assign up to 8 different ringing tones to 8 specific users/talkgroups.
- Channel Scan
- Time-Out-Timer
- PL/DPL
- Busy Channel Lockout
Technical Specifications GP-328 handheld professional two way radio communication
| GENERAL | ||
| Frequency: |
29-42 /35-50 /136-174 /330-400 / 403-470/450-527 (MHz) | |
| Channel Capacity: | 16 Channels | |
| Power Supply: | Provided through rechargeable battery - 7.5V | |
| DIMENSIONS: | H x W x D (Radio footprint height excluding knobs) | |
| With Standard Battery: | 137mm x 57.5mm x 37.5mm | |
| WEIGHT: | 420 gm | |
| TRANSMITTER | ||
| SPECIFICATION | VHF / UHF | |
| Frequency (MHz) | 136-174 / 330-400 / 403-470 / 450-527 | |
| Frequency separation | Full bandsplit | |
| Channel spacing | 12.5 / 20 / 25kHz | |
| Freq Stability:(-30 to 60,+25oCRef.) |
+/- 0.00025% | |
| Power |
5W (VHF) 4W (UHF) | |
| Modulation limiting | ±2.5 @ 12.5kHz, ±4.0 @ 20kHhz, ±5.0 @ 25kHz | |
| FM Hum & Noise | -40 dB | |
| Conducted/Radiated Emission | -66 dBw | |
| Modulation FCC Type | 12.5 kHz 11K0F3E | |
| 25 kHz 16K0F3E | ||
| Audio Response ( from pre-emphasis 300-3000Hz) 6 dB/octave | +1 to -3 dB | |
| Audio Distortion | 3% | |
| RECEIVER | ||
| SPECIFICATION | VHF / UHF | |
| Frequency (MHz) | 136-174 / 330-400 / 403-470 / 450-527 | |
| Frequency separation | Full bandsplit | |
| Sensitivity (12dB SINAD)EIA | .25µV | |
| Intermodulation(EIA) | 70 dB | |
| Adjacent Channel Selectivity | 60 dB @ 12.5kHz, 70dB @ 25kHz | |
| Spurious Rejection | 70 dB | |
| Rated Audio | 500 mW | |
| Audio Distortion | 3% | |
| Hum and Noise | -45 dB @ 12.5kHz, -50 dB @ 25kHz | |
| +1 to -3dB | ||
| Conducted Spurious Emission | -57dBm < 1Ghz, -47dBm > 1Ghz, FCC Part 15 | |

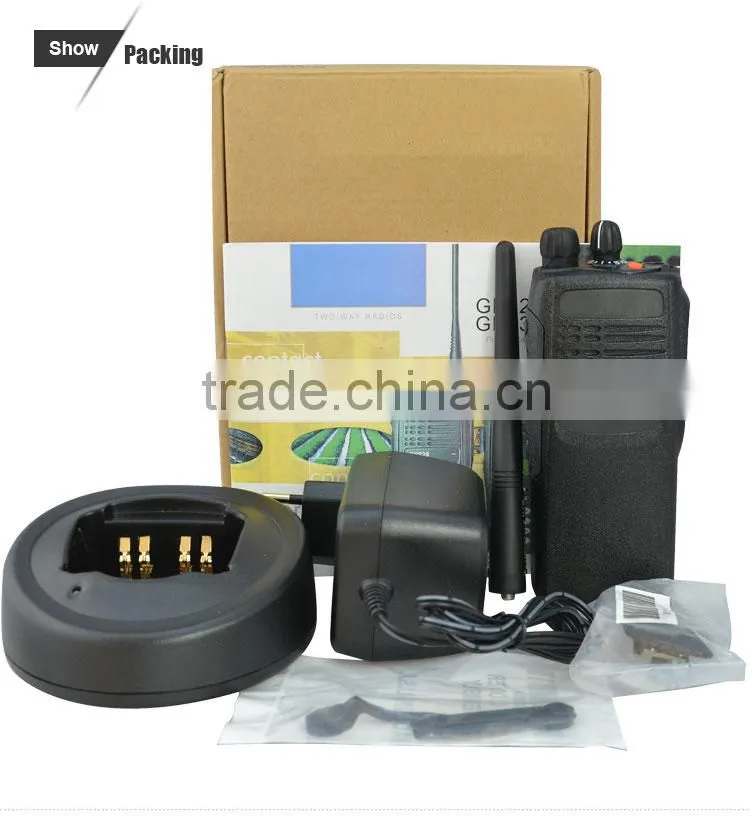

Packaging & Shipping
