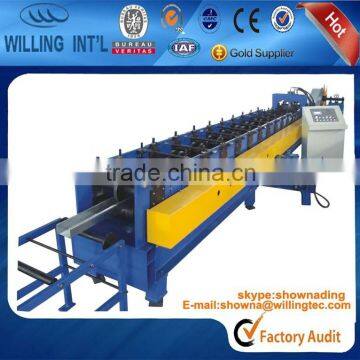

Metal Structure steel C Purlin roll forming machine c purlin

Future science and technology C Z steel purlin concrete molds for floors

Parameters of the machine:

Machine Components

Whoking Flow

Uncoiling→Sheet Guiding→Straightening &Levelling→(Hole Punching)→Measuring Length &Shearing→Roll Forming→Sheet to support table.

Detailed Picture

1) Coil Feeding Equipment: Consists of one uncoiler with capacity of 3000kgs and its base. The steel sheet is

manually fed to the guiding equipment under the function of friction and traction.

2) Guiding Equipment :  Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment

3) Mainframe Transmission :Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet.

4) Roll forming system: The main frame of machine is welded separately and the outside wall is connected by screw after being rotoblasted on the surface.The rollers are surface-chromeplated after being machined by the exact machine tool.

5)Pressing equipment:   After formed the shape of the tile panel, pressing the tile panel with pressing equipment which ensures the shape lasting and more beautiful.

6) Post Cut Equipment: The length and blocks can be set by the buyer through the control panel, when reach the set length, the machine will cut the panel automatically. The cutting is finished under the power of hydraulic station which guarantees the precision of cutting. The cutting blade shall be change when the size of purlin is changed. The machine is shipped with cutting blades with all sizes of C purlin.

 7) Hydraulic Station: Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.

 8) PLC Control Panel: The electric controlling system of this machine consists of five parts: operating system, screen, PLC, transducer and strong electricity part. The controlling system of this machine are imported from Mitsubishi company of Japan. The system uses modularized structure and has convenient, reasonable, canonical wiring arrangement, and its maintenance is quite easy. The independent operating console facilitates the mutual dialogue between the operator and the machine. The operation is easy and steady and can be choosed operation by manual or automatically.

Packaging

1. Main machine body is loaded naked (tighten to container with steel wire rope). But the rollers will be packed by bubble plastic sheet 2. Sea-worth export package
