Warehouse rack carton flow racking system

Carton Flow Rack, with its tilted shelves which improve visibility and order accuracy, is the perfect answer for split case or piece picking.

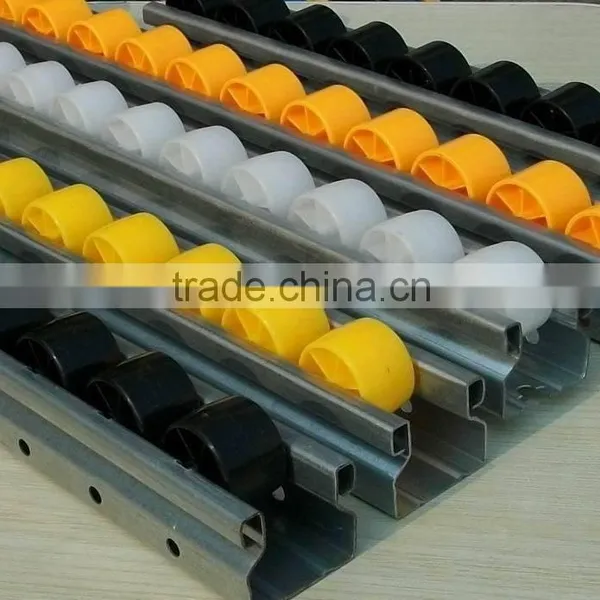

The racking is developed from the medium duty racking. Aluminum or steel roller rail are equipped between a pair of beams per layer to form a slope of 3 degree, and under the driven of gravity, product moved from the loading side to the picking side of the rack, "first in first out" of goods are realized.

 The height of the racking is normally lower than 2.5M  and the loading capacity of each layer is 1000kg at the most.  Shelves can also be adjusted to meet your picking height requirements.

Usage and Characters:

1.Gravity racking system is being used as buffer storage in shipping areas, production, goods reception and dispatch.

2.This kind of racking is normally being served by fork lift truck and reach truck. Hand pallet trucks can be used on the lowest level at the picking side.

3.The storage principle is first-in-first-out (FIFO). Stored goods with expiration dates or product batches are easier to supervise. The design of the gravity roller tracks can be adapted by different roller pitches and break rollers to guide the stored goods.

4.Further advantages of this storage system are in the optimal surface and volume use as well as the possibility for integration into automated material flow.

5. The pallets can be served on multi-storey levels with an additional order-picking level or tunnel.

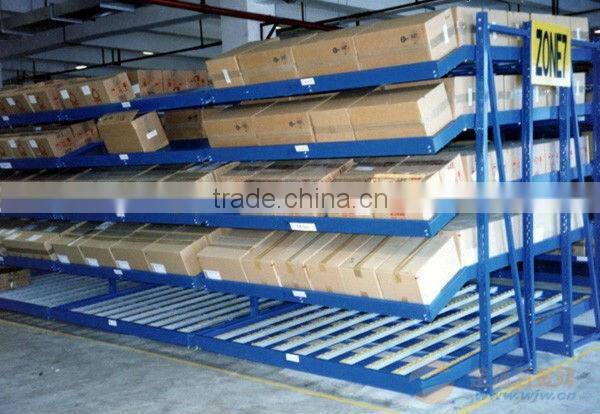

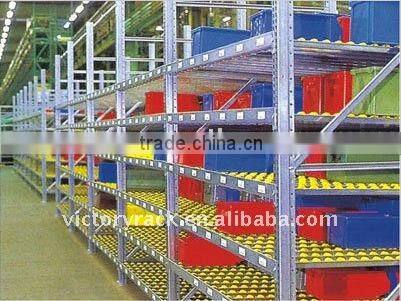

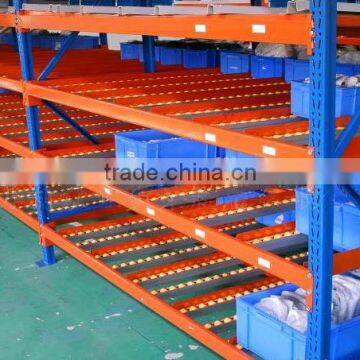

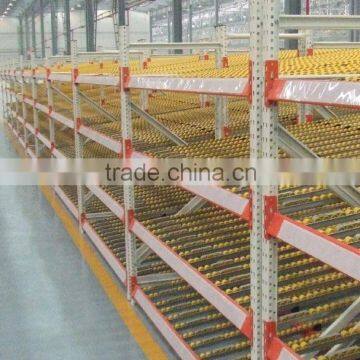

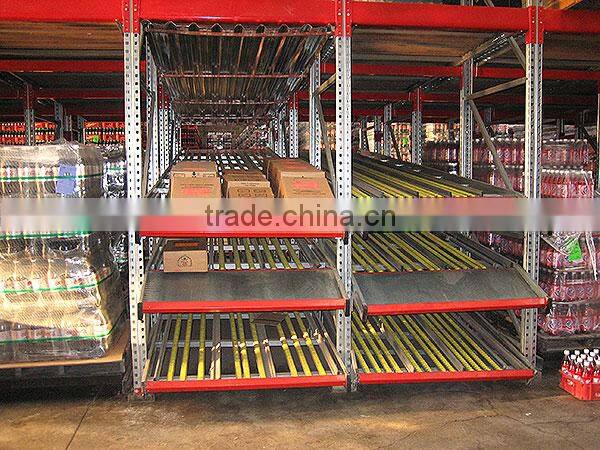

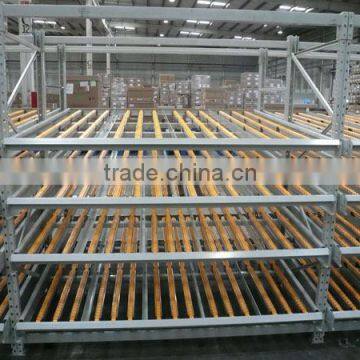

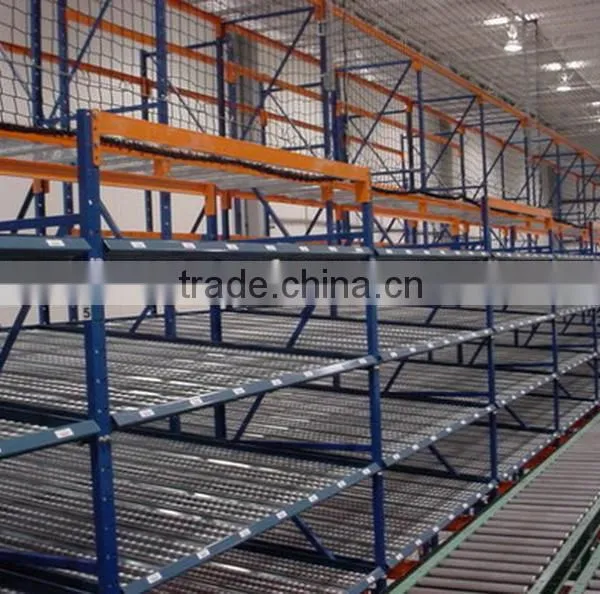

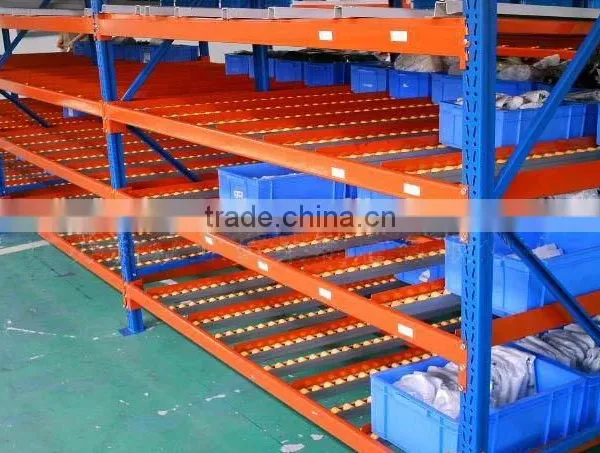

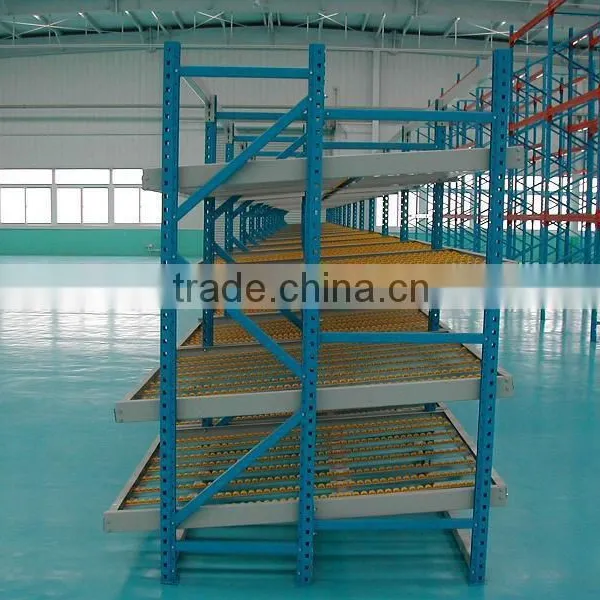

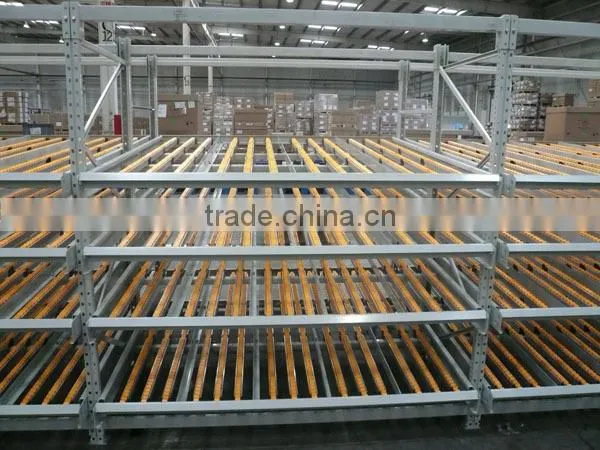

Product showcase

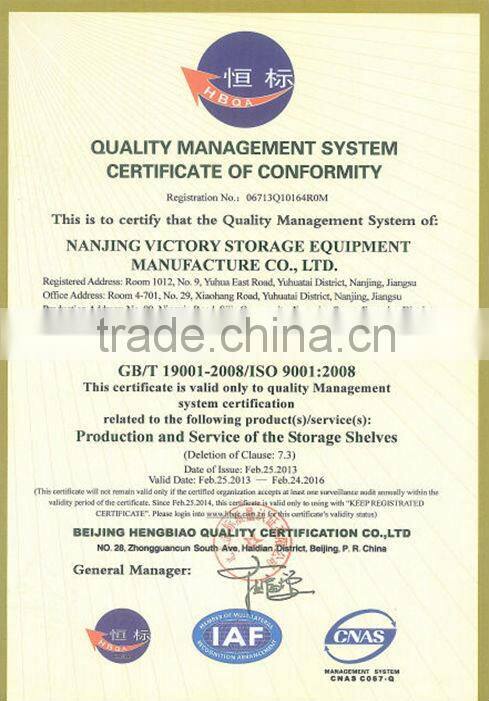

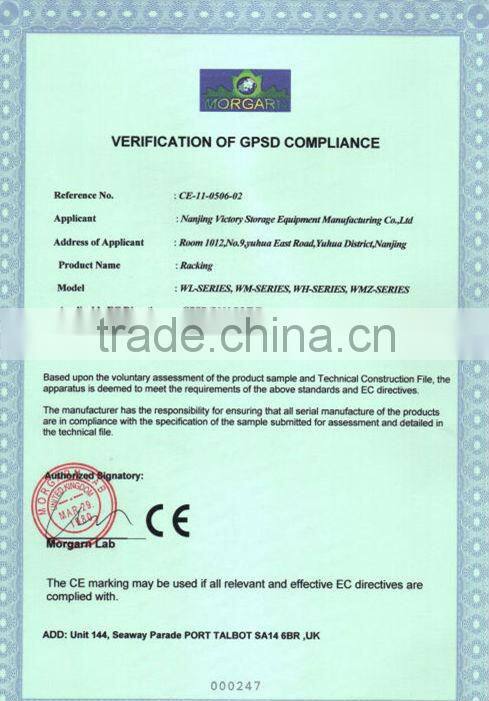

ISO & CE certificate:

Please supply details as following with your inquiry so that we can give quotation quickly .

1.The size you need ( Width , Height , Depth )

2.How many levels

3.Weight Capacity per level you need ( The goods weight on the rack ,the goods or the carton’s size )

4.Quantity

5.Your warehouse drawing if possible .

Company Introduction

Nanjing Victory Storage Equipment Manufacturing Co., Ltd. is engaged in the plan, design, manufacture, installation and consulting service of racking equipment and other material handling equipment. We are a member of China's Logistics Association, and are well-known for providing series of automated logistics systems, solutions and management software.
We have series of rolling lines for uprights, beams...

Nanjing Victory Storage Equipment Manufacturing Co., Ltd. is engaged in the plan, design, manufacture, installation and consulting service of racking equipment and other material handling equipment. Our products had been exported to many countries like Japan , Germany , France ,Australia , Mexico ,Columbia , HongKong ,the Philippines and son on . We are a member of China's Logistics Association, and are well-known for providing series of automated logistics systems, solutions and management software.
Our company adopts Computer-aided design (CAD) system to plan and design your warehouse storage system by our talented and experienced team of designers.
Our Main Products
1) Heavy duty pallet racks, drive-in racks,
2) Cantilever, push-back and carton flow racks
3) Racking support mezzanine, steel platform, mould slid racks, Auto 4s shop racks
4) Light-duty and medium-duty shelves
5) Automatic storage and retrieval systems
6) Pallets, cages, stacking racks, containers, pallet jacks, scissor lift, logistics caters, etc.
7) Metal profile and metal puncture parts

“Customer is our God . ” Will supply you the best service with good quality products.

Hope can cooperate with you.
