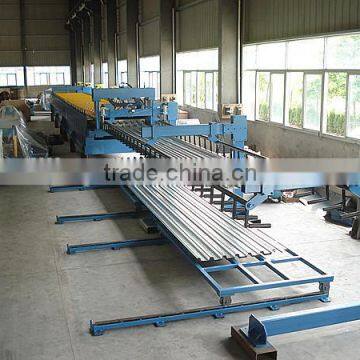

0.8-1.0mm steel composite floor deck roll forming machine price
We can make and design will kinds of roll forming machine according to customer's request.Our machine has passed CE,ISO.
1. Components for the Roll Forming Machine
Metal panel roll forming machines consists of uncoiler and its base, coil sheet guiding equipment, film covered device, roll forming system,
post-cutting equipment,hydraulic station, controlling system, supporter table.
2. Technical Parameters
Material Spec: Aluminum, aluzinc, galvanized and pre-painted galvanized steel sheet
Thickness: 0.8 mm to 1.2mm(or as client's require)
Main motor power: 20-30 kw
Hydraulic station power: 5.5 kw
Coil stress: Q235 Mpa(33KSI); maximum stress yield is Q345Mpa (50KSI)
Producing Speed: 3~4 m/min. (including the speed of step pressing and cutting)
Cutting Tolerance:≤±2.5mm ( length≤ 5000mm) ; ≤±3mm ( 5000mm < length ≤ 10000mm)
Type of cutting: Roll-formed and length-set cutting
3. Material of Main Equipments
Roller Material: high grade No.45 forged steel, Coating with hard chrome.
Active Shaft Material: high grade No.45 carbon wrought steel, improved the integrated mechanic feature of the shaft.
Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.
Other Elements: from famous suppliers in China.
Cutter Blade: Cr12 mould steel with quenched treatment.
4. Process sketch
Uncoiling the sheet --- Infeed guiding --- Roll forming --- Step pressing ---Measure length --- Cutting the panel --- Panels to the supporter (option: automatic stacker).
1. rollers are put on anti-rust oil and packed by bubble wraps; some other electric parts are packed by bubble wraps as well;
2. the oil hose and electric wires ae marked, and easy to be connected when used;
3. in container loading, sea-worthy, well fixed by wire rope, wooden block and nails.
We are willing to service you!
If u have any question,pls feel free to ask me.
Skype:jenny.ma45
Mobile:+86-177-5730-8006
