Extruder Single Screw and Barrel

Extruder Single Screw and Barrel thumbnail-1
Extruder Single Screw and Barrel thumbnail-2
Extruder Single Screw and Barrel thumbnail-3
Extruder Single Screw and Barrel thumbnail-4
Extruder Single Screw and Barrel photo-1
Extruder Single Screw and Barrel photo-2
Extruder Single Screw and Barrel photo-3
Extruder Single Screw and Barrel photo-4
US$ 750.00 - 750.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CHUANGXIN
Model Number:
CX-L120/140/160/180/200
Contact Supplier Request Quote Chat Now
Ruian Chuangxin Plastic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name CHUANGXIN
Model Number CX-L120/140/160/180/200
Product Description

Main parameters of screw and barrel:

Product

38CrMoAIA screw and barrel for extruder machine

Material

38 CrMoAlA(JIS SACM645); 42CrMo(JIS SCM440)

Hardness of nitrogen treatment

HV900°~1100°

Tempering hardeness

HV240 ° ~280°

Depth of nitrogen layer:

0.6~0.8mm

Nitrided Brittleness

above 1 stage

Surface Roughness

Ra0.4 um

Screw straightness

0.015mm

Hardess of surface chromium-plating after Nitriding

HV≥950HV

Chromium plating Depth

0.025-0.085mm

Alloy Depth

2.5mm-4mm

Alloy hardness

HRC62°~72°

Heating-treatment

nitrogen ,electroplated hard -chrome finish,high frequency quenching

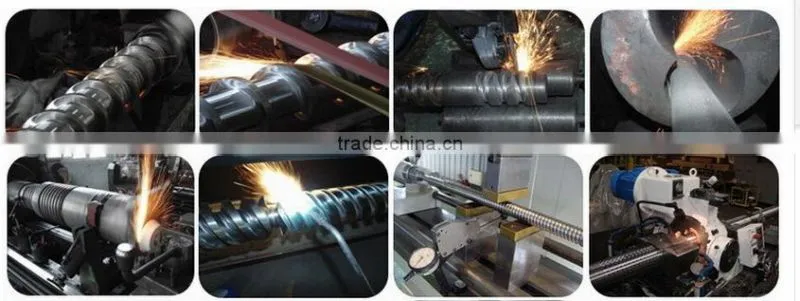

Produce Process:

extruder single screw and barrel





Workshop:

extruder single screw and barrel

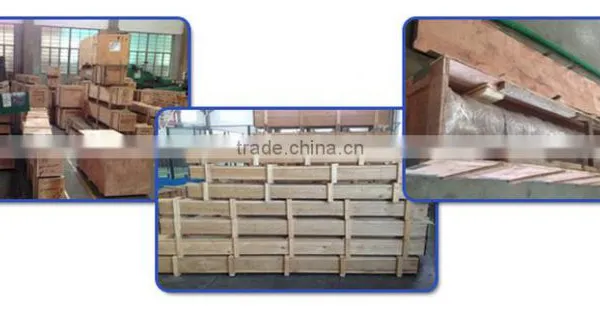

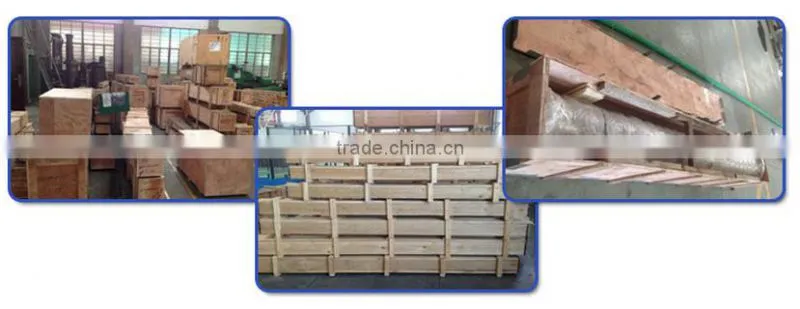

Packing:

extruder single screw and barrel

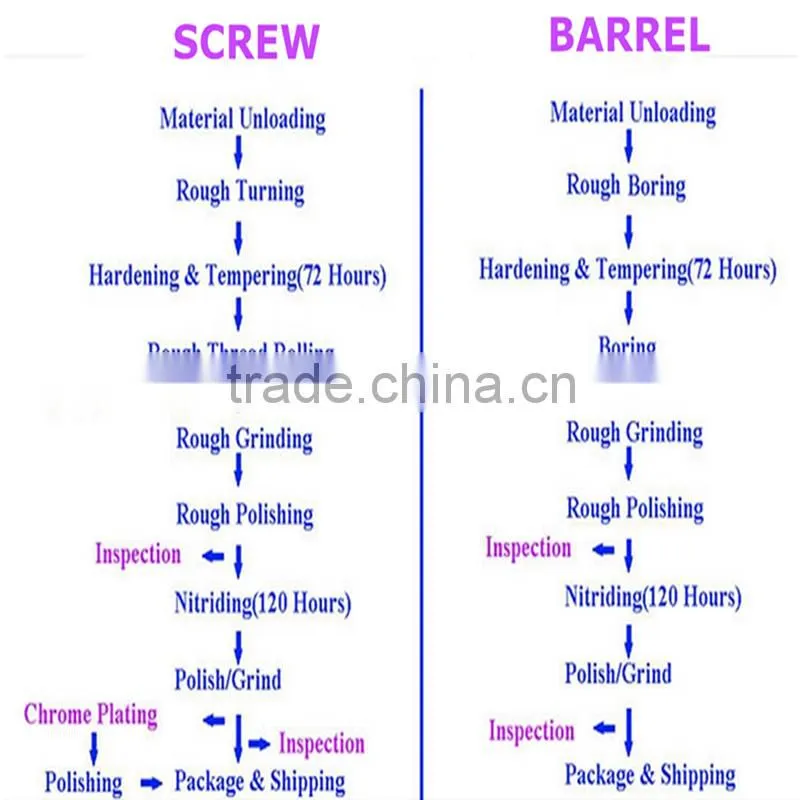

Production Flow

extruder single screw and barrel

Machine details:

First stage:

Motor: 55kw-4P, Brand: Weinuo, from Nanjing city.

Control method: by inverter, brand: Pioneer from Shanghai city.

250# Gearbox: Hard-Tooth Surface, brand: Shuguang, from Xiaoshan city

Screw barrel material: 38CrAlA.

Screw Dia.: 140mm; Barrel Dia.:190mm

L/D ratio: 22:1

Screw length: 3000mm

Barrel heater: Ceramic heater

Hydraulic controlled screen changer

Sieve dia.: 250mm



Material Hopper: designed with compulsory feeder to push the crushed scraps into screw barrel more faster.

Feeder motor: 1.5KW-6P with inverter control



Second stage:

Motor: 18.5kw-4P, Brand: Weinuo, from Nanjing city.

Control method: by inverter, brand: Pioneer from Shanghai city.

180# Gearbox: Hard-Tooth Surface, brand: Shuguang, from Xiaoshan city

Screw barrel material: 38CrAlA.

Screw Dia.: 117mm; Barrel Dia.:160mm

L/D ratio: 10:1

Screw length: 1200mm

Barrel heater: Stainless steel heater

Hydraulic controlled screen changer

Sieve dia.: 220mm



Water tank: made by thick steel, 2500×500×300MM



Air blowing dryer: 1 set

Fan motor power: 1.5KW



Rotary Normal Speed Cutter: 1set

Adjustable Speed Motor: 3KW,

Electrical Control cabinet: 1 set

Circuit breakers: Schneider
