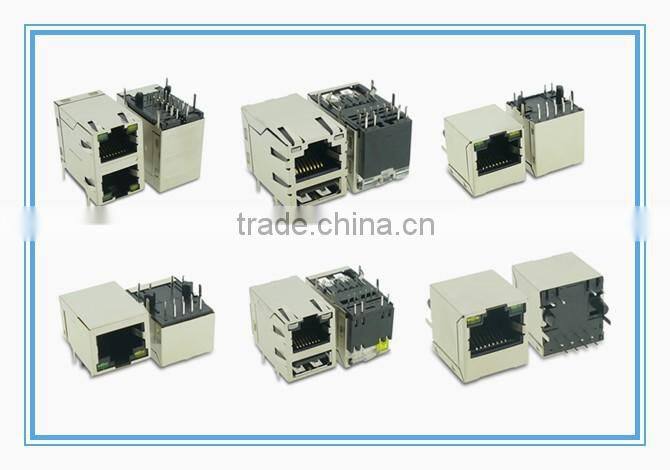

10P8C RJ45 plug , with transformer and EMI finger ,RJ45 connector
Material:
1,Housing: Thermoplastic material with flammability rating UL 94V-0 or better
2,Contacts:
Flat Pin: 0.35mm thickness phosphor bronze plated with 15u''/
30u"/50u'' min hard gold over 2.45um(100u'')nickel
3,Shielding: nickel plated with copper alloy
4, Solder tail plating material: 200-500 microinches 100% tin
Matte finish
5, Insulation Resistance: 500 Megohms min
6, Contact Resistance:30 Milliohms max
Specification Characteristic:
1, Port:2x1/2x2/2x4/2x6/2x8
2,Position Number: 10 positions
3,Contact Number: 8 contacts
4, Shielding: Shielded with EMI finger
5, Magnetics: Schematic available
6, LED: Without LED/LED (Front LED available)
Feature:
*Shielded RJ-45 connector with intergrated 10/100 or Gigabit Ethernet magnetics
*Complies with IEEE 802.3 standards and all 10/100/1000 Ethemet specifications
*Compatible with a variety of 10/100 Base-T transceiver lcs
and Gigabit Ethernet transceiver lcs
*Jack cavity conforms to FCC rules and regulation Part 68 subpart F
*Intergrated design conserves valuable board space
*Minimum interwinding breakdown voltage of 1500 Vrms
*Adaptable, modular dasign provides higher reliability
*Operating temperature: 0℃ to +70℃
*Storage temperature: 40℃ to +85℃
Jacks Shielded With Filter
