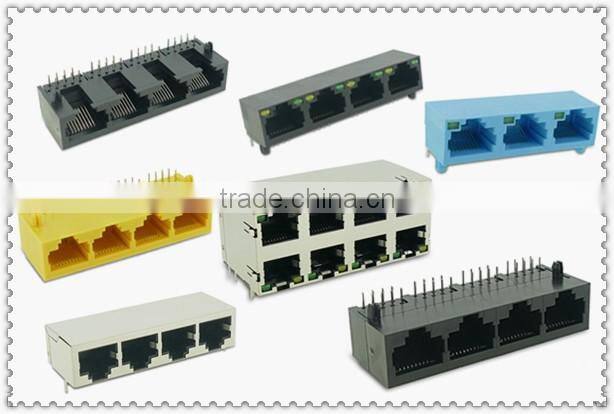

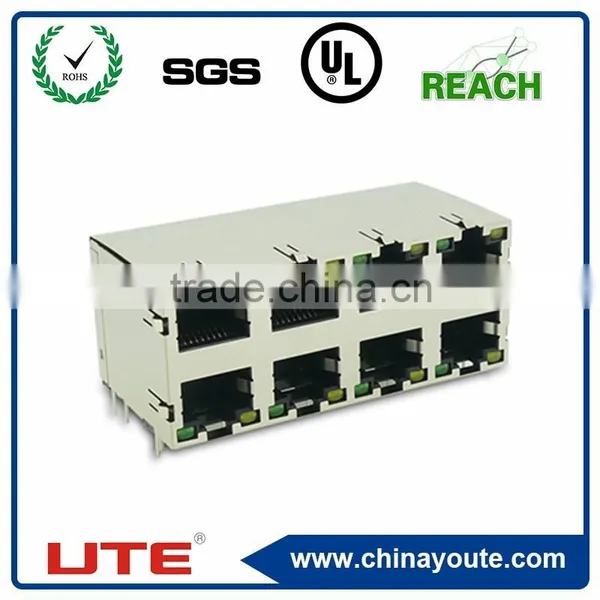

RJ45 connector 2*4 port shield with EMI finger and LED network router
Specification Characteristic:
1,Port: 2*1/2*2/2*8/1*3/4*2/2*6
2,Position number: 8 positions
3,Contact number: 8 contacts
4,Peg: None/1 peg/ 2 peg/3 peg
5,Shielding: Shielded/shielded with EMI finger
6,EMI: Backward EMI/ Forward EMI
7,LED: LED/ Without LED
Material:
1,Housing: Nylon PBT(UL 94V-0 )
Color: Black or other colors are available
2,Contact Pin
Round Pin: 0.46mm diameter phosphor bronze gold plating over nickel.
Plate FU 3u''/6u"/15u'' /30u'' /50u'' min hard gold on the top of 100u''nickel plated
Flat Pin: 0.35 phosphor bronze plated with 3u''/6u"/15u'' /30u'' /50u'' min hard gold over 2.45um 100u''nickel
3,Shielding: 0.2mm thickness brass with nickel plated
4,LED: Type-3.1(W)x1.9(T)x4.1(T)P=2.54
Specification:
1,Current Rating:1.5Amp Max.@25℃
2,Voltage Rating:125Voits AC max
3,Insulation Resistance: 500 Megohms min
4,Contact Resistance: 30 Milliohms max
5,Dielectric Withstanding Voltage: 1000Vrms, 50Hz or 60Hz 1 minute
6,Shielding Effectineness: 20dB min, 10 to 200MHz
RJ45 Series
UTE Electronic was founded in excellent October 2001 and professional on connectors R&D ,manufacturing and sales. Over 14 years we always insisted on product innovation, rigorous management style and high quality.such as SFP,RJ11,RJ45,USB,HDMI,SATA,PH and FH series.They are widely used in communications, security, computer, multi-media, digital appliances, etc.
If you do not find the exact items your needs,please do not be rush to go away.Sending your specifications or picture to us so we can give you our best resolves.
Q: Do you have stock?
A: We don’t have stock, we’ll start production after receiving order.
Q: How can I get quotation?
A:It is helpful for us to recommend the right item if we know your detail requirements(number of port, shielded or non-shielded, led or dual leds, with or without transformer etc). Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.
Q: Can I have samples?
A: Samples are available for evaluation.
Q: Is OEM & ODM available?
A: OEM&ODM are welcome.
Welcome to visit our company page! --- or http://chinayoute.en.china.cn
Here is what we do:
1)All products we make is of high quality(TS16949) and good price.
We believe that only good quality is the way to keep long-term business.
2)the material we use is environmental assured(REACH) with absolutely no harmful content.
3)10pcs free samples.
4)If you are worried, don't be! We will resend you goods if there is a quality problem in our products.
Please feel free to contact us, you will know that we are worthy of your trust :)
We will be sincerely looking forward to your contact, thank you very much!
