Specifications
1.Condenser Pump Motor2.Voltage/frequency: 100-240v 50/60Hz
4.Insulation Class: B,F,A

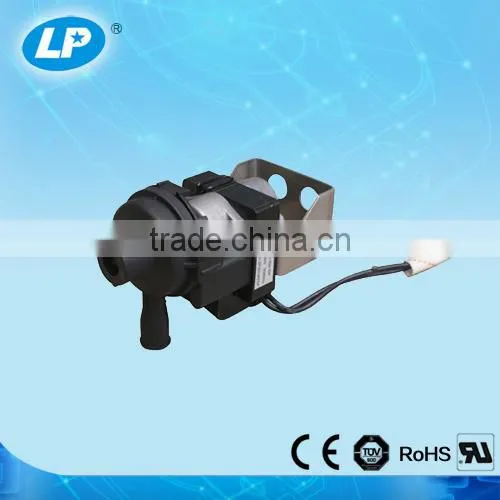

Condenser pump motor
Water Pump Motor/Conderser Drain Pump Motor for Central Air Condition /AC Water Pump Motor
Typical Application: Water Pump Motor specially for Central air conditioner,
Volt./ Freq; 100-240V 50/60HZ
Environment Temperature: -15-105 degree
Insulation Class: A.E.B.F.H
Certification: CCC, CE, TUV, UL
water pump motor is totally waterproof,it is the sample description below in our company.
the datas are just for reference,it can be modified to your requirement.as long as you can provide your drawing or sample to us ,we can satisfiy your any requirements.
Unit: mm
| Model |
Stator thickness |
Pump length | Pipe dia. | Height | Utmost water level | Max pump head(m) | Drainage Vol(ml/min) |
| PLD-7 | 15.5 | 90 | 14 | 49 | 6 | 1.2 | >500 |
| PLD-12 | 20.5 | 95 | 17 | 55 | 6 | 1.7 | >500 |
all the accessories in the structure of the water pump
certificates of our product
