Pneumatic Punching Machine

Name: Pneumatic Punching Machine
Brand: YOUYI
Availability: InStock

FOB Price

US$ 5,000 - 6,000 / Set

1 Set(Min. Order)

Port SHENZHEN
Payment TermsD/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Power Source	Pneumatic	Place of Origin	Guangdong, China
Brand Name	YOUYI	Model Number	TUP-5T
Voltage	110V/220V/	Power(W)	735
Weight	280KG	Dimension(LWH)	880580920mm
Certification	ISO9001:2008	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

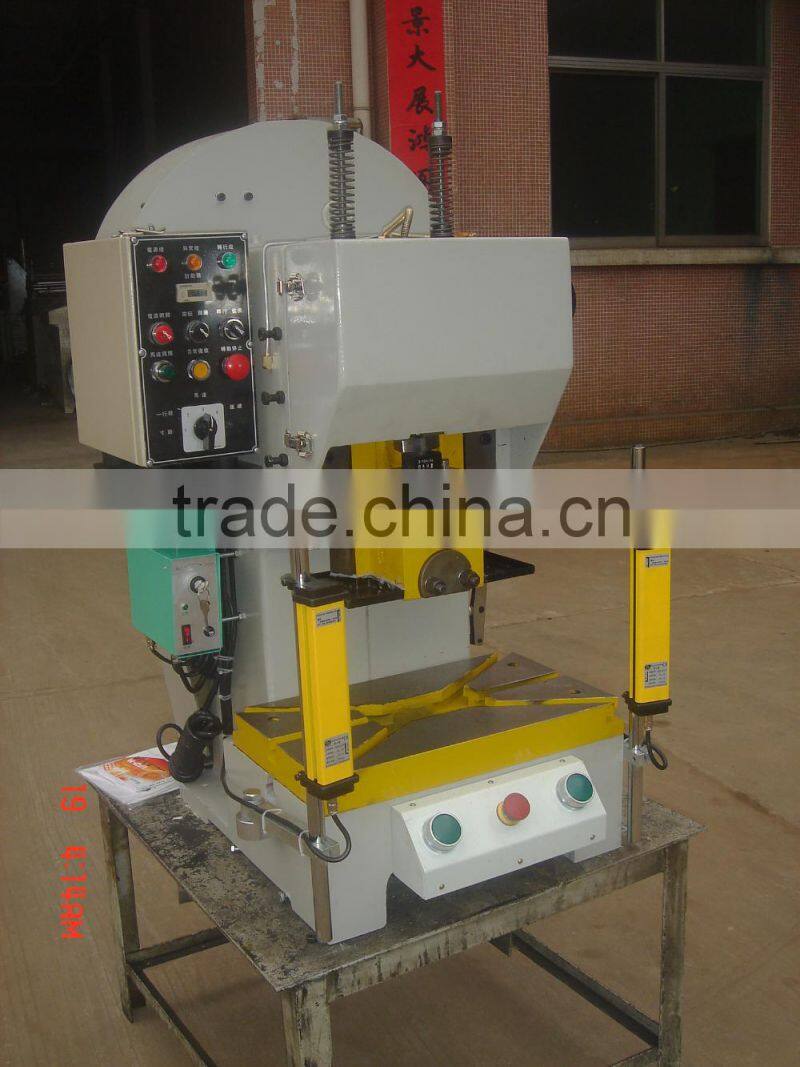

pneumatic punching machine

TUP-5T

Features

1.Body: Adopt the cast iron with high intensity so that they are of strong rigidity,steady and shockproof after annealing treatment.

2.Smart working stroke: Advanced CAD system makes adjustable stroke possible and it can meet muti-purpose.

3.The high torque dry clutch can lower noise,vibrationa nd ensure the precision, long service life and balance;

4.Independent controlling box with liquid crystal screen from Korea, its easy to operate and has versatile functions. It's safe and reliable.

5.Use the TACO TOKOOI solenoid valve from Japan and the FRL are imported.

Optional

Electric Safety Device

Inverter

Specifications

Model	TUP-5T	TUP-10T
Capacity	5T	10T
Slide stroke	2-40mm	50mm
No. of Stroke	200Spm	200Spm
Max. die set Height	180mm	230mm
Load Height Adjustment	50mm	50mm
Table size	240*340mm	300*500mm
Bedplate opening	80*110mm	230*120mm
Basal area of the sliding block	125*85mm	225*130mm
DIA of recess in slide	25.4mm	38.1mm
Motor	1HP	1HP
Weight	300Kg	600Kg
Dimension	850550850	9002001200

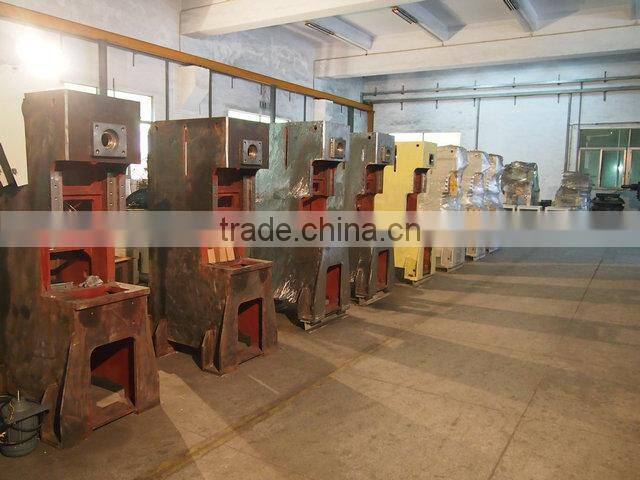

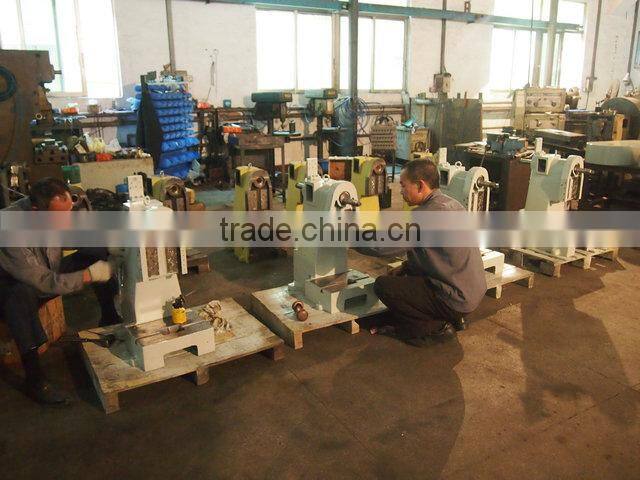

Workshop

Company Information

Dongguan Youyi Precision Automation Equipment Co., Ltd.

We specialize in manufacturing and marketing press peripheral auto machines and presses. Our company was established in 1999. The area of the factory is more than 5,000 square meters.

WHY YOUYI:

More than 15 years' experience of designing, manufacturing

Our products are ISO 9001 certified.

First-class products,first-class after-sale service.

WHERE ARE WE:

No.60 New Asia Park, Lincun, Tangxia Town, Dongguan City, Guangdong Province

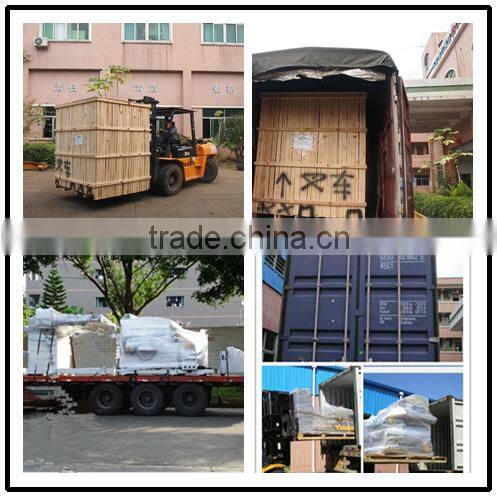

Shippment (Packaging: wooden cases or customized)

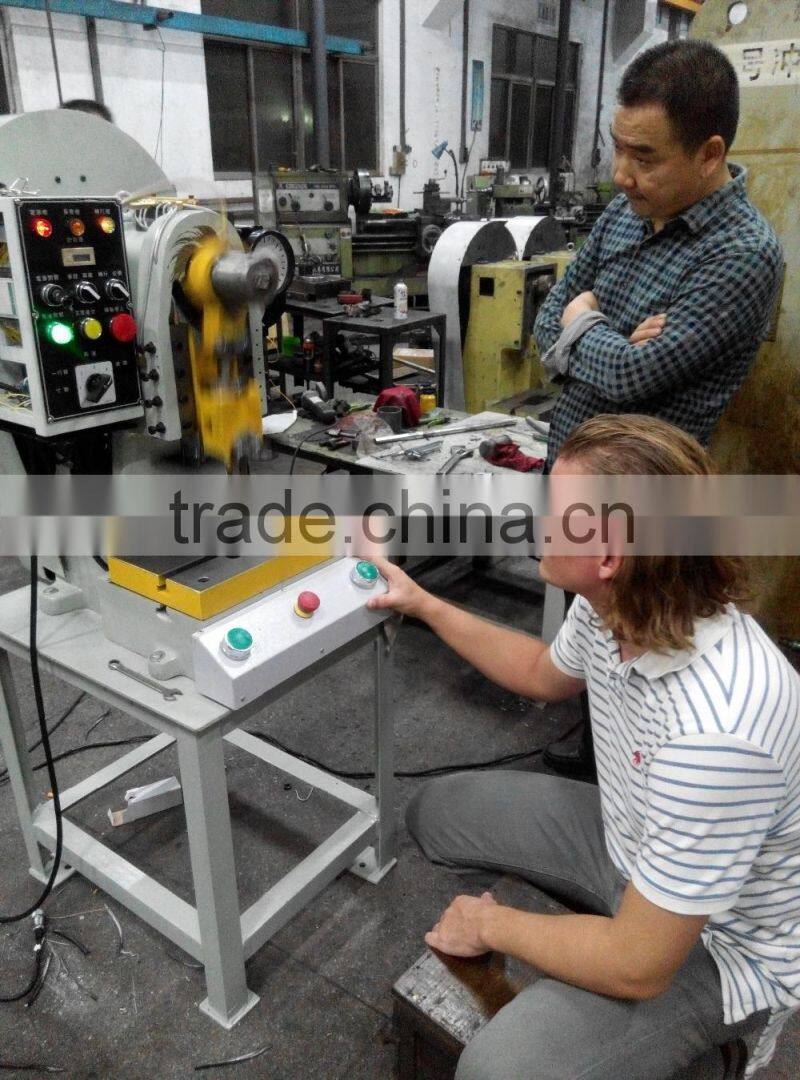

Our customers:

The pneumatic punching machine can be customized !
