Feeder Straightener and Uncoiler With Hydraulic Cutter

Feeder Straightener and Uncoiler With Hydraulic Cutter thumbnail-1
Feeder Straightener and Uncoiler With Hydraulic Cutter thumbnail-2
Feeder Straightener and Uncoiler With Hydraulic Cutter thumbnail-3
Feeder Straightener and Uncoiler With Hydraulic Cutter thumbnail-4

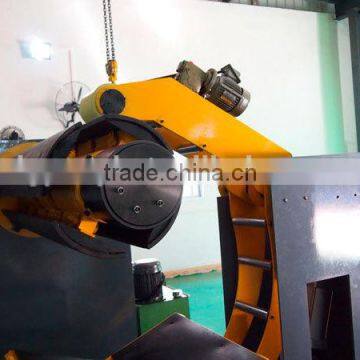

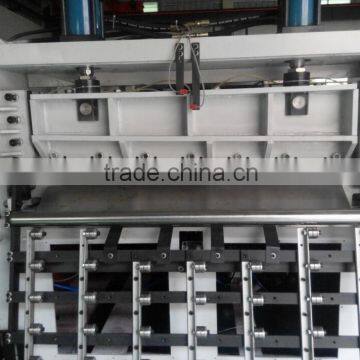

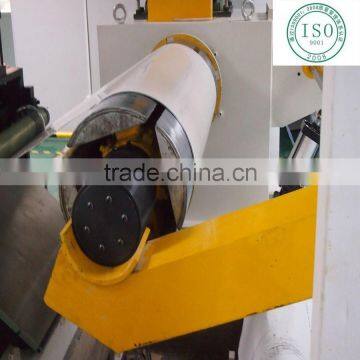

Feeder Straightener and Uncoiler With Hydraulic Cutter photo-1
Feeder Straightener and Uncoiler With Hydraulic Cutter photo-2
Feeder Straightener and Uncoiler With Hydraulic Cutter photo-3
Feeder Straightener and Uncoiler With Hydraulic Cutter photo-4
US$ 120,000 - 150,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Aland Islands
Brand Name:
youyi
Model Number:
NCSF 1300
Contact Supplier Request Quote Chat Now
Dongguan Youyi Precision Automation Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Aland Islands
Brand Name youyi
Model Number NCSF 1300

NCSF-1300 Feeder, straightener and uncoiler 3 in 1(with Hydraulic shears)

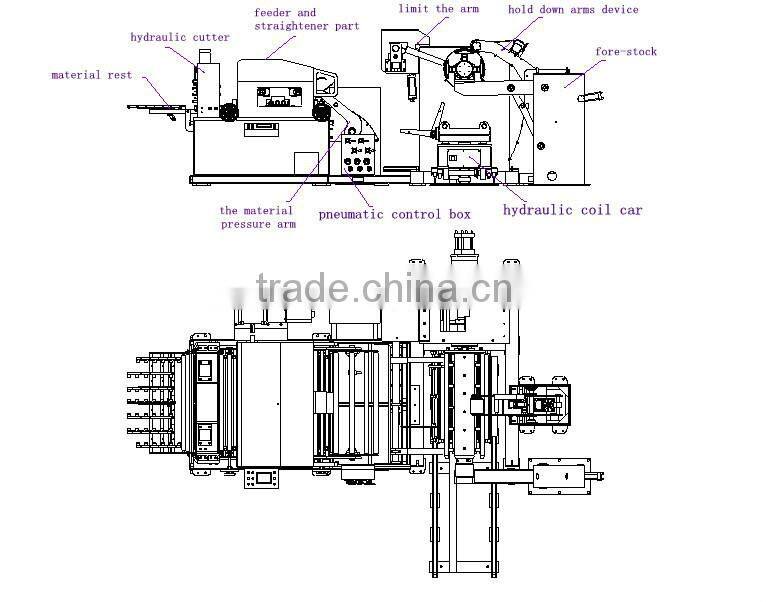

Feeder straightener and uncoiler with Hydraulic cutterFeeder straightener and uncoiler with Hydraulic cutter





Product Description



NCSF-1300 Feeder, straightener and uncoiler 3 in 1(with Hydraulic shears)



Model

Item

NCSF-1300

Width of Material(mm)

75-1300

Thickness of Material (mm)

0.3-3.2

Max. Coil Weight(kg)

6000

Speed(m/min)

20

Max Coil I.D. (mm)

Φ450-530

Max Coil O.D. (mm)

Φ1200

Pitch Roll

Upper 1/Lower1

Feed Roll

Upper 1/Lower1

Work Roll

Upper 5/Lower 4

Feed Precision(mm)

±0.2

Air Supply(kg/cmm)

5 kg/cm2

Uncoil Expansion

hydraulic

Power Supply

380VAC 50HZ

Main Motor(kw)

AC 15KW

Uncoil Motor(kw)

7.5KW

Feed Leve(mm)

customer Provided

Color

Standard color

Feed direction

From Left to right

Application

Plate

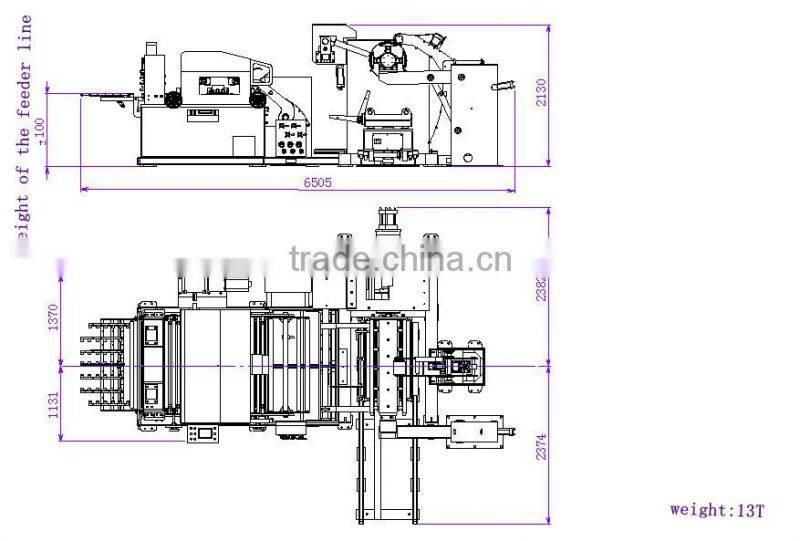

Size of machine

L6505mm*W4756mm*H2130mm

 Weight of machine

13T



Straightening Performance



straightener thickness/model

NCSF-400

NCSF-500

NCSF-600

NCSF-700

NCSF-1000

NCSF-1300

0.8

400

500

600

700

1000

1300

1.5

2.3

800

800

3.0

600

600

600



Main Electrical And Power Transmission Components Configuration Table

No.

Name

Brand

Origin

Description

1

Electric Eye Loop Control System

Omron

Japan

Electric Control

2

Uncoiler-Inverter Device

Delta

Taiwan

Adjust the uncoiling speed and the straightening speed

3

Rack gear Motor

CPG

Taiwan



4

Cylinder Stator

AIRTAC

Taiwan

Hold down arms,retainer,pinch arms

5

Releasing cylinder, solenoid valve

SMC

Japan



6

bearings

NSK

Japan



7

Servo Controller

YASKAWA

Japan



8

Servo Motor

YASKAWA

Japan



9

Touch Screen

HITEC

Taiwan



10

PLC programmable controller

Mitsubishi

Japan



11

breaker

Schneider

France



12

Contactor

Schneider

France



13

Control bottom

Schneider

France



14

relay

Schneider

France



15

Pneumatic Component

AIRTAC

Taiwan





Standard Accessory and Optional Accessory( is checked):

1

Die-high Electric Conditioning

Yes

2

Hydraulic Uncoil Expansion

Yes

3

Pressing Device

Yes

4

Care Feeding Device

Yes

5

Electric Eye Loop Control System

Yes

6

Hydraulic material Feed-In Cart

Yes

7

Uncoiler-Inverter Device

Yes

8

Inputting Catenary to assist and support the material

Yes

9

Protective cover,hydraulic motor,correlation photoelectric sensor,worm gear screw jacks device

Yes

10

Reference Indicator adjuster,Coil tip flatness device

Yes

11

Outgoing catenary to assist and support the material,coil side guide

Yes

12

Inverse Curve Roll

Yes

13

Drag link

Yes

14

Transformer

Yes

15

Automatic Hydraulic cutter

Yes





Company Information



Dongguan Youyi Precision Automation Equipment Co., Ltd., is one of the famous brand pressing peripheral equipment manufacturers in Taiwan Area.

We specialize in manufacturing and marketing press peripheral auto machines and package plants of presses. Our company was established in 1999. The area of the factory is more than 5,000 square meters. And we have over 15 years' manufacturing experience, and offer considerate service to our customers. We have a perfect after-sales service team who supplies rapid and high quality maintenance service in whole day.

We will still regard "sincere, honest, high quality, professional and best service" as our principle, and "quality is the most important, customer is the uppermost, and benefit together" as our  management  mission .







WHY US:



More than 15 years' experience of designing, manufacturing



Our products are ISO:9001 certified.



First-class products,first-class after-sale service.







WHERE  ARE WE:



No.60 New Asia Park, Lincun, Tangxia Town, Dongguan City, Guangdong Province
