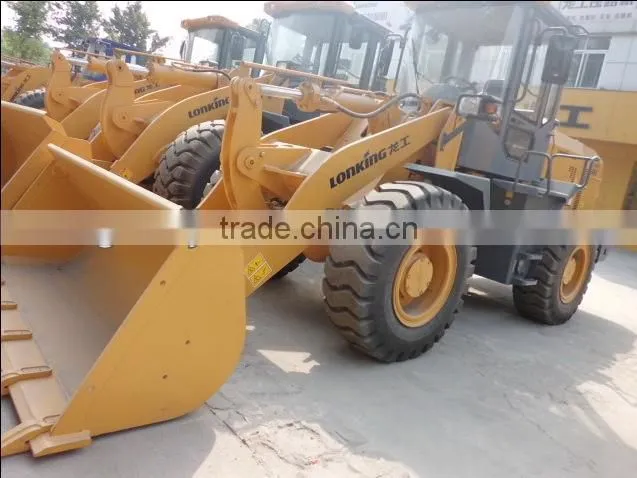

Help Center5ton Lonking Wheel Loader LG856
Related Products
Specifications
Loader payload weight:5tonLoader power: 218hp
Loader capacity:3.0m3
Loader lifting height: 3.2m
Detailed Product Description wheel loader LG856
The appearance is compact and nice. Good cost performance will help you create more fortune.
1. Hydraulic steering system, convenient and easy steering
2. Frame style chassis structure, simple in structure and easy in maintenance
3. Air conditioning and heating system provide better operation environment
4. Front and rear frame use long span connecting structure for reduce the stress in hitch pin
5. Anti-abrasion integral cutting edge with teeth and adapters, prolong the life of bucket.
6. Long wheelbase and centrally symmetrical structure make the front and rear tracks superposed on each other for extending the life of tire.
7. Max. dumping clearance is 3130m, which can meet the loading demand of heavy truck.
8. Optional implements: High dump, Coal bucket, Log fork, Quick disconnect

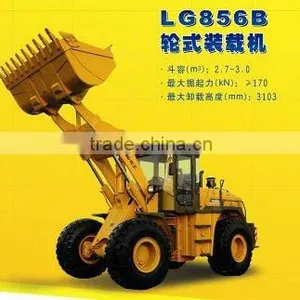

Overall data of wheel loader LG856B | ||||
Rated loading capacity |
kg |
5000 |
||
Bucket Capacity |
m³ |
2.7-3 |
||
Wheel base |
mm |
3230 |
||
Tread |
mm |
2240 |
||
Dumping height |
mm |
3130 |
||
Dumping reach |
mm |
1210 |
||
Opreating weight |
kg |
16600 |
||
Total cycling time |
s |
≤11 |
||
Steering angle |
º |
±35 |
||
Overall dimenssions | ||||
Overall lenght |
mm |
7900 |
||
Overall width |
mm |
3000 |
||
Overall hight |
mm |
3400 |
||
Engine | ||||
Engine model |
|
weichai (StyreWD10G220E11) |
||
Rated power/speed |
Kw/rpm |
162/2200 |
||
Rated torque/speed |
N·m/rpm |
860/1400-1600 855±20/1300-1500 |
||
Travel speed | ||||
Forward-gear(F/R) |
km/h |
0-11.5 |
||
Forward-gear(F/R) |
km/h |
0-36 |
||
Reverse-gear(F/R) |
km/h |
0-16 |
||
Transmission type |
|
Planetary hydraulic shift |
||
Drive axle and tires | ||||
Main reducer |
|
Spiral bevel, 1-stage Reduction |
||
Final reducer |
|
Spur gear cylindrical geat planetary drive |
||
tire |
|
23.5-25-16PR |
||
Working hydraulic system | ||||
Working pump |
|
CBGj2100 |
||
Displacement |
|
100 |
||
System working pressure |
|
16 |
||
model |
|
DF32.2C |
||
