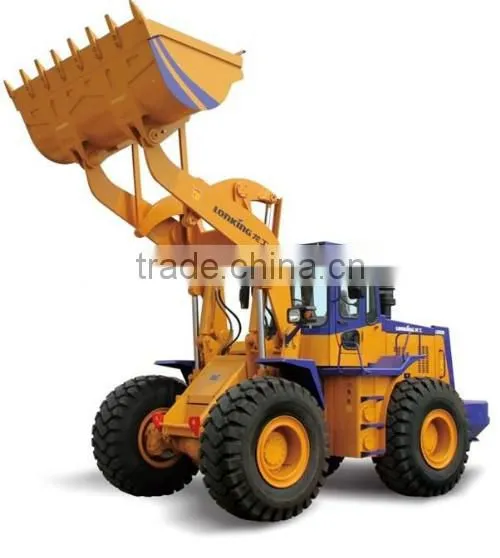

Function parameter LG850D wheel loader
Our company products :
New machine ( Wheel loader line in Lonking brand for 17years. the lonking brand agent in China .
Lonking excavator, road roller . and Hyundai brand excavator agent in China.
Responsible in whole machine saller , spare parts supplier , repair service for lonking and Hyundai products .)
Dipper capacity(m3)..............................................3.0
Discharge height(mm) ....................................3193
Nominal load capacity (kg).................................5000
Machine weight(kg).............................15850
Maximum drawbar pull(kN) ................................155M
Aximum breakout force (kN).................................165
Running speed(km/h)
I II
forward 11.5 38
backward 16
engine
nominal power (PS/RPM)/.................210/1900
(V) ......................24
drive system
hydraulic converter................................ Single stage double turbine four element structure
Transmission type .................................... Planetary hydraulic shift
The gear change ....................... ..................Binary back
Transmission pressure MPa.....................1.2-1.5
main drive ............................... Spiral bevel gear reducer
Gear type wheel .............................solar reduction gear
tyre............................. ..................23.5-25-16PR
brake assembly
Brake.................................Double line dry type brake
rated pressure (MPa).......................................0.7-0.78
parking braking ...................................flexible shaft control disc
The steering hydraulic system
model......................Full hydraulic steering system with load sensing
steering pump .................. ................ gear pump
system working pressure MPa..............................15
steering angle.................. ................ ...................±32°
hydraulic system
working pump.................. gear pump
system working pressure MPa..............................16
add up three item
promote(full) unload drop(empty) total
7.0 1.3 4.7 ≤13
electronic system
system voltage (V)........................24
Battery capacity(AH)....................................2-120
Lighting voltage (V).....................................24
sorts of oil capacity
fuel(L).....................................285
hydraulic fluid(L).....................................285
engine oil(L).....................................20
gear-box (L).....................................45
The front / rear axle (L)....................................23/23
