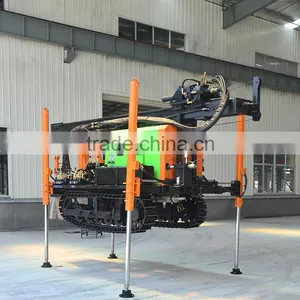

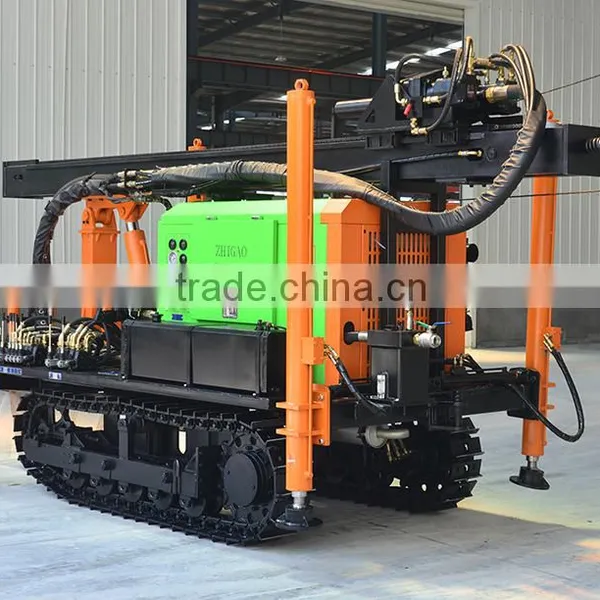

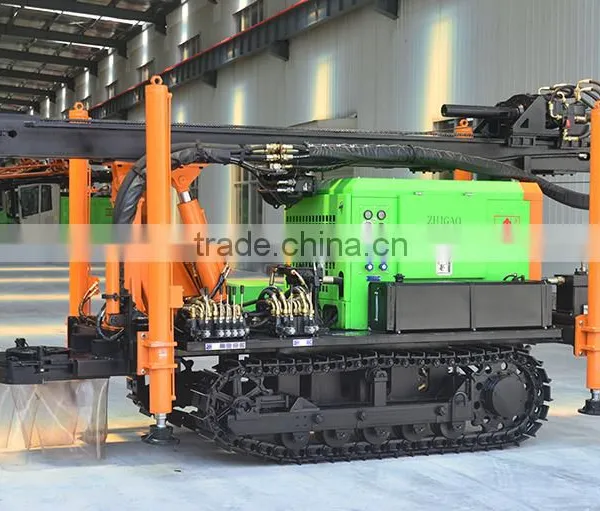

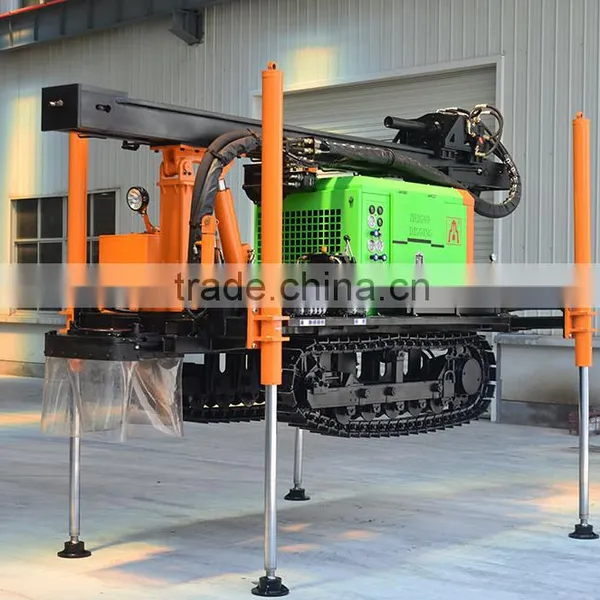

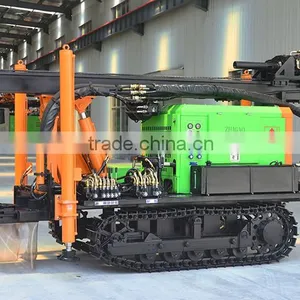

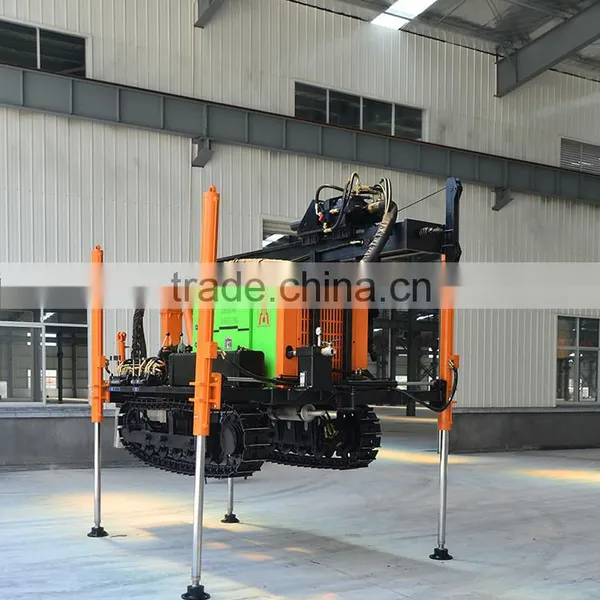

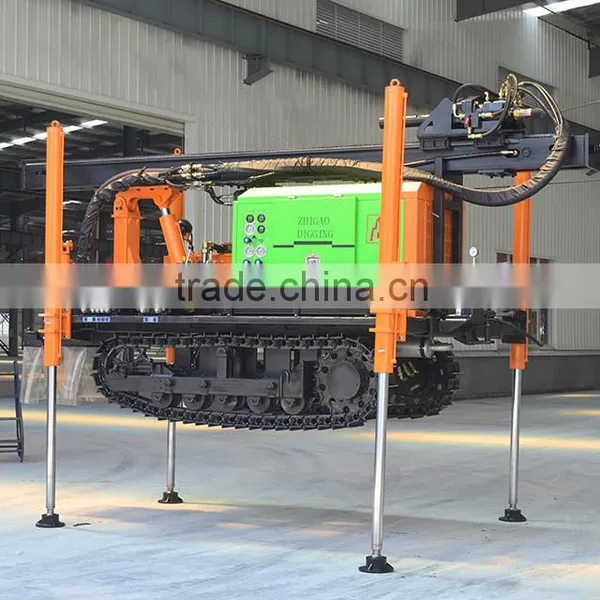

LGX-ZSJ 180 Well rig
LGX-ZSJ180 Characterized light and flexible, widely used in civil engineering
Advantage
1. Light weighted, small profile, easy to access narrow jobsites.
2. Simple design but toque and lifting force can be guaranteed
Component
1.Simple and flexible positioning structure
2.Integrated control panel
3.High torque rotation unit can switch between high and low mode. Torque up to 4500Nm.It is widely used in large hole DTH drilling and pipe casing.
4.Manual positioning, simple and reliable.
5.Optional manual or hydraulic aiding derrick, easy for embarking and getting off without crane.
LGX-ZSJ180 Technical specification
|
|
|
High:0-120r/min |
|
110- |
200mm
Jack extension
0.4m
Working Pressure(Max.)
1.2-2.5Mpa
Tramming Speed(Max.)
2.5km/h
F.A.D
12-30m3/min
Climbing Ability(Max.)
25°
Drill Rod Diameter
Standard:76mm
Option:89mm
Weight
3.5T
Rod Length
2m
Dimensions
4200×1550×2600mm
Lifting ability
7T
Working condition
Loose and base rock
Diesel Engine
Domestic(4D80)56KW/2100r.min
Drilling method
Down the hole hammer
Rotation Torque
High speed:2250N.m
Low speed:4500N.m
Hammer
HD55/HD65
Air compressor:
Diesel portable/stationary air compressor: |
Electric portable air compressor: |
138SCG-14.5(13/14.5) |
90SDY-14.5(13/14.5) |
178SCG-14.5(18/14.5) |
132SDY-13(17/13) |
177SCG-17(16/17) |
185SDY-17(18/17) |
191SCG-17(18/17) |
200SDY-21(23/21) |
190SCG-16(21/16) |
|
250SCG-17(22/17) |
|
250SCG-19(22/19) |
|
260SCG-21(22/21) |
|
288SCG-22(27/22) |
|
|
