Automatic Tea Bag Packaging Machine
Negotiable
/ Acre
1 Acre(Min.Order)
- 1000 Acre / Acres per Month
- HUANGPU GUANGZHOU
- T/T
You May Like
-
Maquillageplastic sealing heat shrink packaging machine Seal and shrink the film packaging machine
-
Express deliverybox packing and paste sheet packing machine Box sealing and paste single package all-in-one machine
-
Maquillagemembrane packing machine
-
Bookseal the heat-shrink packaging machine Seal and shrink the film packaging machine
-
Automatic Screw Counting Packing Machine
-
Maquillagemembrane packing machine Gift packageseal and cut the packaging machine
Product Details
| Condition: | New | Function: | Wrapping | Application: | Beverage, Commodity, Food |
| Packaging Type: | Bags | Packaging Material: | Plastic | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V | Power: | 3.35KW |
| Place of Origin: | China | Brand Name: | UPPERBOND | Model Number: | DXDC |
| Dimension(L*W*H): | 1300*910*2100mm | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

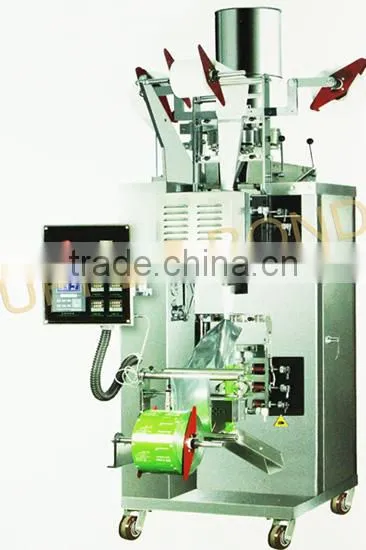

Automatic Tea Bag Packaging Machine
INTRODUCE
The machine is suitable for packaging food, tobacco, sticky products, such as cigarette paste, etc.
FEATURES
- The machine use CPU chip controller, man-machine interface LCD screen display, high intelligent and automation.
- High precision, the whole bag length adjusted by stepless and easy to operate.
- Adopt technology of temperature compensation to make temperature accurate and stable. Make sure the quality of sealing.
- Take the pneumatic sealing technology to make the bag neat and beautiful.
- Adopt the new type of adjustment air exhausting device, it is better to improve the exhausting effect.
- The unit type structure, complete specification, convenient replacement.
- Adopt stepless adjustment controller for inner, outer bag and label length, easy operate.
- Apply new type structure for making label and paper feeding.
Model | Weighing scope (tablet/bag) | Bag size(mm) | Label size(mm) | Lead long (mm) | Max packing speed (bags/minute) | Power (kw) | Dimesion (mm) | Total weight (kg) |
DXD.C-10-1 | 2-10 | (Inner) L:50-60W:50-70 (Outer) L:80-100W:60-100 | L:25-35 W:20-30 | 180 | 45 | 3.35 | 1300*910*2100 | 540 |
DXD.C-10-2 | 2-10 | (Inner) L:50-60W:50-70 (Outer) |
|
| 45 | 3.35 | 1150*910*2100 | 540 |
