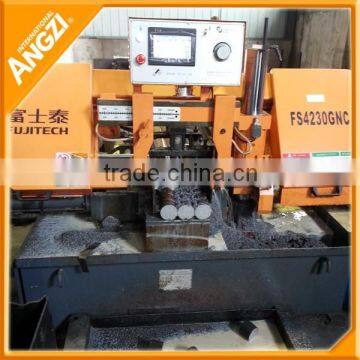

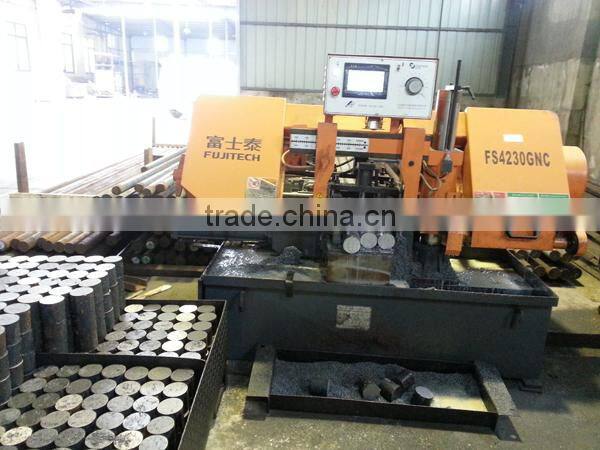

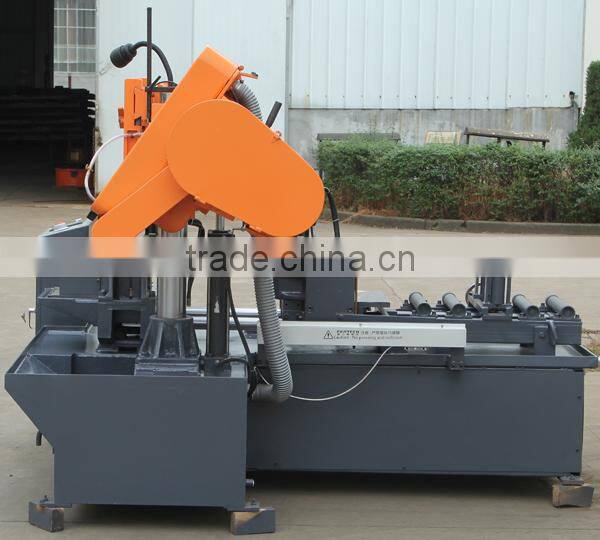

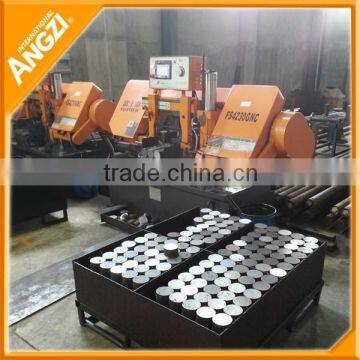

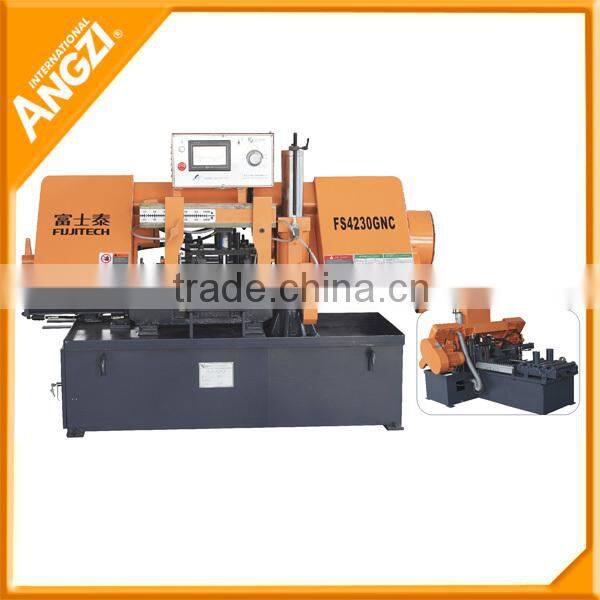

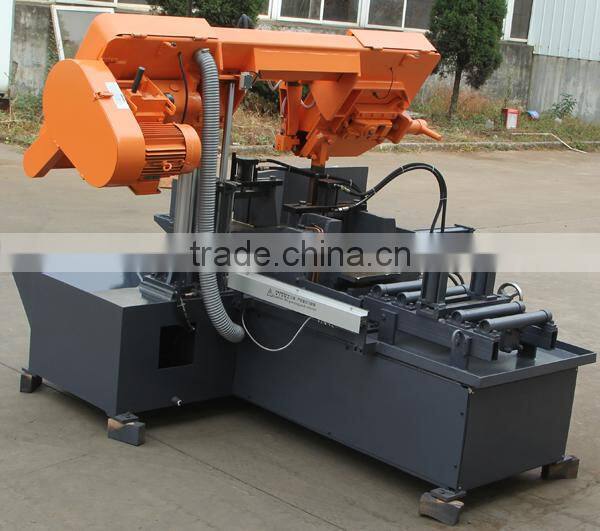

FS4230GNC Touch Screen Operating Automatic Saw Machine
FS4230GNC Band Saw Machine Performance:
GNC---Touch screen operating system grating positioning.
1.Hydraulic dual-clamp design,hydraulic clamp automatic feeding.
2.Saw blade hydraulic tensioningdevice to extend the saervice life of saw blade(optional).
3.Automatic stop stop device for saw blade fracture and locking.
4.High-performance design with PLC circular board,easy maintenance.
5.Real-time display for machine message and troubleshooting instructions.
Specification:
|
Model |
FS4228GNC |
FS4230GNC |
FS4236GNC |
FS4240GNC |
||
Capacity |
Round |
280 |
300 |
360 |
400 |
|
(MM) |
Square |
W300xH280 |
W320xH300 |
W420xH360 |
W420xH400 |
|
Blade Speed (M/MIN) |
20 35 50 65 80 |
24 36 45 54 75 |
20 35 45 60 80 |
20 35 45 60 75 |
||
Blade Size (MM) |
L3505xW27xT0.9 |
L3950xW34xT1.1 |
L4570xW34xT1.1 |
L4750xW41xT1.3 |
||
Blade Tension |
Handle Tension/Release |
|||||
|
|
Blade Drive(KW) |
2.2 |
3.0 |
4.0/3.0-6P |
4.0/3.0-6P |
|
Motor |
Hyd.pump (KW) |
0.38 |
0.75 |
0.75 |
0.75 |
|
|
Coolant Pump(KW) |
0.04 |
0.04 |
0.09 |
0.09 |
|
Oil Scupper Volume |
Hyd Fluid(L) |
30 |
30 |
50 |
50 |
|
|
Cooland Pump(L) |
50 |
60 |
60 |
70 |
|
Floor Space(MM) |
L1900*W1920*H1430 |
L2160*W2080*H1720 |
L2460*W2340*H1600 |
L2550*W3240*H1600 |
||
|
Feeding length (single feed)(MM) |
500 |
500 |
500 |
500 |
||
Weight(KG) |
1450 |
1800 |
2800 |
2950 |
||

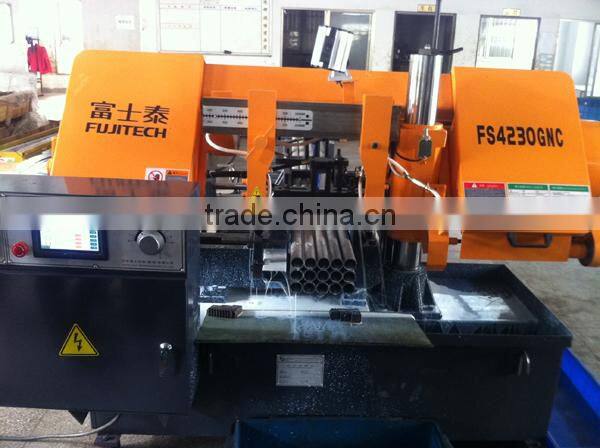

Different cutting materials:
Used for cutting various metal materials(Steel pipe/bar, Iron, Copper, Aluminum,etc.)

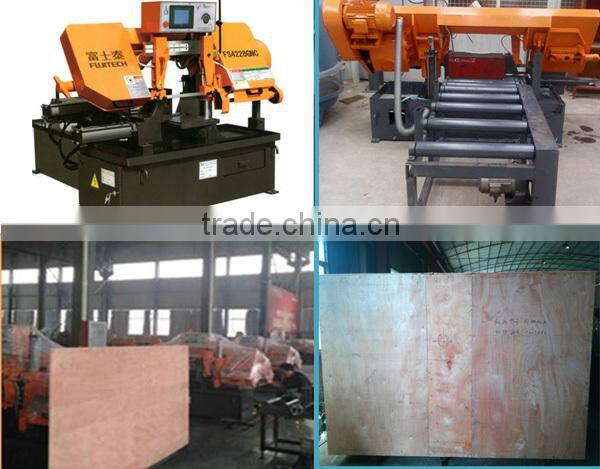

Hydraulic Feeding Table:
Experienced in selling band saw machine to more than 40 different countries,
we pack and load the machines well and prevent any damages during transportation.
Choice 1: Nude packing & Plastic protective cover.
Choice 2: Wooden case.
1. Located in Shanghai city, Building area 5000m².
2. 10 years band saw machine production experience.
3. High efficiency,High precision and High stability,continuously satisfy customers' demands.

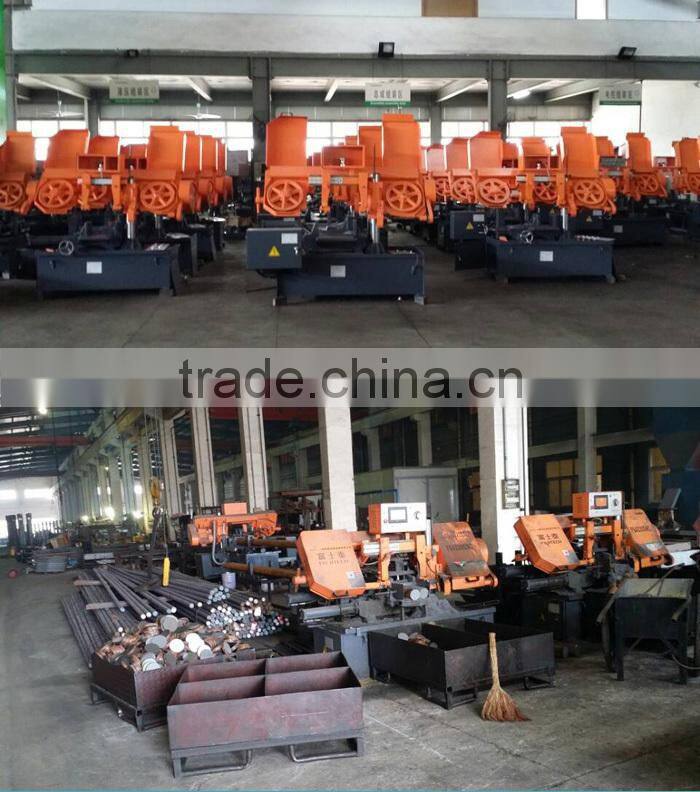

ANGZI Factory picture:
Exhibitions:
1.We are your sales consultant to provide you with comprehensive information on
equipment and training.
2.We are your technical engineer anytime, to provide you thoughtful maintenance guide.
3.The rapid responsive repair team, to bring you the fastest recovery protection.
Q1: What is the voltage and Hertz in your country?
A1:In China,the Voltage is 380V(3 Phase),the Hertz is 50HZ, we can change the voltage and
Hertz according to your requirment(also have 220V).
Q2.Can I have your quotation? & How to get suitable size band saw machine?
A2: First, please inform us which material you would like to cut and its details includes size,
Thickness,solid or hollow, round or square,ect. Without these parameters, we are not able to
recommend you the suitable machine.
Thank you for your attention to Shanghai ANGZI company,any question about band saw machine,Please contact us:
