Band Saw Blade Welding Machine

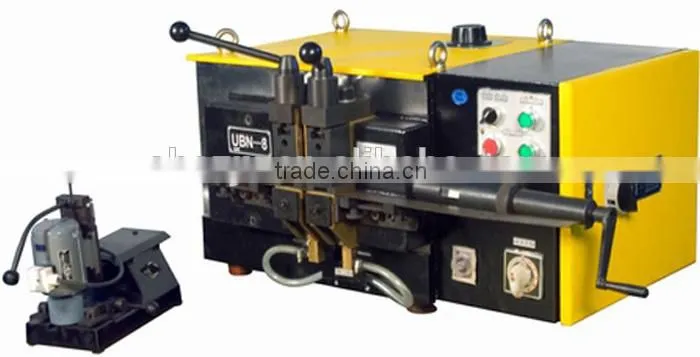

UBN-8 Semi-automatic Welding Machine for Band Saw Blade
1.UBN-8 is a program-controlled machine, which is suitable for welding ordinarily steel bandsaw strips, high alloy steel bandsaw strips, various bandsaw blade and knifes etc.
2.It is equipped with functions of program self-control between welding and annealing and the function of outside adjustment for upsetting pressure, welding voltage, annealing temperature and anealing time.
3.UBN-8 butt welder enjoys the characteristics of precise setting, easy operation. It offers reliable butt joint with reasonal annealing hardness and super quality metallurgical structure without any welding flux.
Specification
Item No |
UBN-8 |
|
Rated capacity |
8KVA |
|
Power supply |
3N~380v, 50HZ |
|
Net weight |
180kg |
|
Overall size (L*W*H) |
780*600*515mm |
|
Welding ranges((Width) |
blade width |
Transverse areas |
Steel blades |
3-50(mm) |
60mm2 |
Wood-cutting blades |
3-50(mm) |
60mm2 |
Bi-metal bandsaw blades |
3-41(mm) |
60mm2 |
Stainless bandsaw blades |
5-30(mm) |
32mm2 |
Blade knives |
5-45(mm) |
50mm2 |
Tungsten alloy blades |
3-40(mm) |
45mm2 |
H.S.S bandsaw blades |
5-30(mm) |
32mm2 |

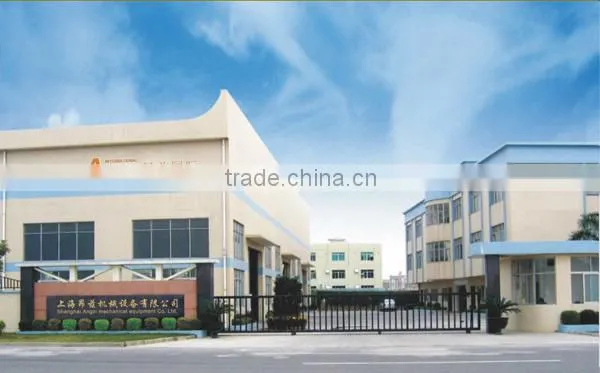

1. Located in Shanghai city, Building area 5000m².
2. 6 years band sawing blade welding machine production experience.
3. High efficiency,High precision and High stability,continuously satisfy customers' demands.
Certification
1.We test the welding of the Band saw butt welder to ensure the good quality.
2.We check the flatness degree to see if it is up to standard.
3.We also do some cutting experiments to check its using function.
4.Professional manufacturing assembly line.
5.Very strict quality control.
Experienced in selling band saw blade welding machine to more than 40 different countries,
we pack and load the machines well and prevent any damages during transportation.
Q1: What is the voltage and Hertz in your country?
A1:In China,the Voltage is 380V(3 Phase),the Hertz is 50HZ, we can change the voltage and Hertz according to your requirment(also have 220V).
Q2.What about the lead time for band saw blade welding machine?
A2:Honestly,it depends on the order quantity and the season you make the order,always 10-15 days, and many models of band saw blade welding machine have in stock.
Thank you for your attention to Shanghai ANGZI company,any question about band saw blade welding machine,Please contact us.
