Long Life Low Cost per Cut Band Saw Blade

Name: Long Life Low Cost per Cut Band Saw Blade
Brand: Angzi
Availability: InStock

FOB Price

US$ 4.8 - 32 / Meter

10 Meters(Min. Order)

Port Shanghai Ningbo Guangzhou ect
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	Angzi
Blade Material	HSS	Finishing	CrN
Size	34 x 1.10,41 x 1.30,54 x 1.60,67 x 1.60

Product Description

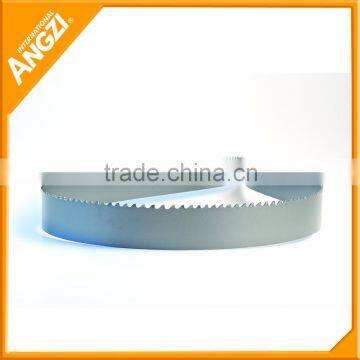

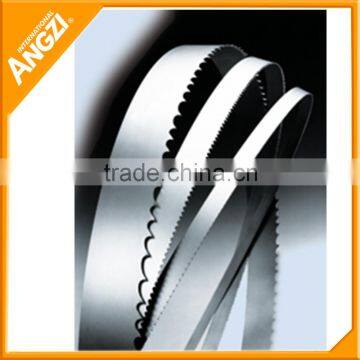

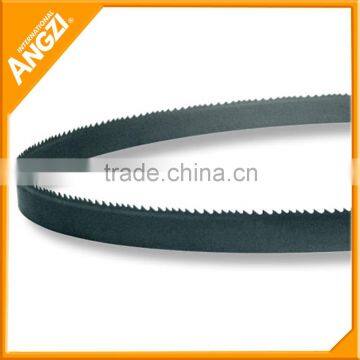

Long life low cost per cut band saw blade

General Purpose Bi-Metal Blade

This blade is best suited for cutting structural shapes, tubing and stacks of mild steel pieces. It allows band saw machines to cut a wide range of material sizes and shapes without requiring a change of blades. Its tough high-speed steel teeth resist chipping, stripping and abrasion. It can also tolerate the occasional improper speeds and feeds that are often used by inexperienced saw operators

Features

Hardness of HRC67-68
Matrix cobalt high speed steel edge
Specially designed tooth form
Wide Set available

When a roll-formed large-size I-beam is cut, stress relieving may occur, pinching the blade. In order to prevent damage to the blade, a "WS" (Wide Set) type is available for Angzi

Advantages

High wear resistance
Tough shock resistant tooth edge

Benefits

High production rate
Low cost per cut
Long life on mild solid steel and heavy wall tubing and structural

Specifications may change without notice at the sole discretion of Angzi's Engineering Department.

Edge Material	M42 Base Matrix HSS
Hardness of Tooth Tip	900Hv
Wear Resistance (1 - 5)	**	(2 Stars)
Chipping Resistance (1-5)	***	(3 Stars)

The hardness of the Tooth Tip represent Angzi's average value.
It is adjusted to some extent according to the types and size of the products.

Angzi, Straight Pitch, General Purpose Matrix Bi-Metal Blades

Width	Thickness	Pitch
Width	Thickness	3	4	6	10	14
1/4"	0.035				V	V
3/8"	0.035		V
1/2"	0.035		V	V	V	V

V: Variable Positive Rake

Angzi, Varied Pitch Matrix Bi-Metal Blade

Width	Thickness	Pitch
Width	Thickness	2/3	3/4	4/6	5/7	6/10	8/12	10/14
3/4"	0.035		V	V	V	V	V	V
1"	0.035		V	V	V	V	V	V
1 1/4"	0.042		V	V	V	V	V
1 1/2"	0.05	V	V	V	V
2"	0.063	V	V/WS	V

V: Variable positive Rake
WS: Wide Set

Specifications may change without notice at the sole discretion of Angzi's Engineering Department.
