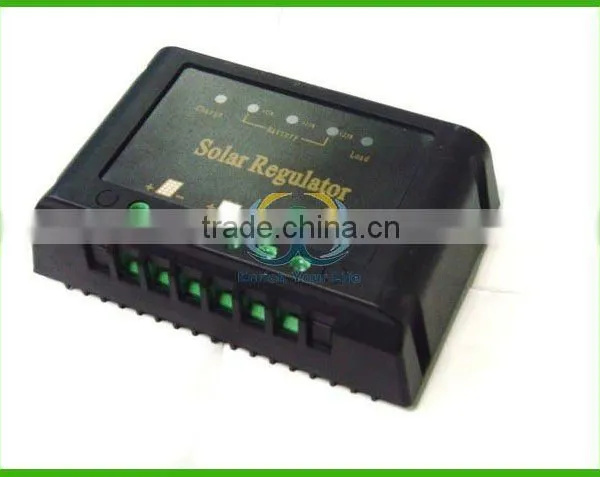

SC-01 12V/24V PWM Solar Charger Controller(15A )

SC-01 12V/24V PWM Solar Charger Controller(15A ) thumbnail-1
SC-01 12V/24V PWM Solar Charger Controller(15A ) photo-1
US$ 15 - 20 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
NSmart/OEM
Model Number:
SC-01
Use:
Other, Solar System Controller
Contact Supplier Request Quote Chat Now
Shenzhen Speed Sources Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NSmart/OEM
Model Number SC-01
Use Other, Solar System Controller
Type Solar
Place of Origin Guangdong, China

Specifications

lar charger controller
2.12v/24V identify automatically
3.PWM function supported
4.12 month warranty

SC-01  12V/24V PWM solar charger controller(15A )



  Specification



Products specification



1

      Model       YH-SC1215

2

      Name      Solar regulator

3

      Rated voltage      12V/24V automatic identification

4

      Strong charging pressure      14.8V/29.6V

5

      Balanced filling      14.5V/29V

6

      Float chargering pressure      13.7V/27.4V(25°C)

7

      Low pressure load off voltage      11v/22v±0.2

8

      Load connect voltage      12.5V/25.5V

9

      Temperature compensation system      -4mV/C/2V

10

      Maximum charger current      15A

11

      Maximum load current      15A

12

      Maximum cable diameter      4mm²

13

      Weight(gross)/set      200g

14

      Working temperature      -40-60°C

15

      Protection grade      IP56             Advantage

1

      The department example product automatic identification system voltage 12V/24V      2      Battery protection, avoid solar battery overcharger

3

      Adapter MCU contol, five charging and discharging LED indicator, capacity state

4

      With strong charger, balanced filling and floating filling 3-sectional series PWM adjust charing ways

5

      Automatic detection and tracking outside and battery temperature, built-in temperature compesation function

6

      Overakk electronic protection function,include overcharge put, overload,short-circuit,answer the reverse,etc

7

      Has the TVS lighting protection, no jump line design, can enhance the system relibiluty and durability

8

      Parameter Setting with power lsot save function,all importand date are keep in the chip       9      Can work in cold ,high temperature,humid environment

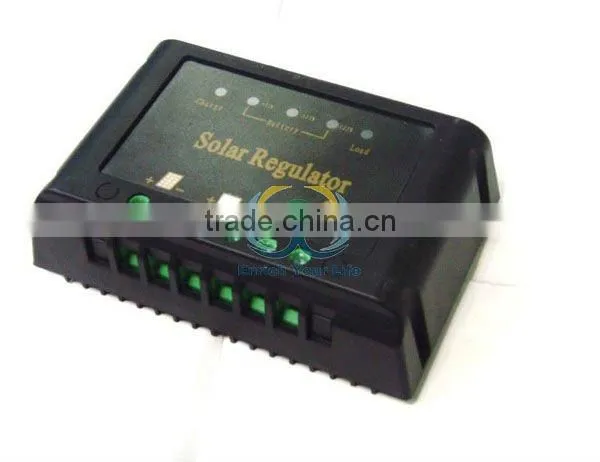

SC-01 12V/24V PWM solar charger controller(15A )SC-01 12V/24V PWM solar charger controller(15A )
