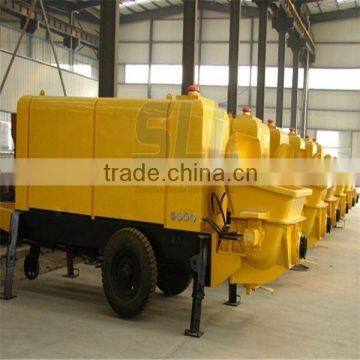

Brand SLL concrete pump for sale or flexible concrete pump hose

as your requirement for flexible concrete pump hose.

 Brand SLL concrete pump for sale or flexible concrete pump hose

Because of the advanced technology of flexible concrete pump hose in the world, Zhengzhou Sincola machinery company with the improved experience and product concept to meet the requirement of high efficiency and low consumption environmental friendly of modern construction. This concrete pump machine is composed of pump body and pipeline,and it use the pressure to convery the concrete continuously along the pipeline. The Concrete pump Concrete mixer pump trailer is widely used in urban construction, water conservancy, and tunnel construction,etc.
The power system of flexible concrete pump hose

Technology Date of flexible concrete pump hose
flexible concrete pump hose

Specifications SHBT90.11.140RS
Conveying capacity(low pressure)m³/h 90
Conveying capacity(high pressure)m³/h 61
Conveying pressure(low pressure)Mpa 8
Conveying pressure(high pressure)Mpa 11.8
Hydraulic system pressure Mpa 32
Switch of high and low pressure auto
Fuel tank capacity ml 190
Power KW 140
Rotary Speed 2200 r/min
Hopper Volume 0.6 m³
Hydraulic Oil tank volume 600 L
Conveying distance(φ125)mHorizantl/Vertical 860/200
Diameter of Cylinder without bore 125 mm
Diameter of Cylinder bore 80 mm
Diameter of Concrete cylinder 230 mm
Cylinder push distance 1600 mm

Spare parts of flexible concrete pump hose

Applications of flexible concrete pump hose
Applications Of flexible concrete pump hose
The hydraulic system of concrete pump adopts double-pump double-circuit, and the pumping unit adopts the original high-pressure and large displacement variable oil pump. With the advanced technology and excellent,reasonable design, The concrete pump is widely used in water conservancy, urban construction, and tunnel construction.

The packaging and shipping of Diesel Engine Concrete Pump Trailer
The wooden cases with international standard: free fumigation safe Wood case package.
Delivery time: 10-15 days after the confirmation of the order.

Zhengzhou Sincola Machinery Co.,ltd is a professional construction machinery manufacturer, exporter from china.
The main products include: Concrete pump trailer, Dry gunite machine SPZ-3(Output:3m3/h),SPZ-5(Output:5.5m3/h),SPZ-9 (Output:9m3/h), Wet mix shotcrete machine SPZ3000(Output:5m3/h), Wet mix shotcrete pump SPB7(Output:7 m3/h), Related parts,etc.
We have many years experience in foreign trade and Our products is with high quality and very popular in foreign countries.
Information:
Zhengzhou Sincola Machinery Co.,ltd.
Add: No.18 Dongfeng Road,EastJinshui District,Zhengzhou Henan. China.
Staffs Number: 100hundres
Major Export Market: Asia(Saudi Arabia,Kuwait,UAE,Lebanon,Singapore etc), African(South Africa Nigeria,Sudan etc), Europe(Belgium Romania, Switzerland, Macedonia etc),Australia etc.
Contact Person: Cara

If you want to know more informachine of Concrete pump trailer,please contact me.
The following is my conrtact info.
