Addressable Environmental Protection WS2812B LED Strip Light 144pcs/m DC5V

Addressable Environmental Protection WS2812B LED Strip Light 144pcs/m DC5V thumbnail-1
Addressable Environmental Protection WS2812B LED Strip Light 144pcs/m DC5V thumbnail-2
Addressable Environmental Protection WS2812B LED Strip Light 144pcs/m DC5V thumbnail-3
Addressable Environmental Protection WS2812B LED Strip Light 144pcs/m DC5V thumbnail-4
Addressable Environmental Protection WS2812B LED Strip Light 144pcs/m DC5V photo-1

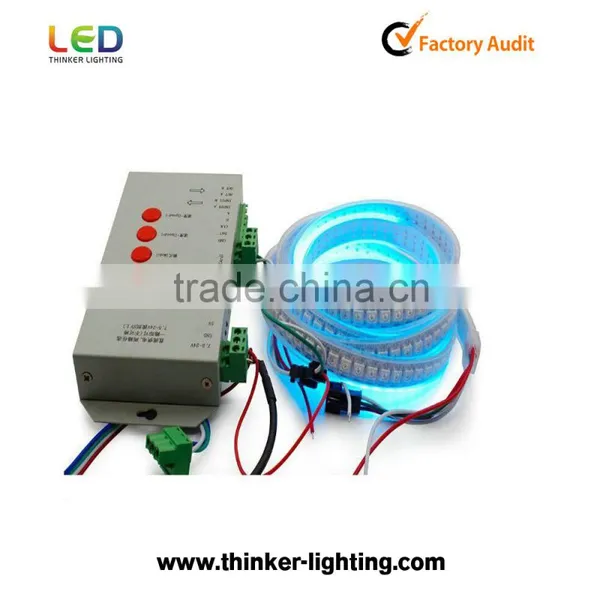

Addressable Environmental Protection WS2812B LED Strip Light 144pcs/m DC5V photo-2
Addressable Environmental Protection WS2812B LED Strip Light 144pcs/m DC5V photo-3

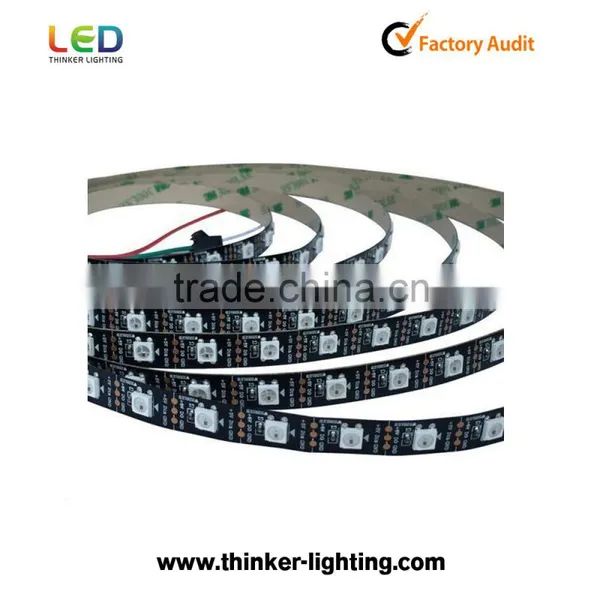

Addressable Environmental Protection WS2812B LED Strip Light 144pcs/m DC5V photo-4
US$ 1 - 10 MOQ: 1 Roll
Key Specifications
Get Latest Price
LED Light Source:
Epistar
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Contact Supplier Request Quote Chat Now
Shenzhen Thinker Lighting Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar
Type Flex LED Strips
Input Voltage(V) DC5V
Lamp Power 34.56W/M
Working Temperature(℃) -20, 45
Working Lifetime(Hour) 50000
Lamp Body Material Copper
Certification CCC, CE, EMC, Energy Star, ETL, LVD, SAA, UL
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name Thinker-Lighting
Model Number TL-WS2812B-144D-DC5V
Product Description

Product Details

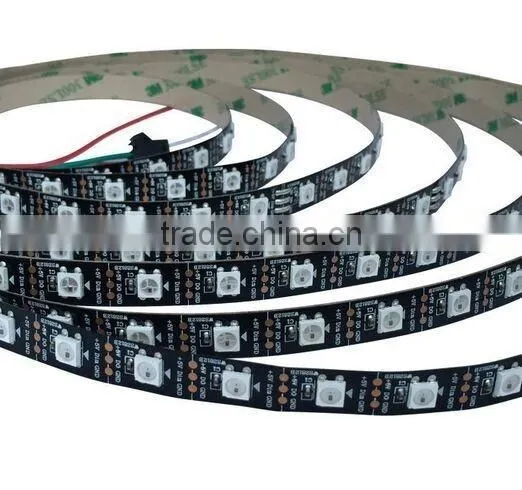

  Addressable WS2812B led strip light use SMD5050 Epistar as light source with WS2811 IC built in .The excellent light and user-friendly designs make LED strip perfect for numerous applications. they can be a good choice for lights for hotels, restaurants, night clubs, coffee/wine bars, shopping malls, various shops, cinemas, beauty centers, office fronts, even lights for house hold kitchens or living rooms, etc.

Model number
TL-WS2812B-30
TL-WS2812B-60
TL-WS2812B-72
TL-WS2812B-144
Input voltage
DC5V
DC5V
DC5V
DC5V
Power
7.2W/M
14.4W/M
17.28W/M
34.56W/M
Number of leds
30led/m
60led/m
72led/m
144led/m
Color
RGB
RGB
RGB
RGB
CRI
80
80
80
80
Led beam angle
120
120
120
120
IP Rating
IP20,IP65,IP67,
IP68 for option
IP20,IP65,IP67,
IP68 for option
IP20,IP65,IP67,
IP68 for option
IP20,IP65,IP67,
IP68 for option

Features and Benefits:

l .Intelligent reverse connect protection, the power supply reverse connection does not damage the IC.
2.The control circuit and the LED share the only power source.
3.Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.
4. Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.
5 Built-in electric reset circuit and power lost reset circuit.
6.Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than 400Hz/s.
7.Cascading port transmission signal by single line.
8.Any two point the distance more than 5m transmission signal without any increase circuit.
9. When the refresh rate is 30fps, cascade number are not less than1024 points.
10.Send data at speeds of 800Kbps.

Applications

car decoration
architectural decorative lighting
archway,canopy and bridge edge lighting
amusement par,theater and aircraft cabin mood lighting
emergency hallway lighting
auditorium walkway lighting

stairway accent lighting

concealed lighting
backlighting for signage letters
channel letter lighting
emergency exit path lighting
cove lighting

Certifications
Packing & Delivery


We choose DHL,FEDEX,UPS,OR TNT for customers'requrements


by sea or by air is ok.

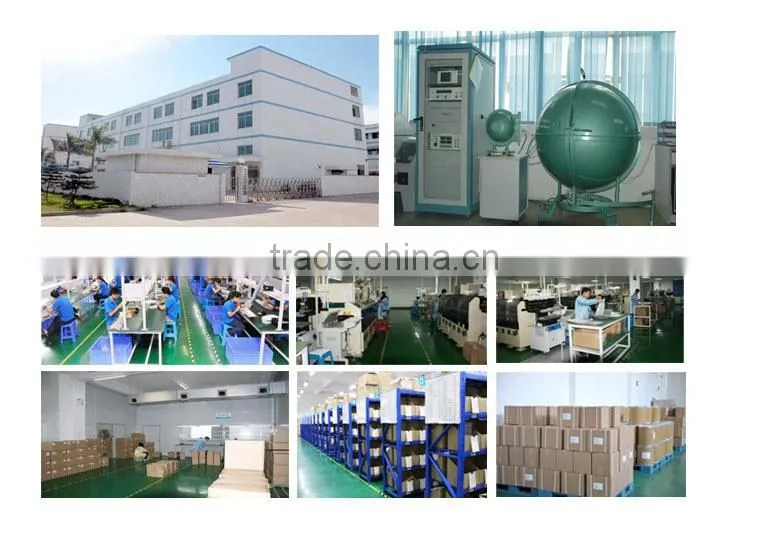

Company Information


Shenzhen thinker lighting Electronic co.,limited founded in 2008 is a comprehensive and high technology enterprise for LED lighting ,we are dedicated to develop led flex strips,led rigidstrips,led downlights,led spot lights,led bulbs,led tubes,led panel lights,they are deeply welcomed in European,American and south east Aisa markets,all our products are designed to save energy and promote environmental protection.


We offer customer integrated service,including pre-sales service and after-sales service,our R&D team handle highly customized designs and offer sincere OEM and ODM services to both demestic and international manufacturers,project traders and agent.

"The future depends on quality,the success relies on detials" is our philosophy target.we hope to set up a long-term partership with you through our high quality products and our sincere service.

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.
