WS2812B Advertising Lighting 60led/m IC Memory Card Led Digital Flexible Strip With 5v CE&Rohs

WS2812B Advertising Lighting 60led/m IC Memory Card Led Digital Flexible Strip With 5v CE&Rohs thumbnail-1
WS2812B Advertising Lighting 60led/m IC Memory Card Led Digital Flexible Strip With 5v CE&Rohs thumbnail-2
WS2812B Advertising Lighting 60led/m IC Memory Card Led Digital Flexible Strip With 5v CE&Rohs thumbnail-3
WS2812B Advertising Lighting 60led/m IC Memory Card Led Digital Flexible Strip With 5v CE&Rohs thumbnail-4
WS2812B Advertising Lighting 60led/m IC Memory Card Led Digital Flexible Strip With 5v CE&Rohs thumbnail-5
WS2812B Advertising Lighting 60led/m IC Memory Card Led Digital Flexible Strip With 5v CE&Rohs photo-1

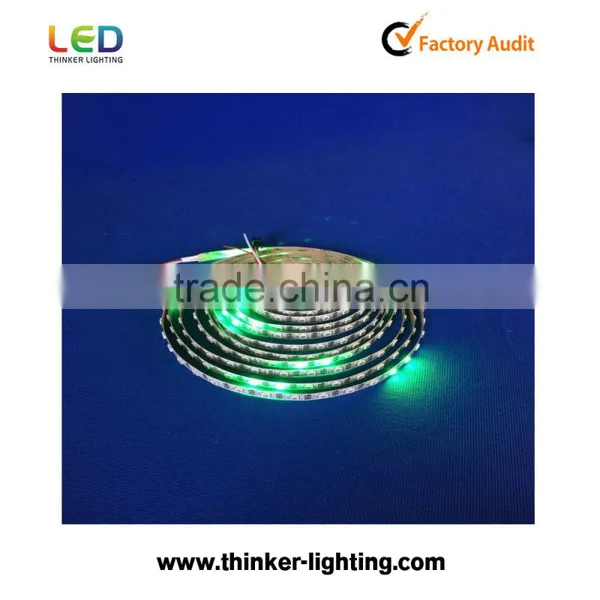

WS2812B Advertising Lighting 60led/m IC Memory Card Led Digital Flexible Strip With 5v CE&Rohs photo-2

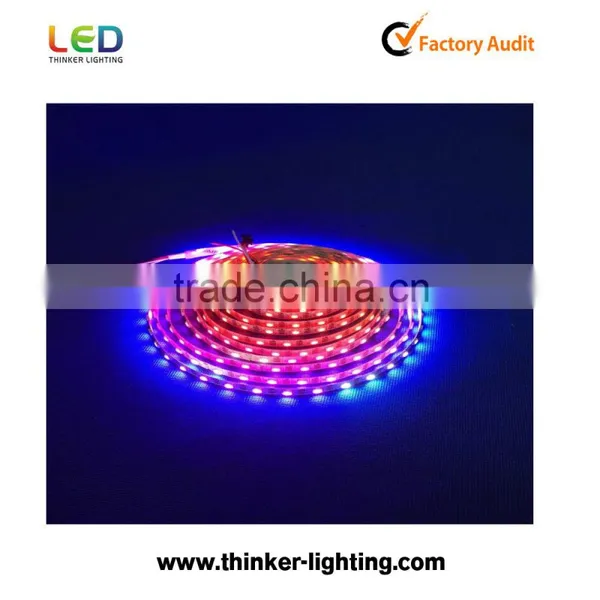

WS2812B Advertising Lighting 60led/m IC Memory Card Led Digital Flexible Strip With 5v CE&Rohs photo-3
WS2812B Advertising Lighting 60led/m IC Memory Card Led Digital Flexible Strip With 5v CE&Rohs photo-4

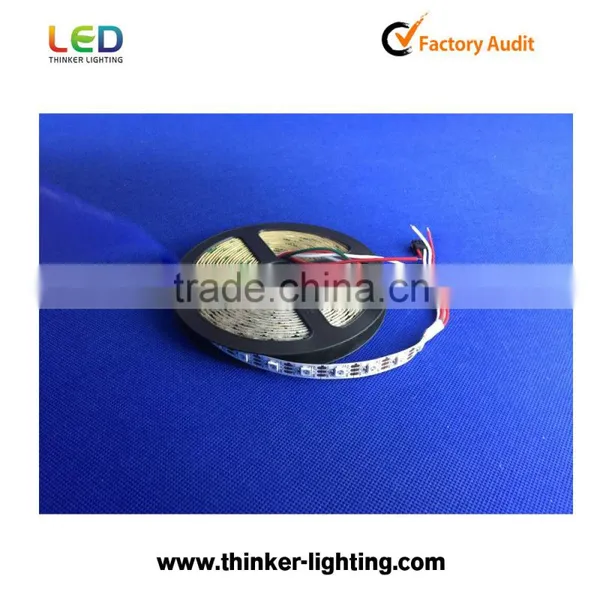

WS2812B Advertising Lighting 60led/m IC Memory Card Led Digital Flexible Strip With 5v CE&Rohs photo-5
US$ 0.5 - 2 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
Epistar
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Contact Supplier Request Quote Chat Now
Shenzhen Thinker Lighting Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar
Type Flex LED Strips
Input Voltage(V) DC5V
Lamp Power 14.4W/M
Lamp Luminous Flux(lm) 22-25LM
Color Temperature(CCT) 2700-7000K
Working Temperature(℃) -20, +45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
Certification BV, C-tick, CCC, CE, EMC, ETL, FCC, FDA, GOST, LVD, SAA, UL, VDE
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name Thinker-Lighting
Model Number TL-WS2812B-60-IP20

 WS2812B  Advertising lighting 60led/m IC memory card led digital flexible strip with 5v CE&Rohs

WS2812B Advertising lighting 60led/m IC memory card led digital flexible strip with 5v CE&RohsWS2812B Advertising lighting 60led/m IC memory card led digital flexible strip with 5v CE&Rohs





Specifications:

Model number  TL-WS2812B-30-IP20
Input voltage DC 5v
Power 7.2w/meter
Number of leds 30leds per meter ,60leds per meter ,144 leds per meter
Color  Warm white,Pure white,Cool white/RGB/Red/Green/Blue/Yellow
CRI >80
Led beam angle 120
IP rating IP20,IP65,IP67,IP68 for option





Features and Benefits:

l .Intelligent reverse connect protection, the power supply reverse connection does not damage the IC.

2.The control circuit and the LED share the only power source.

3.Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.

4. Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.

5  Built-in electric reset circuit and power lost reset circuit.

6.Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than 400Hz/s.

7.Cascading port transmission signal by single line.

8.Any two point the distance more than 5m transmission signal without any increase circuit.

9. When the refresh rate is 30fps, cascade number are not less than1024 points.

10.Send data at speeds of 800Kbps.

l1.The color of the light were highly consistent, cost-effective..



Applications:



l. Full-color module, Full color soft lights a lamp strip.



2. LED decorative lighting, Indoor/outdoor LED video irregular screen.

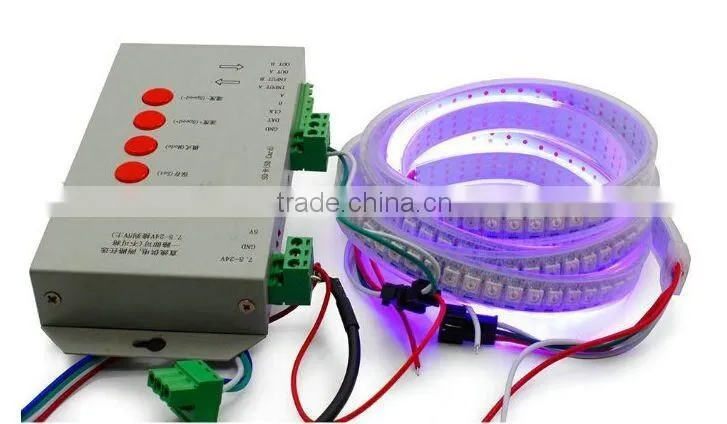

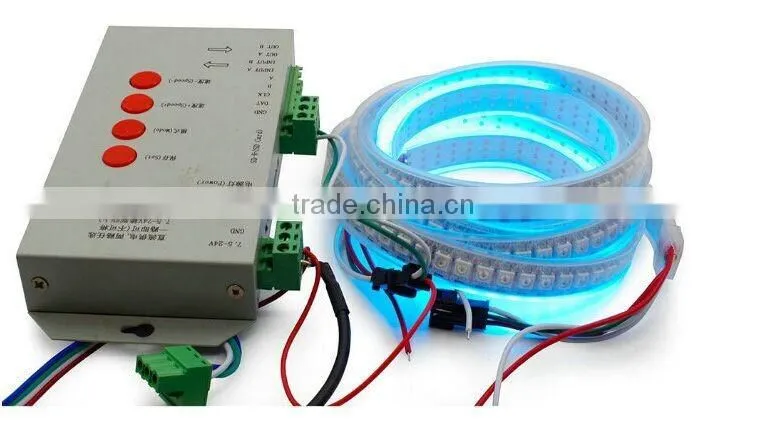

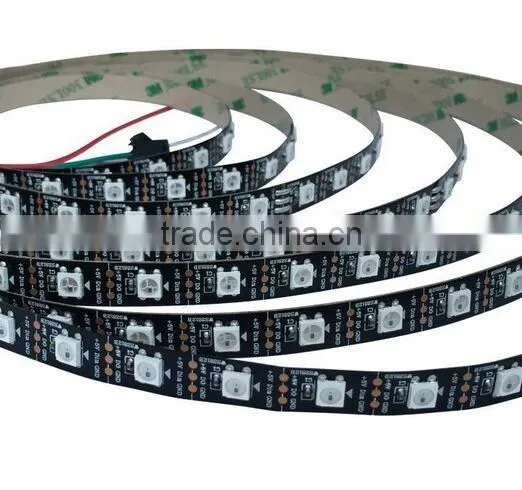

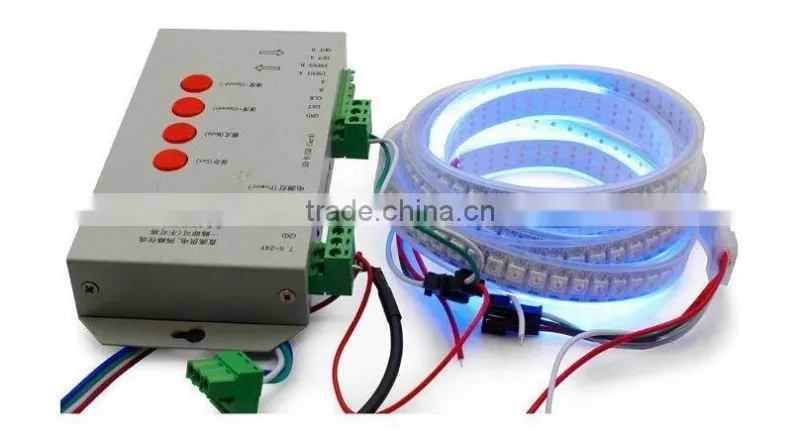

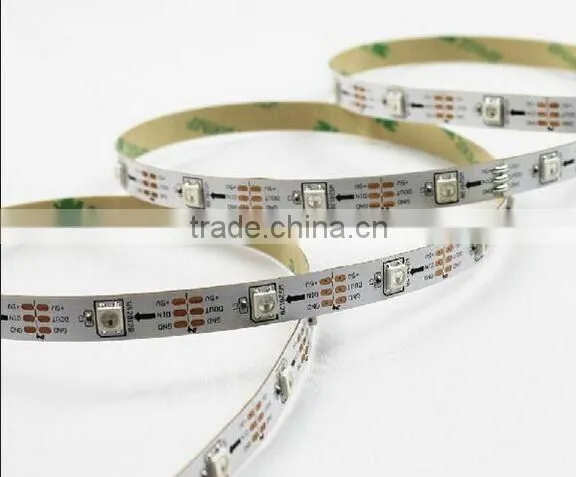

Products pictures:

WS2812B Advertising lighting 60led/m IC memory card led digital flexible strip with 5v CE&RohsWS2812B Advertising lighting 60led/m IC memory card led digital flexible strip with 5v CE&RohsWS2812B Advertising lighting 60led/m IC memory card led digital flexible strip with 5v CE&Rohs





Packing details:













Shipping items:



 WS2812B Advertising lighting 60led/m IC memory card led digital flexible strip with 5v CE&Rohs

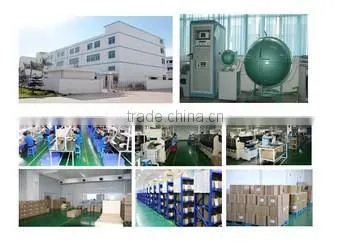

Our factory:

 WS2812B Advertising lighting 60led/m IC memory card led digital flexible strip with 5v CE&Rohs

Thinker lighting electronic co,limited

Tel:+86-755-29071562n1517972329rlqx

Website:
Whatsapp:+8613631569953
Address : No.20,Xinglang Road,Xingguang Village,Huangjiang Town,Dongguang city,Guangdong,China
