Ceramic liner high alumina pipeline brick
1.High quality Al2O3 as main material
2. High purity
3.Good wear resistance
4.Good corrosion resistance
5.High density, high machanical strength and so on.
6.high abrasion
7.strong practicability
The microcrystalline wear-resistant alumina lining brick can be divided into rectangular brick,trapezoidal brick and irregular brick .The product has the high hardness ,density, low wear,good neat,anti-corrosion ,used for ball mill wear-resisting lining,widely used in ceramic,cement,paint,chemical,pharmaceutical ,coating etc. effectively improve the grinding efficiency,reduce the grinding cost, as well as pollution .
Alumina lining brick specifications: H40, H50, H60, H70, H90 and the corresponding half brick and bevel brick.
Alumina lining chip/ lining plate specifications:10x10x(4-10),17.5x17.5x(2-7), 120x80x(10-20), 150x100x(10-20), etc. According to customers’ requirements, can customized wear resistant lining board with holes, curve and terraced wear resistant lining board etc.
Advantages
1. alumina mill linings (alumina bricks and tiles) are the perfect solution for protecting grinding ball mills from wear, as they allow for a constant use over an extended period of time without any routine maintenance.
2. High strength, high density, high abrasion, entire specification, strong practicability. 3. It can be used for ball mill, mixing mill, vibration mill, sand mill, etc.

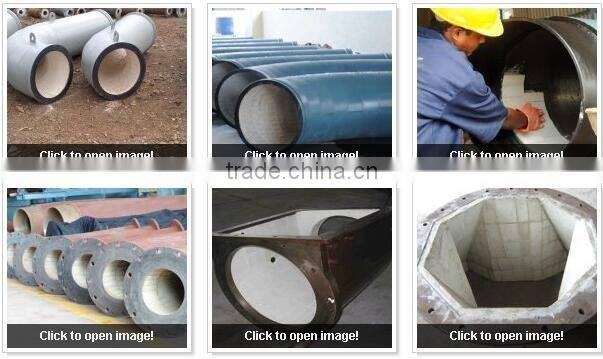

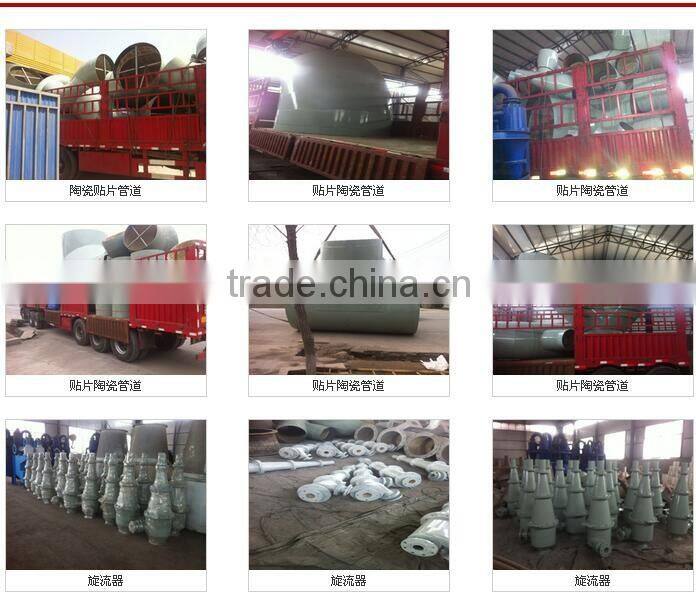

Application
Ceramic complex pipeline of glass fiber reinforced plastics,
Alumina ceramic liner for cement cyclone,
Metal complex pipeline and elbow,
Abrasive liner for down spouting,
Abrasive liner for pipeline,
Preheater bracket,
Abrasive wheel of powder.
Technical datas:
Products |
92 Series |
95 Series |
Alumina Content (%) |
≥92 |
≥95 |
Moh’s Hardness |
9 |
9 |
Water absorption |
0.38 |
0.41 |
Fracture Toughness(MPam½) |
3.56 |
3.97 |
Bending Strength (Mpa) |
267 |
326 |
Density (g/cm3) |
3.58 |
3.63 |
HV Hardness(kgf/mm2) |
904 |
1140 |
Comprehensive Strength(MPa) |
1150 |
1295 |
Porosity(%) |
0.930 |
0.930 |
Jet impingement abrasion |
≤0.50/cm3 |
≤0.50/cm3 |
Color |
White |
White |

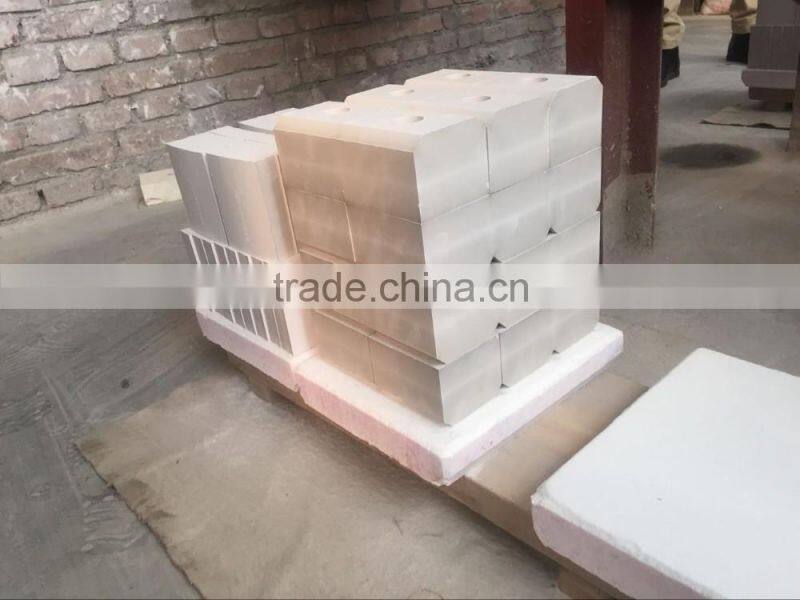

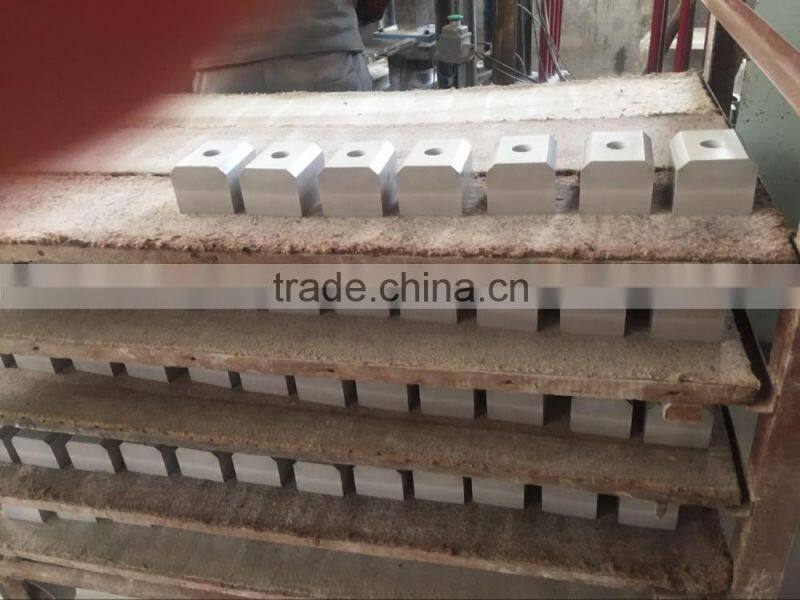

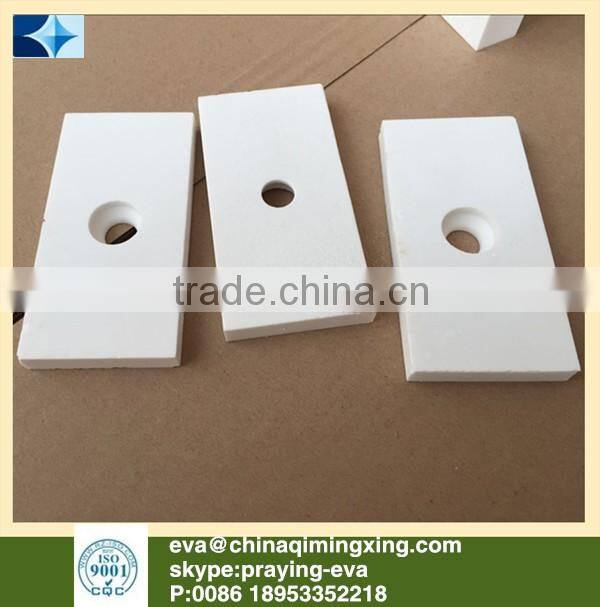

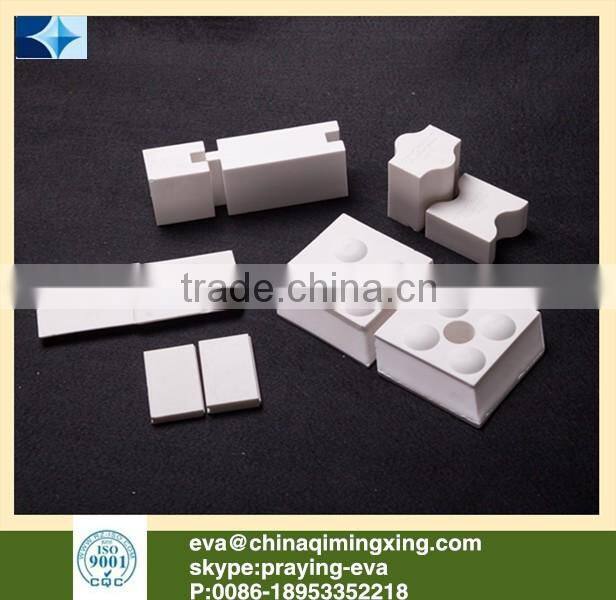

Item Picture:
Item name: |
Ceramic liner high alumina pipeline brick |
Origin: |
China |

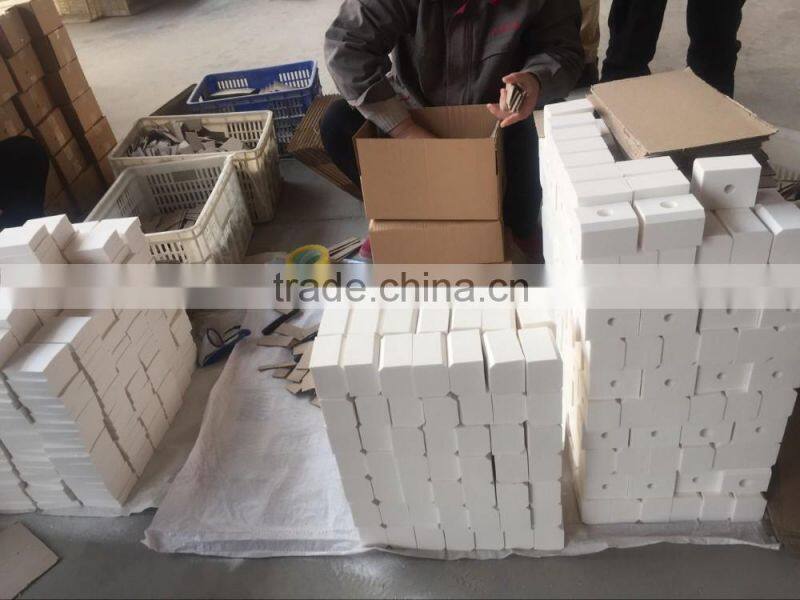

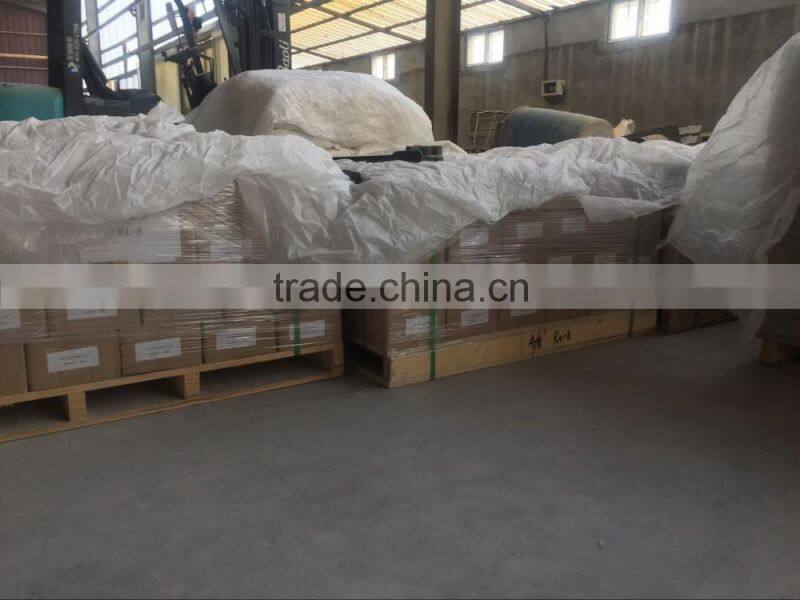

Packaging: |
Ctn box/wooden or plastic pallet |
MOQ: |
1tons |
Delivery time: |
10-25days against the deposit |
Payment term: |
T/T or L/C at sight |
Sample time: |
Available in any time |

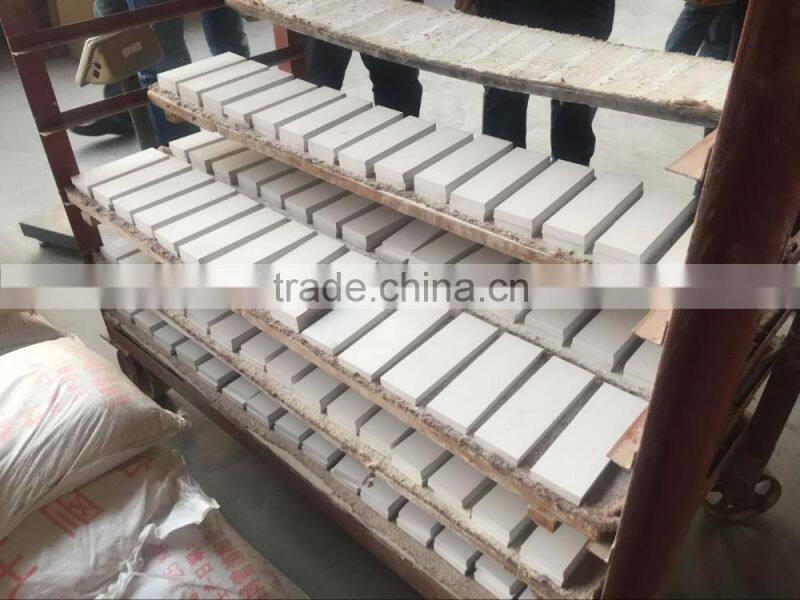

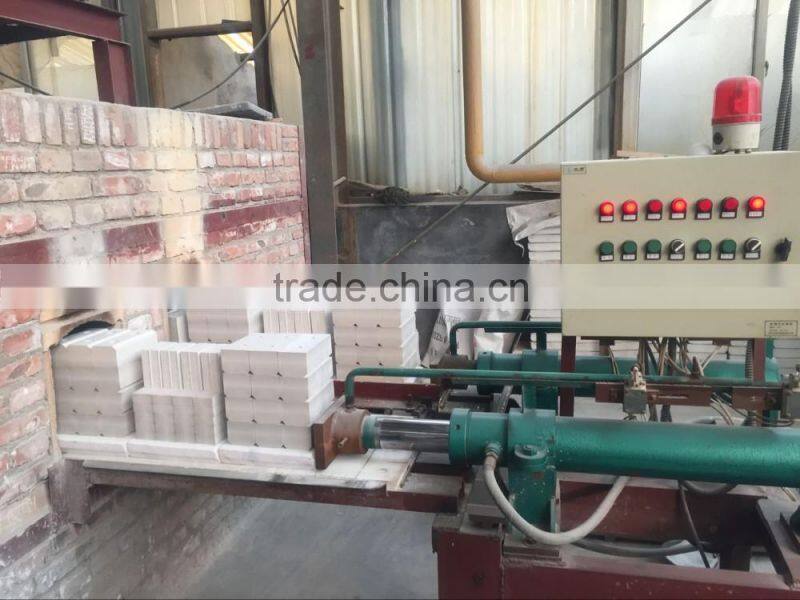

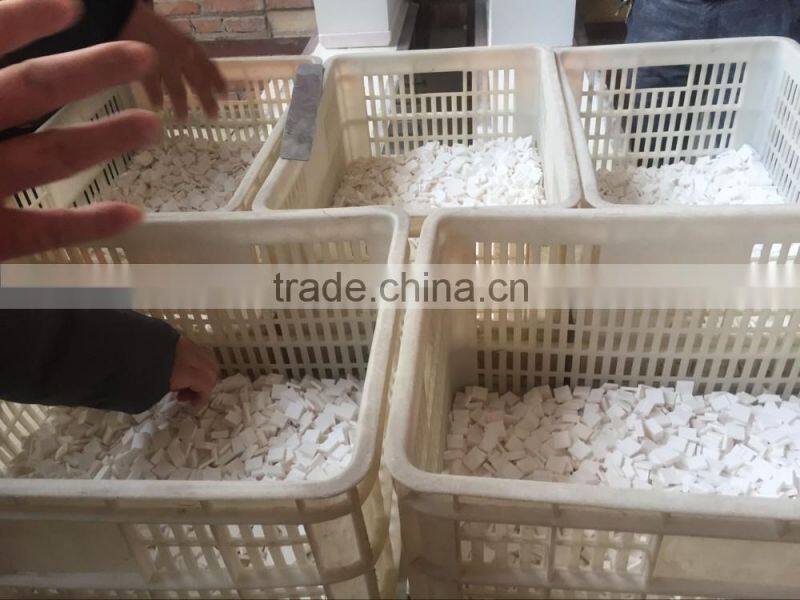

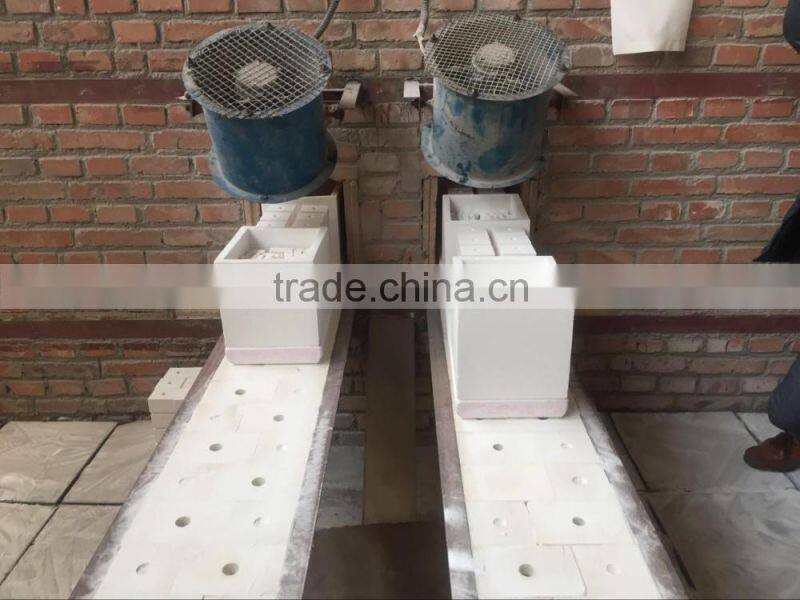

Production process:
1. All products are 100% tested before the shipment, to ensure the good quality.
2. We're responsible for the claims caused by the quality.
Feel free to contact us: chinaqimingxing(at)gmail(dot)com and you will get the best ceramic beads and balls with excellent service, facilities and know-how of world producers.
We offer a full range of ceramic balls. Different types suitable for different applications according to customer requirements differ in chemical composition, the density and size of single fractions. We offer balls of zirconium-oxide, and zirconium-silicate and from zirconium glass.
These balls are used in the most branches of industry.
