12V 2.4G LED Wireless Rainbow Touch RGB LED Controller

12V 2.4G LED Wireless Rainbow Touch RGB LEDController

WiFi LED controller

WiFi-LED controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer demand, it is one type controller which integration the newest wifi technical in the market. It makes the LED control more convenience, more hommization. We can use an Android system or IOS
system mobile phone to install control software, then it can control LED, this is the wishes of every customer.
Use WiFi technology can make our control range more wider, can get rid of narrow space constraint, in
building can control more than 50m, in outdoor can control more than 100m.

Remote control technical parameters

1:Working temperature:-20-60℃
2:Power supply method:AAA*3
3:Supply voltage:1.5V*3
4:Standby power:0.015mW
5:Standby current:3uA
6:Working current:200uA
7:Emission current:10mA
8:Remote control distance:about 50m
9:Standby time:6 months

Software technical parameters

1:Name:Magic Color 1.0
2:Runtime platform:Android version support Android system, IOS version support IOS
      system, equipment must have WiFi function.
3:Byte: Android version(622K),IOS version(581K).
4:Language: English
5:Category: communications
6:Free, green, no plug-ins

Controller technical parameters

1:Working voltage: DC5--24V
2:Output control: can flexible control 3 channel, 2 channel, 1 channel LED lamps.
3:Output current: 4A*3
4:Connect mode: common anode
5:Packing size:L215*W165*H55(mm)
6:External dimension: L107*W65*H30(mm)
7:Net weight:340g
8:Gross weight:480g
9:Receiving sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g
OFDM(-15dBm)

Shipping Items:

We choose DHL,Fedex,UPS or TNT according to customers requirements; By air or by sea is ok.

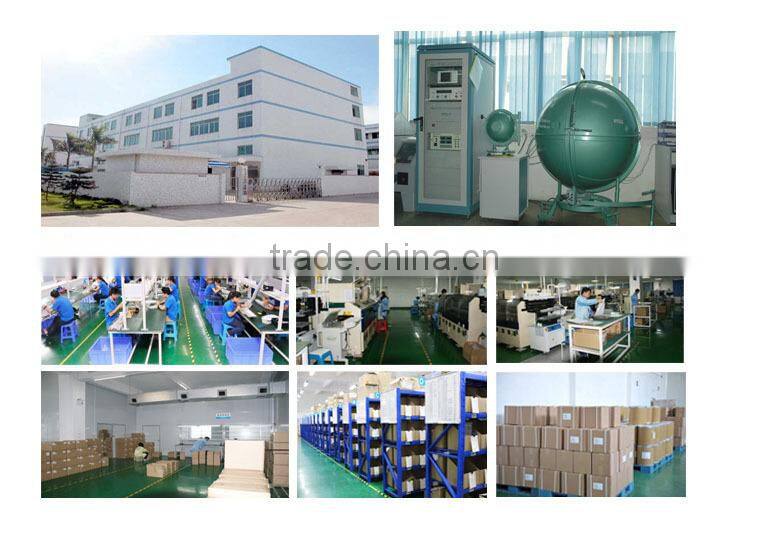

Our factory view
