Laundry Detergent Production Line

Laundry Detergent Production Line photo-1
Laundry Detergent Production Line photo-2
Laundry Detergent Production Line photo-3
Laundry Detergent Production Line photo-4
US$ 16,079 - 18,491 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
JINMEITU
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port Shanghai port Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name JINMEITU
Voltage 220V/380V
Dimension(L*W*H) Depeneds
Processing Types Liquid
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Automatic automobile care products, detergent product, liquid product producing line especial for windshield cleaning fluid, glass cleaner, engine coolant, antifreeze liquid, automobile detergent, almighty detergent, tyre wax and other room temperature stirred liquid products. Widely used in auto repair workshop, auto product factories, auto beauty shop, automobile refitted shop and so on.
Easy operation. Two workers can produce 5-6 MT automobile products in 8 hours.
All the product formula of products mentioned above , are free to customers, which are also used in our production in China.




Advanced Small Size Water Treatment
RO Membrane Reverse Osmosis System
RO membrane is imported from USA . Design with a individual filter for RO membrane protecting.
Water Outlet Grade
Drinking water standard
Capacity
0.5MT/ H
No. of Tanks
3
Material of Tank
Glass fiber reinforce plastic

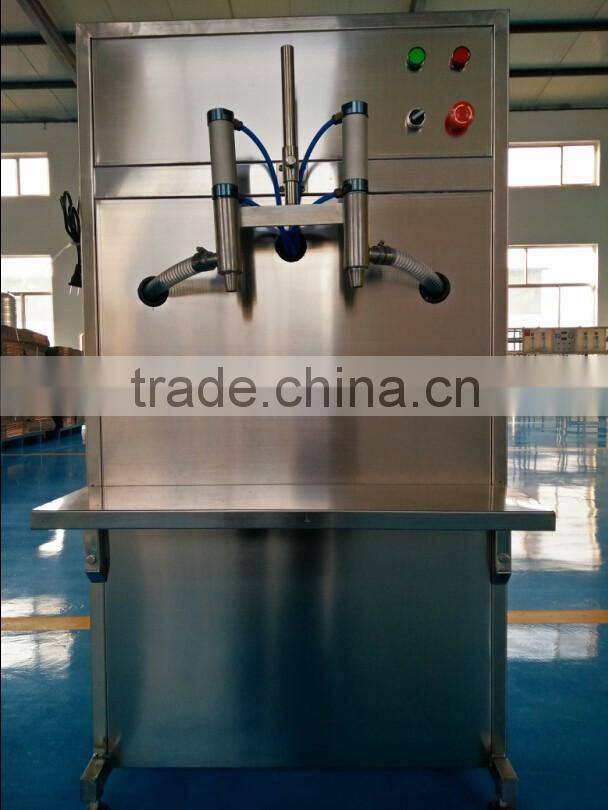

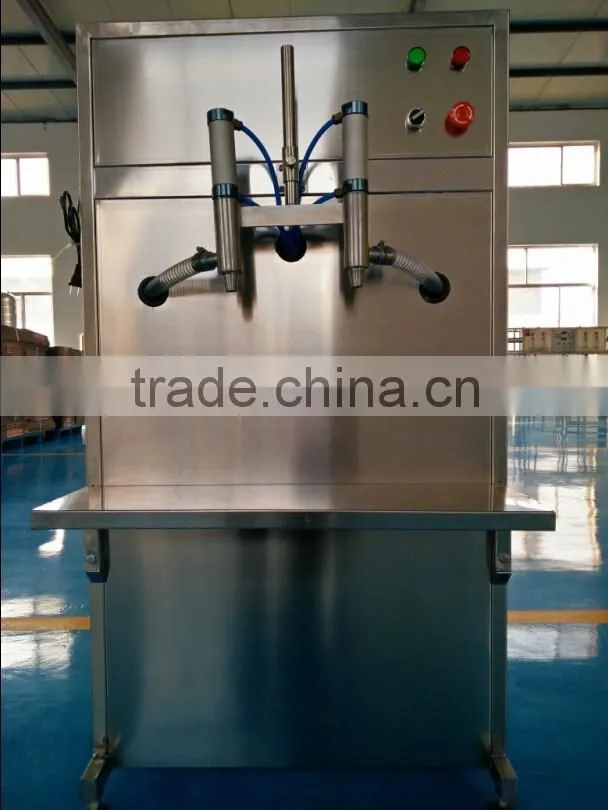

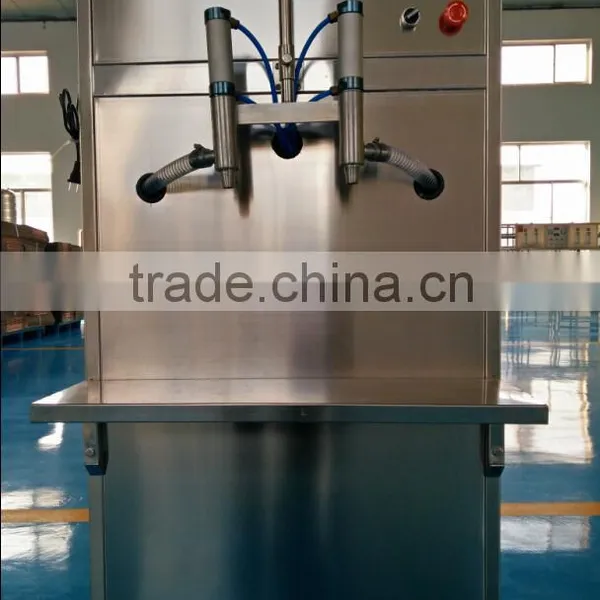

2 Taps Piston Type Filling Machine
2 taps for filling
Piston design, special for mucus products filling. 2 taps for filling, 2 times filling efficiency




Advanced Two-stage Three Layer Emulsification Reactor
Function
self-feeding, automatic discharging, self-cleaning, automatic water-adding, automatic heating and temperature control
Emulsification Device Inner
Driven by a high-speed electric machine upper
Emulsification Pump under
Suck matierials from reactor and emulsify them then immit them back to reactor
Layer
3




Multifunction Product Tank
Material
PE
Volume Capacity
1000L
Quatity
4
Function
Designed with a differental motor upper and a stirring blades inside also could be used as a agitator in the producing of other automobile products such like windshield cleaning liquid, glass cleaner, engine coolant, antifreeze liquid, automobile detergent etc.
Automatic Ink Printer
Operation Mode
Automatic or Manual
Printing Speed
0-60pcs/min
Aluminum Foil Sealing Machine
Sealing Spead
0-50pcs/min

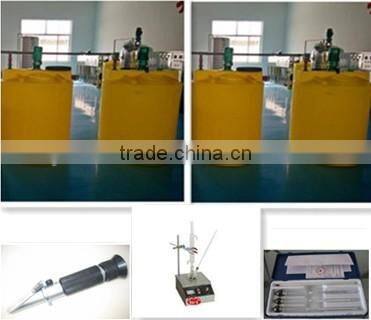

Quality Inspection Device
devices include
Freezing point detector, Boiling point detector, Alcohol meter
Detailed Images

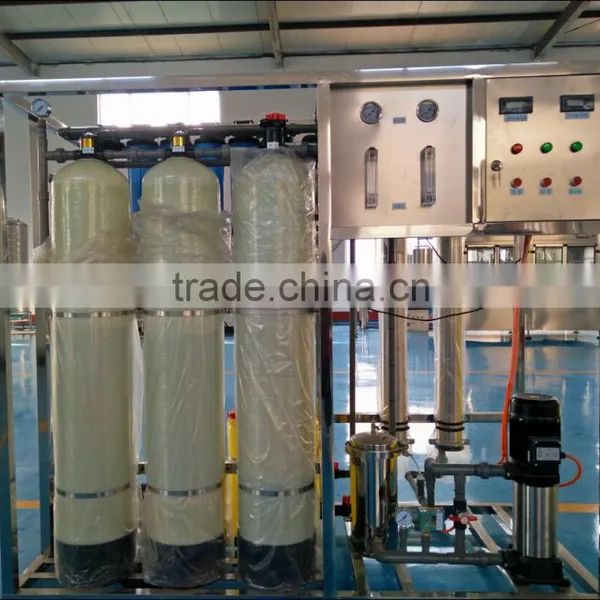

Advanced Small Size Water Treatment

* Large particulate matters, iron and manganese are filtered in the first glass fiber reinforce plastic tank
* Peculiar smell is eliminated in the second tank.
* Sodium, calcium, magnesium, and other little microelement will be filtered in the third tank by resin inner. Water after treating flow through six blue filter bottles with PP cotton.
* Three tanks designed with self-cleaning function, no need to disassemble them for cleaning.
* Designed with RO rambrabe osmosis reverse system brought from USA. Water will be highly purified here, grade up to drinking satandard.
* One filter before RO reverse osmosis system for protecting.
* Two water inlet pressure gages, display of conductivity of water inlet and outlet, display of flowmeter of unqualified and qualified water, more easy to operate.

*  RO membrane self-cleaning function, realize the repeated use of RO membrane.

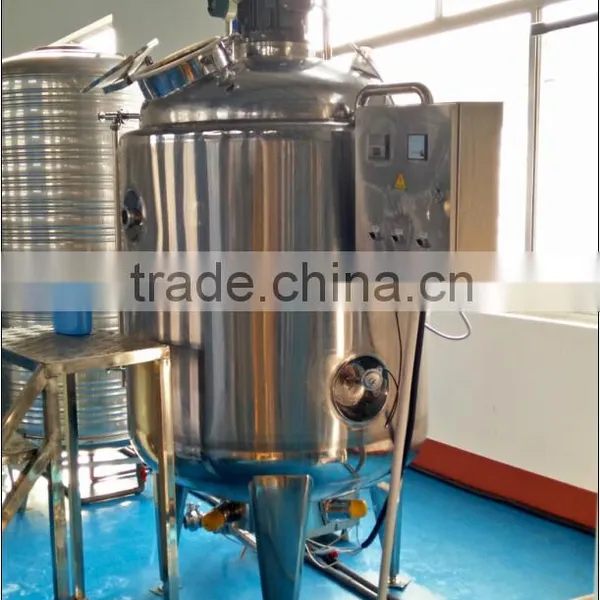

Two-stage Three Layer Emulsification Reactor

*  Main Functions: self-feeding, automatic discharging, self-cleaning, automatic water-adding, automatic heating and temperature control.
*  Three layer design: Inner layer which contact with materials is made of food grade SUS316 stainless steel, excellent performance in acid and alkali resistance. Longer useful life.Medium layer is made of SUS304 stainless steel for heat transfer oil. This design will keep temperature of inner layer in higher level in longer time. No need to reheat materials when you feed every time. Save more power energy and time, reducing cost.

*  Two-stage emulsification design: one stage is the emulsification device inner the reactor , and the second stage is a emulsification pump under the reactor. They work in the same time , ensure the emulsification and save much more time.

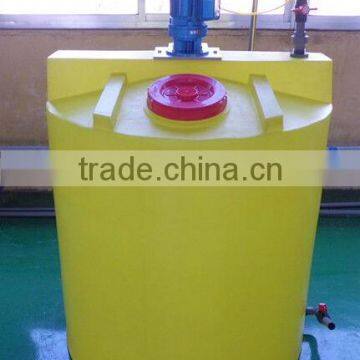

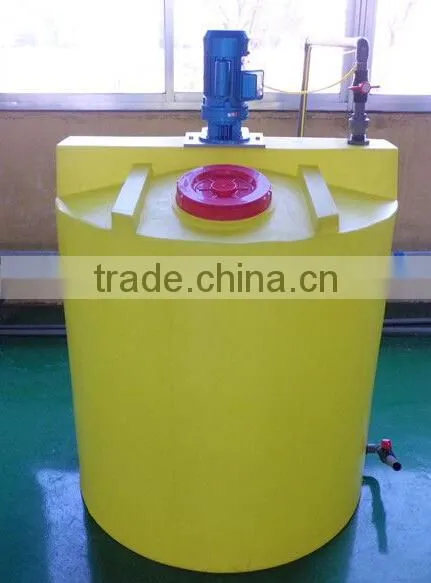

Multifunction Product Tank

*  Made of PE materials, good performance in acid and alkali resistance.

*  Longer useful life.

*  1000L volume capacity one time for each product tank.

*  Easy to clean and feeding.

*  Designed with a differental motor upper and a stirring blades inside also could be used as a agitator in the producing of other automobile products such like windshield cleaning liquid, glass cleaner, engine coolant, antifreeze liquid, automobile detergent etc.


Ink Printer

* Printing speed could be adjustable as need.
0-60pcs/min
* Operation mode: Automatic or manual

Aluminum Foil Sealing Machine

* Electromagnetic heating design
* Sealing speed could be adjustable as need. 0-50pcs/min

Packing & Delivery

* Prepare machines according to the packing list.

* Debug all the spare parts.

* Assemble equipments.

* Set up new machines.

* Twine your machines with stretch film first.

* Packing all your machines with composite board case.

* Delivery with packing list

* Or packing as requests by customers.
