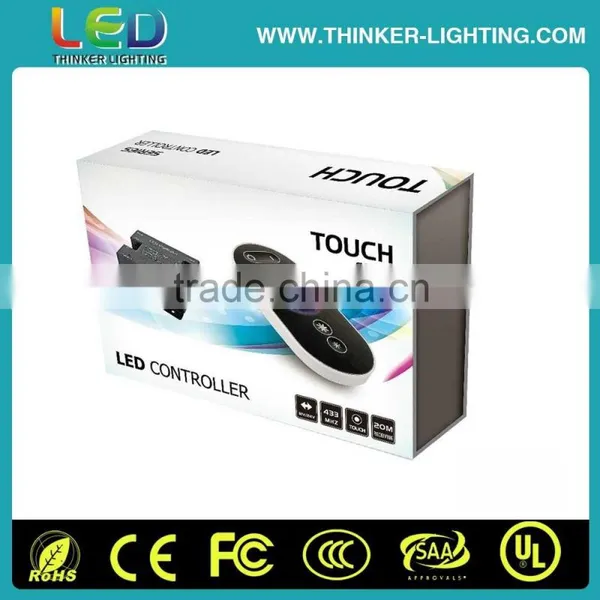

Hot sale rgb led rf controller gift box
FEATURES OF LED CONTROLLER
1. Capacitance and wireless touch technology, no mechanical wear, overcoming the lifespan problems caused by Physical buttons.
2. Visible color wheel, touched by finger, then What you see is What you get.
3. Auto adaptation of 12-24V DC working voltage and with input polarity protection function
4. The newest PWM control technology, delicate light performance, no flicker.
5.High power dimmer control MOS tube with stable and reliable performance, strong.power-drive ability with max. 18A of 3 channels.
6.Wireless RF control, free direction and long distance, more than 20m.
7. Multi-type memory functions for color, modes, speed, and brightness.
8.Smart appearance, standard input and output port, easy installation and high cost performance.
Technical parameters
1.Cotroller
| Supply voltage | 12V-24VDC |
| Loadable Current | 6A*3CH |
| Output Channels | 3CH |
| Output Power | 216W/432W(12V/24V) |
| Controller Method | RF |
| Connection Mode | Common Anode |
| Changing Number | 18(7 static color modes,11dynamic chaning modes),1 wheel (64 color) |
| Dimmering Mothod | PWM |
| Grey Steps | 256 steps per channel |
| Protection | The power input polarity protection |
2.Remote
| Working voltage | 4.5VDC |
| Remote Control Way | RF |
| Launch Frequency | 433Mhz |
| Controlable Distance | More than 20 meters |
| Battery Types | 3 pcs AAA type batteries |
| Standby power | 0.08mW |
| Transmission power | 6mW |
| Power consumption | 6mW |
| Key Number | 6 touch keys,1 touch wheel |
Products Picture :
